Merlin Gerin P25M Circuit Breaker
New
In stock2 unitsReady to ship
Circuit Breaker
The Schneider Merlin Gerin P25M is a 3 pole thermal magnetic miniature circuit breaker with 6.3 A rating and K curve performance, suitable for motor protection in AC systems up to 690 V.3BreakerCircuitComponentsCurveElectricGerinIndustrialKMagneticMCBMerlinMiniaturemotorMulti9P25MPoleProtectionSchneiderThermal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

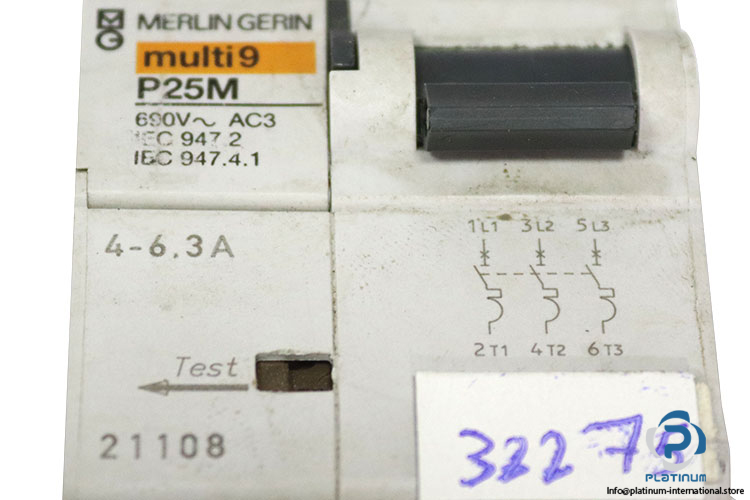

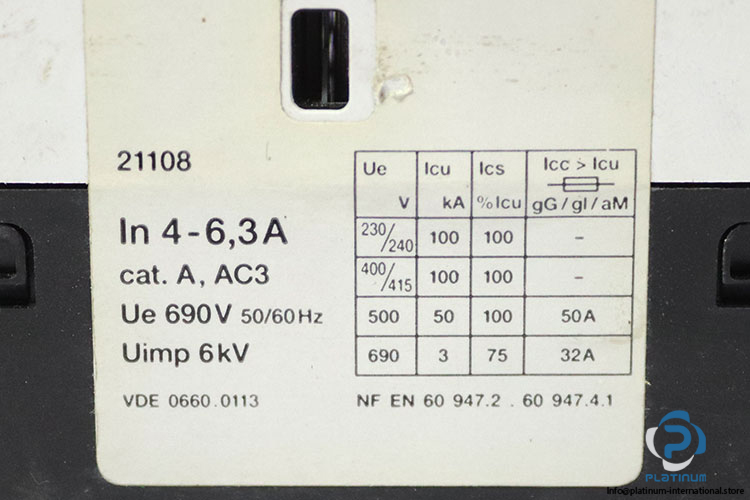

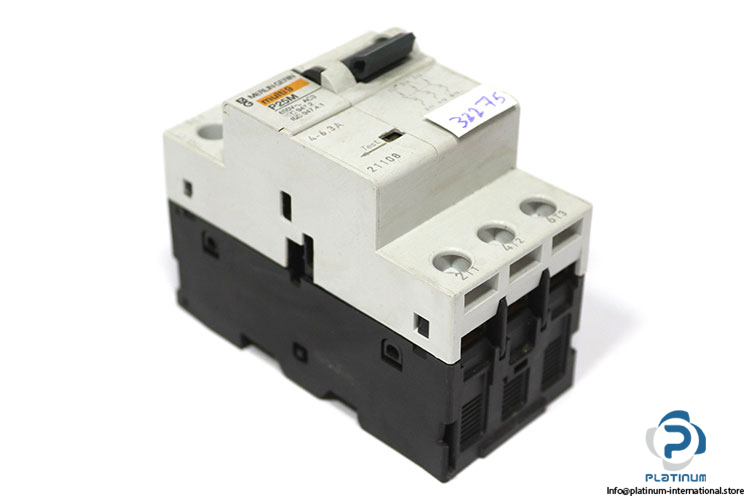

Schneider Merlin Gerin P25M Circuit Breaker
The Schneider Merlin Gerin P25M is a reliable miniature circuit breaker designed for motor protection applications. With thermal magnetic trip technology, wide voltage compatibility, and K curve characteristics, it ensures safe and efficient operation in industrial electrical systems.
Manufacturer: Schneider Merlin Gerin
Type: Circuit Breaker
Model: P25M
ID Number: 21108
| Range of Product | P25M |
| Range | MULTI9 |
| Product or Component Type | Miniature circuit breaker |
| Device Short Name | P25M |
| Device Application | Motor |
| Poles Description | 3P |
| Number of Protected Poles | 3 |
| Rated Current | 6.3 A |
| Network Type | AC |
| Trip Unit Technology | Thermal magnetic |
| Curve Code | K |
| Utilisation Category | AC3 according to IEC 60947-2 |
| Suitability for Isolation | Yes according to IEC 60947-2 |
| Network Frequency | 50 or 60 Hz |
| Rated Operational Voltage | 230 to 240 V AC, 400 to 415 V AC, 440 V AC, 500 V AC, 690 V AC |
| Magnetic Tripping Limit | 12 times In |
| Rated Insulation Voltage | 690 V AC according to IEC 60947-2 |
| Mounting Mode | Clip-on |
| Mounting Support | 35 mm DIN rail |
| 9 mm Pitches | 5 |
| Height | 89 millimeters |
| Width | 45 millimeters |
| Depth | 70 millimeters |
| Operating Altitude | 2000 meters |
| Ambient Air Temperature for Operation | minus 20 to 60 degree Celsius |
