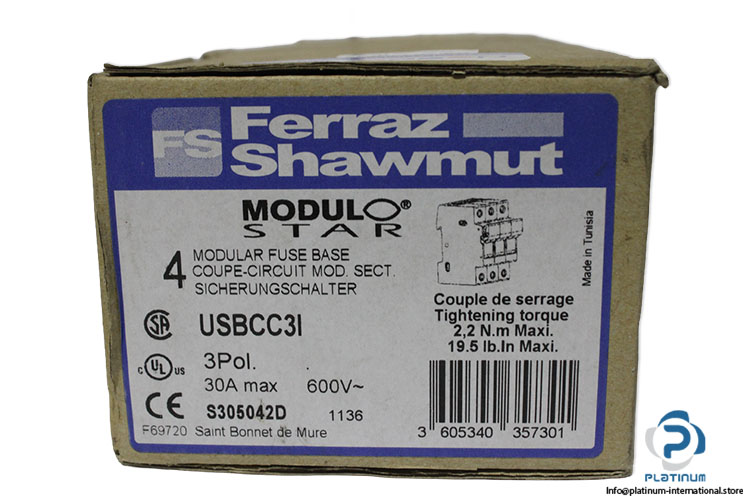

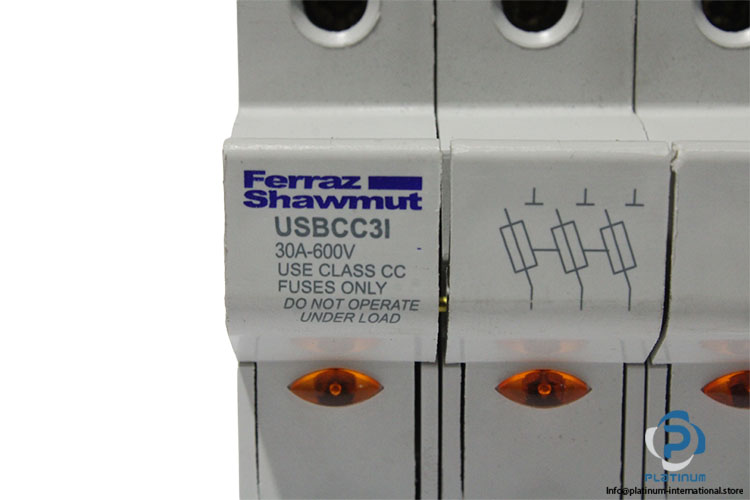

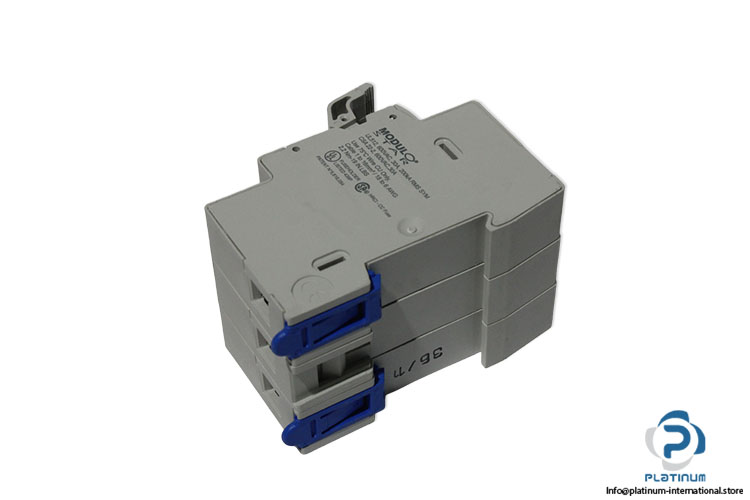

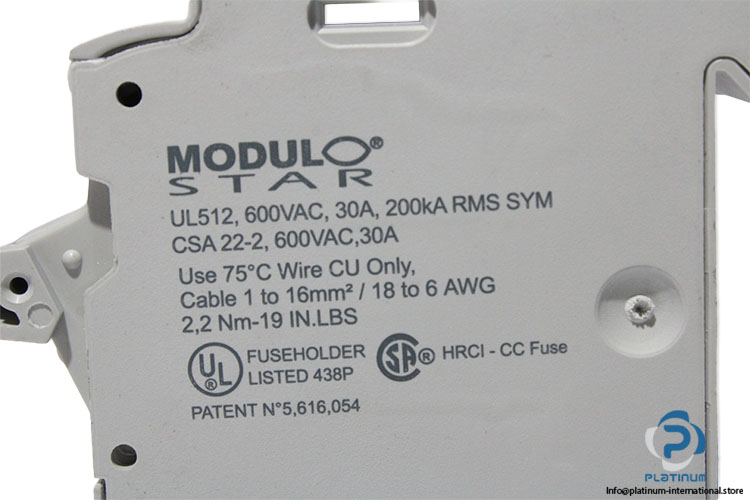

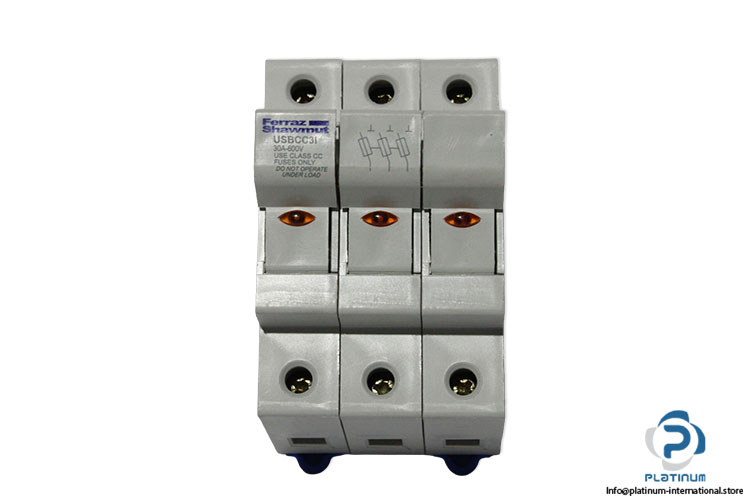

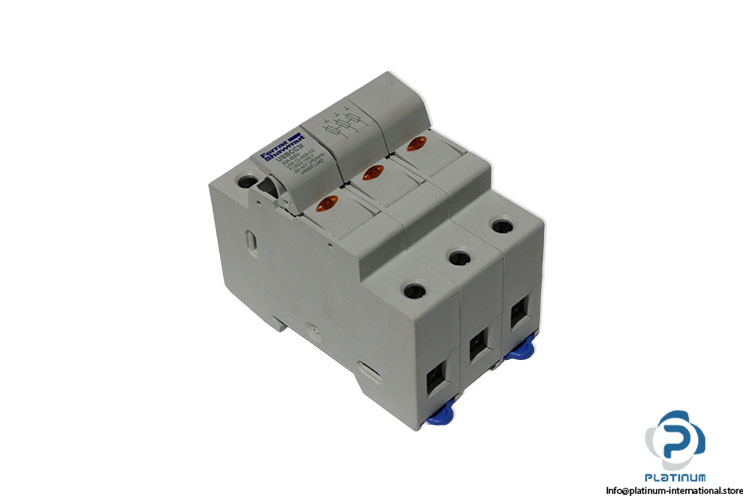

Mersen USBCC3I Modular Fuse Base
New
In stock3 unitsReady to ship
Modular Fuse Base Triple-pole MERSEN modular fuse base for Class CC fuses, rated up to 600 V AC and 30 A, designed for industrial electrical protection and power distribution applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Code | S305042D |
| Design | USBCC triple pole |
| Size | Class CC fuse-links |
| Voltage Rating | 600 V AC |
| Rated insulation voltage | 600 V |
| Current Rating | max. 30 A |
| Interrupting Rating | 200 kA RMS Sym |
| Number of poles/phases | 3 |
| Fuse Class | Use Class CC Fuses Only |
| Wire/Cable Range | 1 to 16 mm² / 18 to 6 AWG (75°C Wire CU Only) |
| Tightening Torque | max. 2.2 N·m |
| Indication System | without indicator |
| Degree of protection | IP 20 |
| Operating temperature | -25 to 60°C |
| Certifications | UL, CE, CSA |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093656 |
| Weight | 0,18 |
