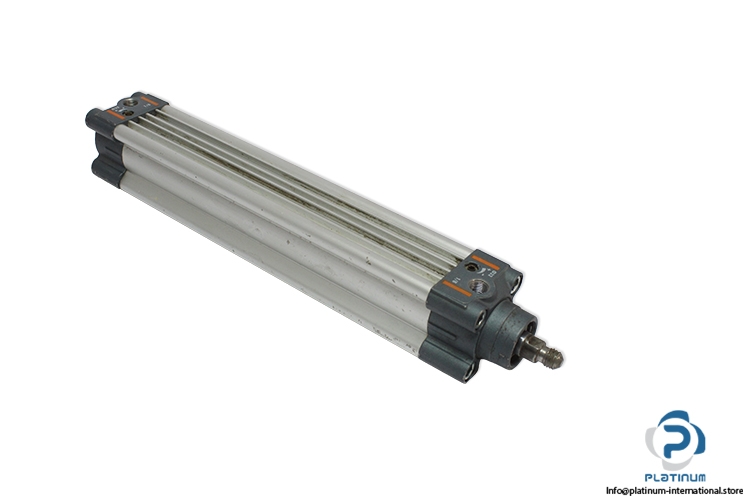

Metal Work 1219320175CN Pneumatic Cylinder
Pneumatic Cylinder
Metal Work double-acting pneumatic cylinder with 32 mm piston diameter and 175 mm stroke, ISO 16552 compliant for industrial automation.Metal Work 1219320175CN Pneumatic Cylinder
A high-quality pneumatic cylinder manufactured by Metal Work, designed for reliable linear motion in industrial automation systems. Built according to ISO standards, this double-acting cylinder ensures smooth operation, precise control, and long service life in demanding pneumatic applications. Manufacturer: Metal Work
Type: Pneumatic Cylinder
Model: 1219320175CN
Recommendation:
This pneumatic cylinder is ideal for automated machinery, assembly lines, and motion control applications requiring reliable linear actuation. For optimal performance and system integration, it is recommended to use this cylinder with compatible Sensors for position feedback and high-quality pneumatic components such as valves and air preparation units available at Platinum International.
| Working Fluid | Air |
| Stroke Length | 175 mm |
| Piston Diameter | 32 mm |
| Maximum Operating Pressure | 10 bar |
| Piston Rod End | Male Thread (One Side) |
| Mode of Operation | Double Acting |
| Frame Shape | Square |
| Certificate | ISO 16552 |
| Pneumatic Connection | G 1/8 |
