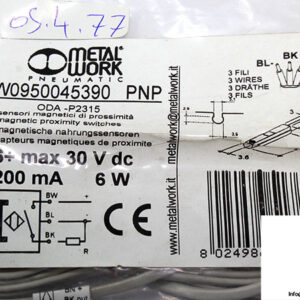

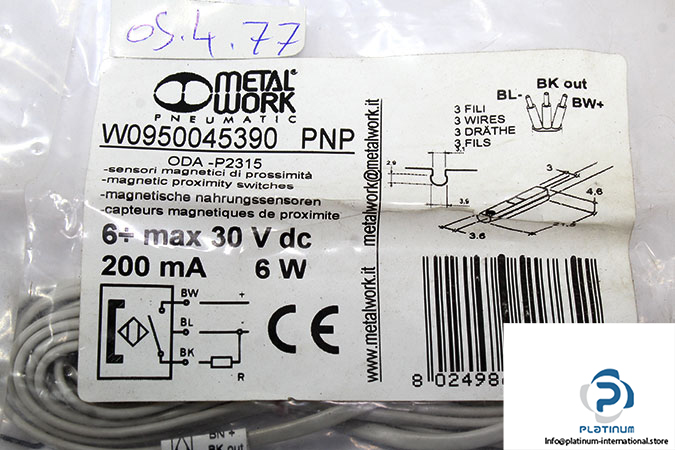

Metalwork W0950045390 Magnetic Sensor

Manufacturer: METALWORK

Type: Magnetic Sensor

Model: W0950045390

MRN: ODA-P2315

Magnetic Sensitivity: 2.8 mT ± 25%

Max. Repeatability: 0.1 mT

Operating Voltage: 6 … 30 V DC

Electrical Design: PNP

Switching Output: Normally open

Max. Current Rating: 200 mA

Power Rating: 6 W

Connector type: Cable

Dimensions: 3.6 x 4.6 x 21.5 mm

Housing: Cylindrical

Housing Material: PET + AISI 303

Operating Temperature: -10 … 60°C
