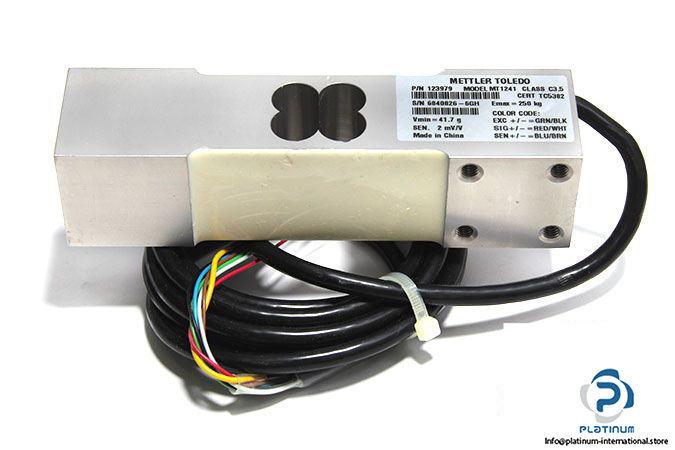

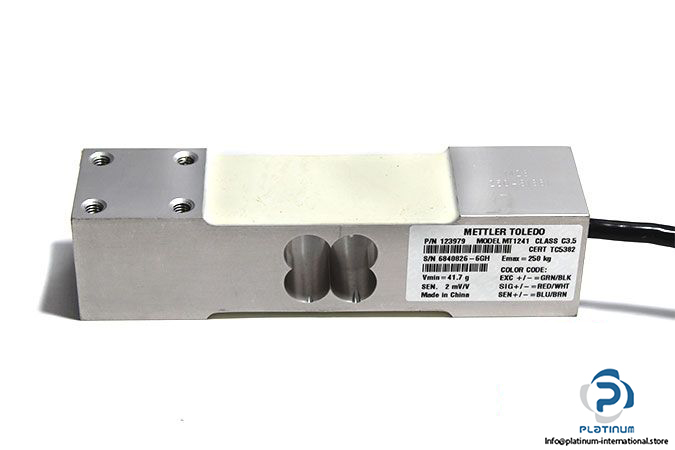

Mettler Toledo MT1241 MAX 250 KG Single Point Load Cell

Manufacturer: METTLER TOLEDO

Type: Single Point Load Cell

Model: MT1241

Part No: 123979

The MT1241 load cell features:

• OIML R60 C3 approval
• NTEP 5000 III S/M approval
• ATEX Zone 1/2 and 21/22 approvals
• Off-center load compensation (R76)
• 400×400 mm platform size
• IP67 protection class
• Passivated aluminum
• 30-250kg capacity range

Maximum weight limit (E max): 250 kg

Output Voltage: 2 ± 0.2 mV/V

Output Resistance: 350 ± 4 Ω

Grade: C3

Temperature Range: -40…+65 °C

Protection Class: IP67

Weight: 0.76 kg
