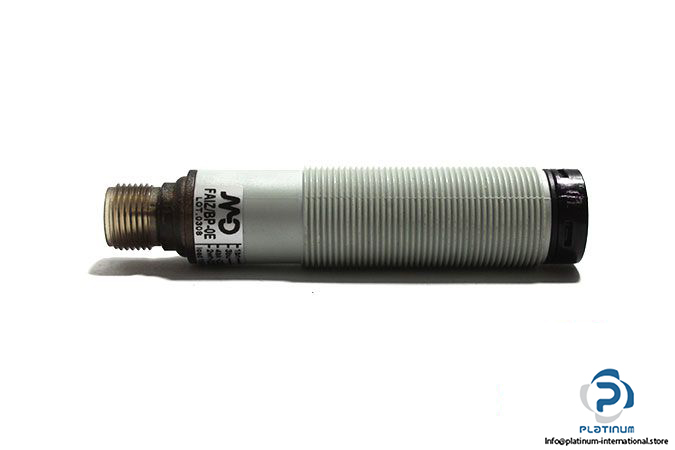

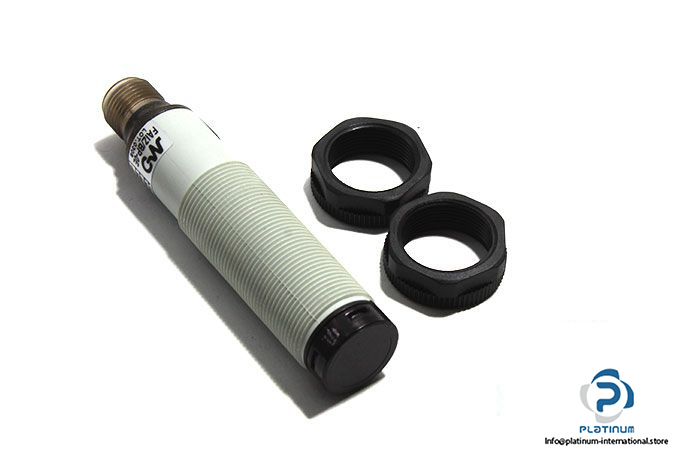

Micro Detectors FAIZ/BP-0E Photoelectric Sensor

Manufacturer: M.D. Micro Detectors

Type: Photoelectric Sensor

Series: FA

Model: FAIZ/BP-0E



Function: Through-Beam

Adjustment: Receiver

Nominal Sensing Distance: 20 m

Emission: Infrared (880 nm)

Operating Voltage: 10 … 30 V DC

Load Current: 100 mA

No-Load Supply Current: 25 mA

Output Type: PNP (NO + NC)

Power on Delay: 200 ms

Switching Frequency: 250 Hz

Ambient Temperature: -25 … 70 °C

Degree of Protection: IP67

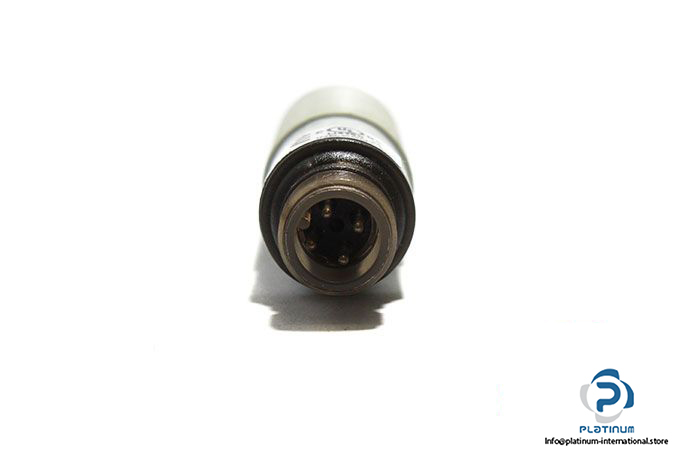

Connection: Axial Plug Exit (M12x1 4-Pin)

Housing: PBT (Plastic)

Optic Material: PC

Diameter, Housing Length: M18 x 1, 81.6 mm

Weight: 0.025 kg
