Micro Detectors SAT/0P-0K Photoelectric Sensor

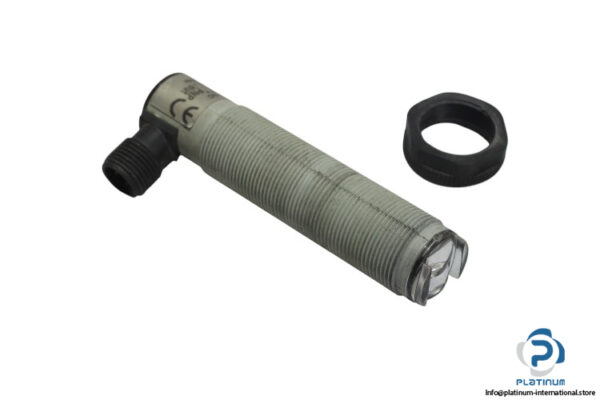

MICRO DETECTORS SAT/0P-0K Photoelectric Sensor

The MICRO DETECTORS SAT/0P-0K is a compact and durable photoelectric sensor designed for precise object detection in industrial automation systems. With a robust IP67-rated housing, axial optics, and versatile output functions, it ensures high reliability and easy integration in harsh environments.

Manufacturer: MICRO DETECTORS

Type: Photoelectric Sensor

Model: SAT/0P-0K

Technical Data:

• Optic Position: Axial
• Nominal Sensing Distance: 12 mm
• Emission: Red (660 nm)
• Operating Voltage: 10“30 V DC
• No-Load Supply Current: 30 mA
• Load Current: 100 mA
• Leakage Current: 10 µA
• LED Indicators: Yellow (output energized), Green (supply), Red (activated output)
• Output Type: PNP
• Output Function: Normally Open, Normally Closed
• Switching Frequency: Max. 1 kHz
• Power On Delay: 200 ms
• Power Supply Protections: Polarity reversal, transient
• Tightening Torque: 1 Nm
• Optic Material: Glass
• Protection Class: IP67
• Operating Temperature: -25 / 70°C
• Connections: M12 right angle plug cable exit
• Housing Material: PBT
• Dimensions: 21.4 mm x 89.8 mm
