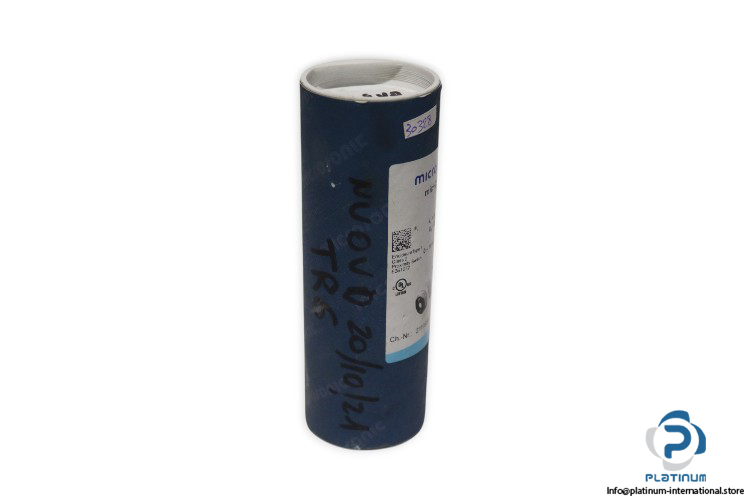

Microsonic MIC+25/IU/TC Ultrasonic Sensor
New
In stock2 unitsReady to ship
Ultrasonic Sensor
Industrial Microsonic ultrasonic sensor designed for precise analogue distance measurement with M30 cylindrical housing, integrated display, and reliable detection range up to 350 mm.0-10V4-20mAAnalogueAutomationDetectionDistanceIndustrialM30MeasurementMIC+25/IU/TCMicrosonicOutputSensorUltrasonic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

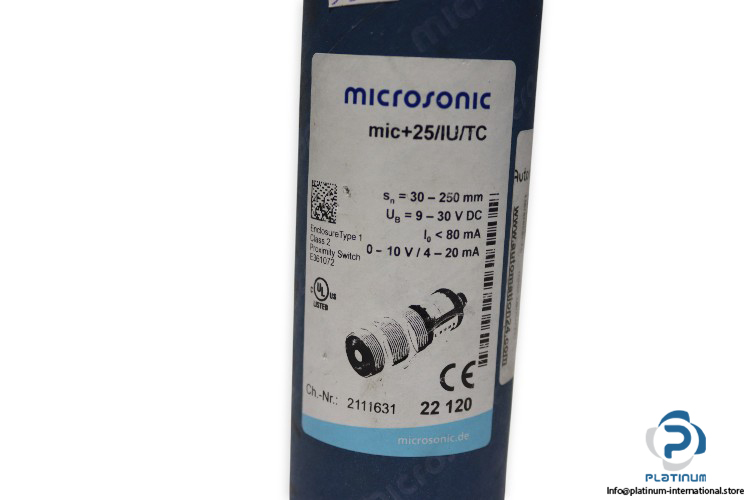

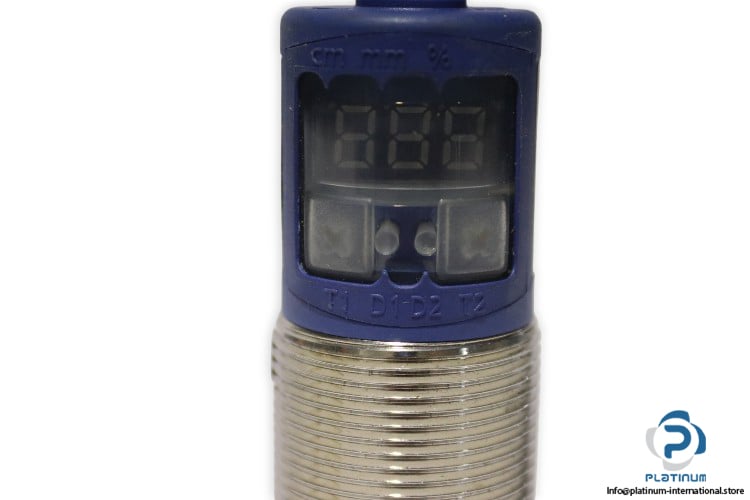

Microsonic MIC+25/IU/TC Ultrasonic Sensor
The Microsonic MIC+25/IU/TC is a cylindrical M30 ultrasonic sensor designed for precise analogue distance measurement in industrial automation applications. Using echo propagation time measurement technology, this sensor delivers accurate and stable distance detection with integrated temperature compensation and a digital display for easy configuration and monitoring.
Manufacturer: MICROSONIC
Type: Ultrasonic Sensor
Model: MIC+25/IU/TC
CH No: 2111631
Code: 22120
| Measuring Range | 30 “ 350 mm |

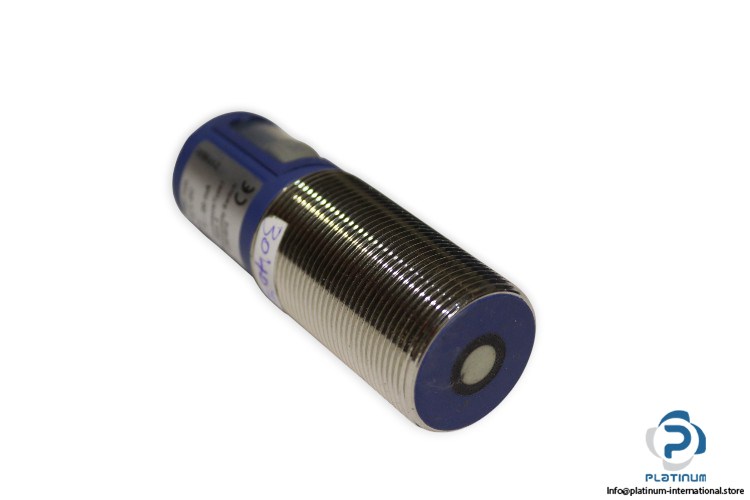

| Design | Cylindrical M30 |
| Operating Mode | Analogue Distance Measurements |
| Particularities | Display |
| Means Of Measurement | Echo Propagation Time Measurement |
| Transducer Frequency | 320 kHz |
| Blind Zone | 30 mm |
| Operating Range | 250 mm |
| Maximum Range | 350 mm |
| Resolution | 0.025 mm to 0.10 mm, depending on the analogue window |
| Reproducibility | ± 0.15 % |
| Accuracy | ± 1 % (temperature drift internally compensated) |

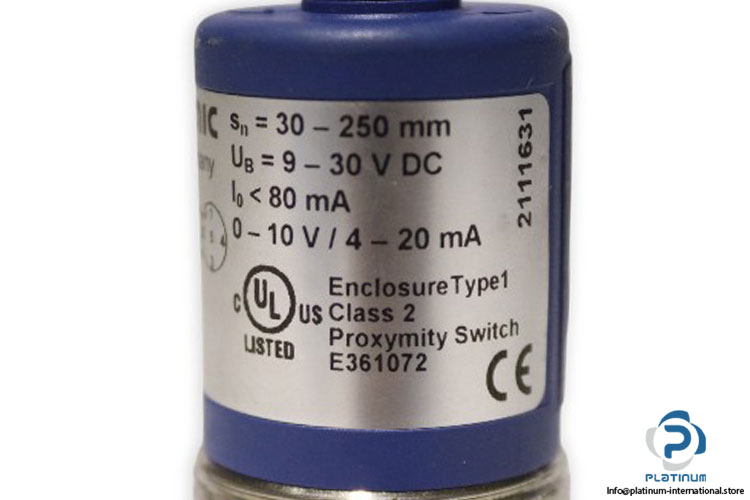

| Operating Voltage UB | 9 “ 30 V d.c., reverse polarity protection |
| Voltage Ripple | ± 10 % |
| No-load Current Consumption | ‰¤ 80 mA |

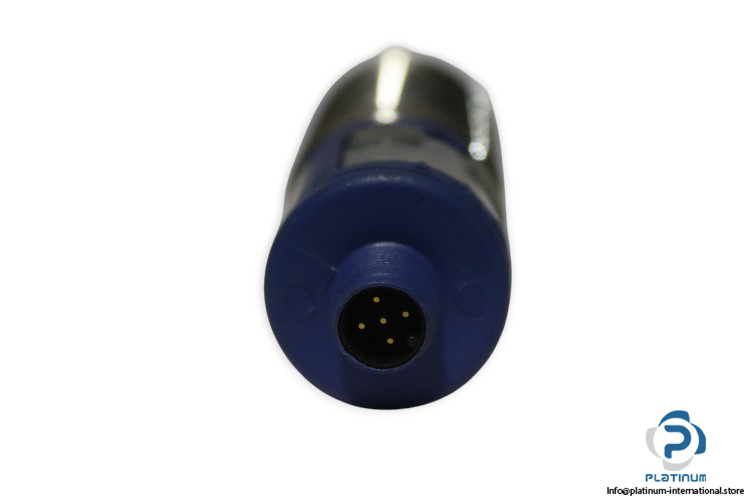

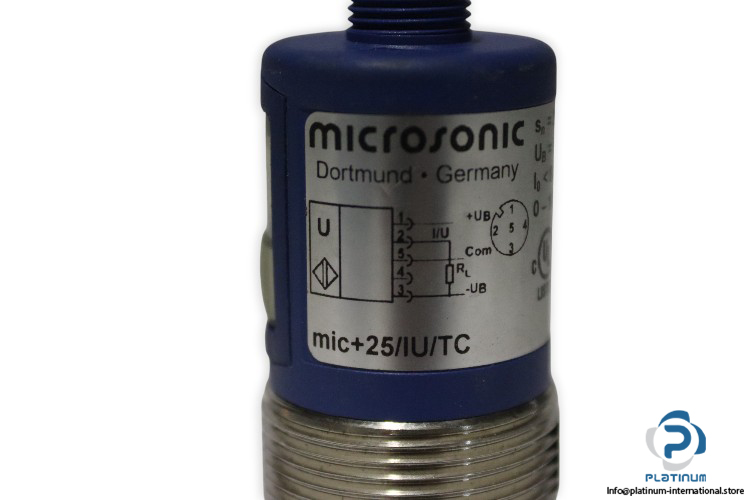

| Type Of Connection | 5-pin M12 initiator plug |
| Output | 1 analogue output |
| Current Output | 4 “ 20 mA |
| Voltage Output | 0 “ 10 V (at UB ‰¥ 15 V), short-circuit-proof |
| Output Configuration | Switchable rising/falling |
| Response Time | 32 ms |
| Delay Prior To Availability | < 300 ms |
| Input 1 | COM input, synchronisation input |
| Material | Brass sleeve, nickel-plated, plastic parts PBT, TPU |
| Ultrasonic Transducer | Polyurethane foam, epoxy resin with glass contents |
| Protection Class | IP67 according to EN 60529 |
| Operating Temperature | -25°C to +70°C |
| Further Versions | Stainless steel |
| Cable Connection | M12 connection |
| Temperature Compensation | Yes |

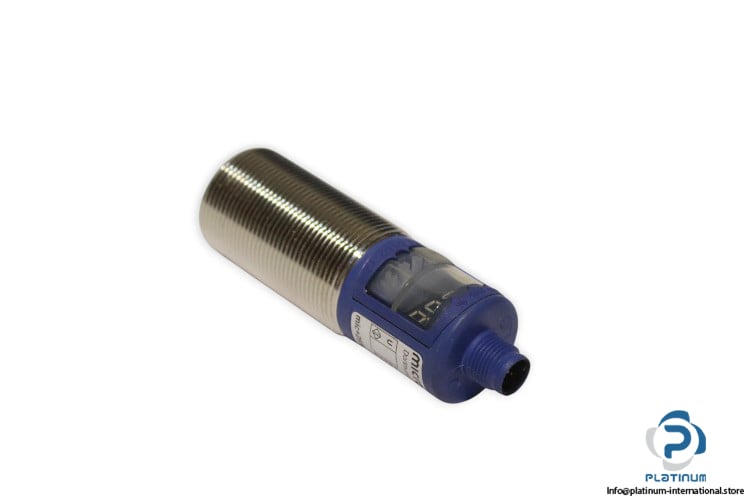

| Controls | 2 push-buttons + LED display (TouchControl) |
| Configuration | Teach-in and numeric configuration via TouchControl, LCA-2 with LinkControl |
| Synchronisation | Yes |
| Multiplex | Yes |
| Indicators | 3-digit LED display, 2 × three-colour LED |
| Particularities | Display |
| Class | Class 2 |
| Dimensions | M30 × 84 mm |
