Minebea PM25S-024-HPD1 Stepping Motor
Used
In stock1 unitReady to ship
Stepping Motor
MinebeaMitsumi PM25S-024-HPD1 stepping motor with 15° step angle, 2-2 phase drive, Nd-Fe-B magnet, and compact 25 mm diameter design for precision motion control.2/225mmAutomationCompactIndustrialMagnetMinebeaMitsumimotorNdFeBPhasePM25S-024-HPD1PrecisionStepStepperStepping
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

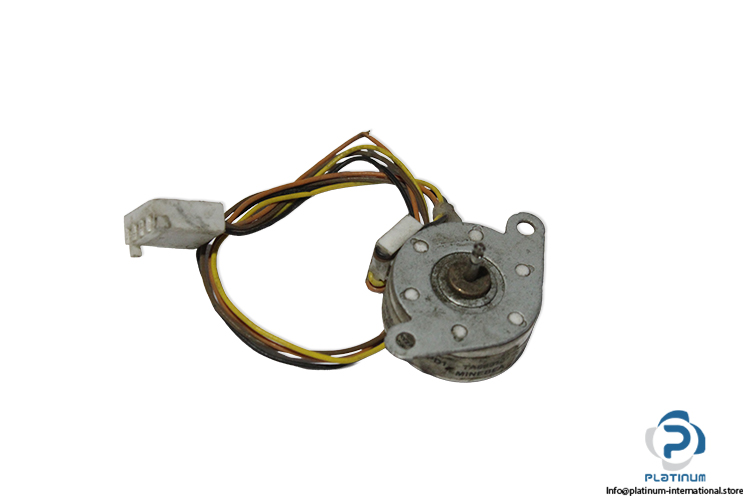

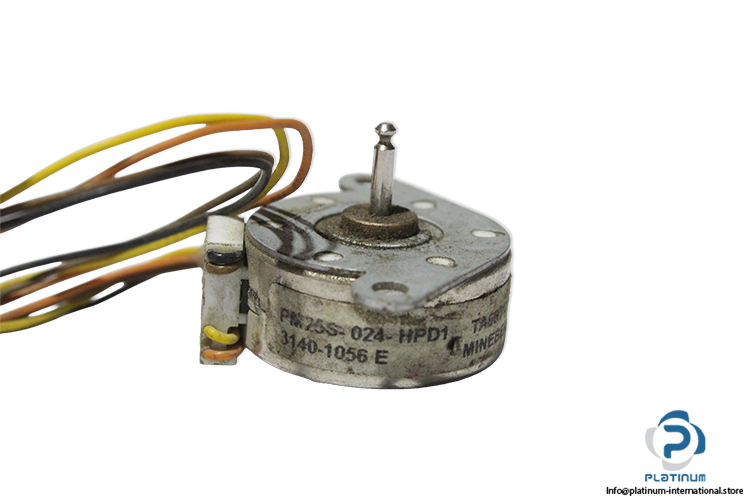

MinebeaMitsumi PM25S-024-HPD1 Stepping Motor
The MinebeaMitsumi PM25S-024-HPD1 stepping motor is engineered for precise motion control and stable positioning in compact industrial and automation applications.
Manufacturer: MinebeaMitsumi
Type: Stepping Motor
Model: PM25S-024-HPD1
Reference No.: 3140-1056 E
Code: TA68010
Recommended for precision positioning systems, compact automation equipment, and electronic control devices requiring accurate step movement.
| Step Angle | 15 degree |
| No. of Steps | 24 |
| Insulation Resistance (M) | 100 ohm/min |
| Dielectric Strength (AC) | 500 V/min |
| Drive Method | 2-2 phase |
| Class of Insulation | CLASS E |
| Operating Temp | -10 to 50 degree C |
| Magnet Material | Nd-Fe-B bonded magnet (MS70) |
| Outer Diameter | 25 mm |
| Length | 12.50 mm |
