Mitsubishi HF-KP43 Servo Motor
New
In stock1 unitReady to ship

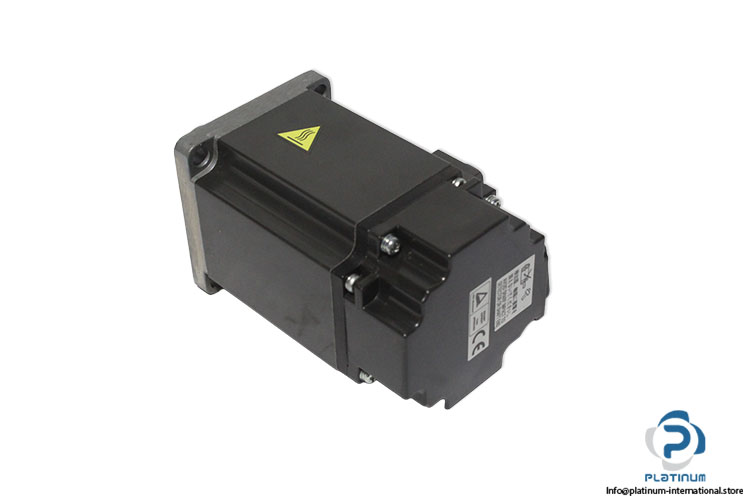

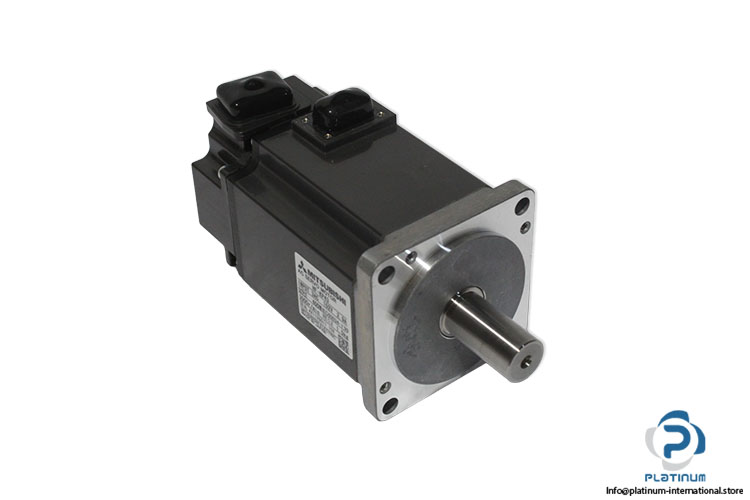

Servo Motor The Mitsubishi HF-KP43 is a compact 400 W AC servo motor with a straight shaft, delivering precise motion control and reliable performance for industrial automation and positioning applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

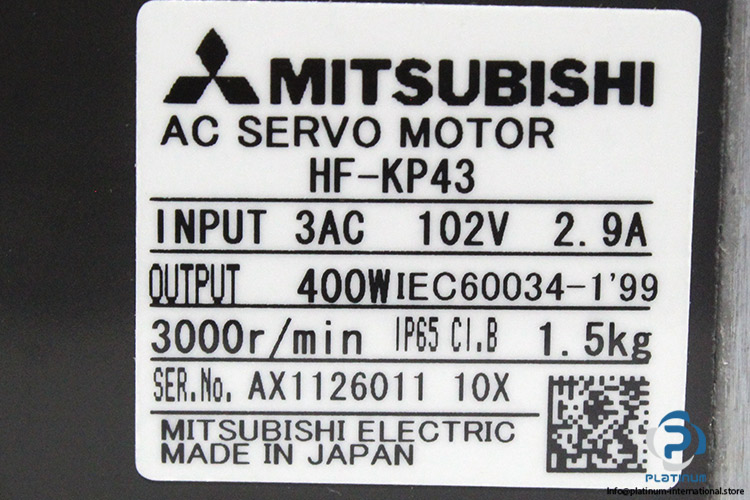

| SER.No | AX1126011 10X |

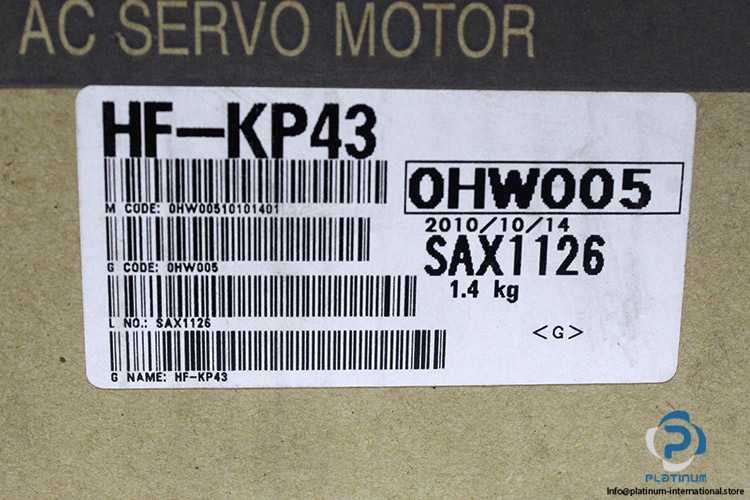

| Ref no | OHW0O5/ SAX1126 |
| Shaft | Straight shaft |
| Rated Power [W] | 400 |
| Rated Voltage [V] | 102 |
| Rated Current [A] | 2.9 |
| Rated Speed [rpm] | 3000 |
| Standard | IEC60034-1'99 |
| Rated Torque[Nm] | 1.3 |
| Moment of inertia | 0.000042 kg·m² |
| Degree of protection | IP65 |
| Ambient air temperature for operation | 0...+40 °C |
| Insulation class | B |
| Connection | dynamic d connector |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100425 |
| Weight | 1,44 |
