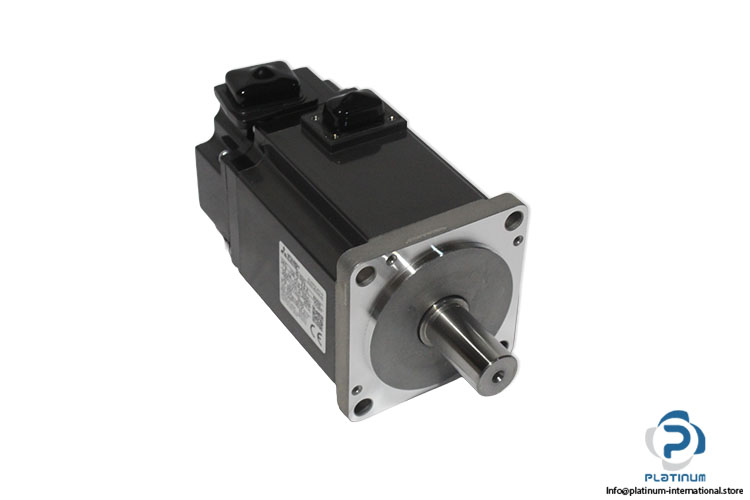

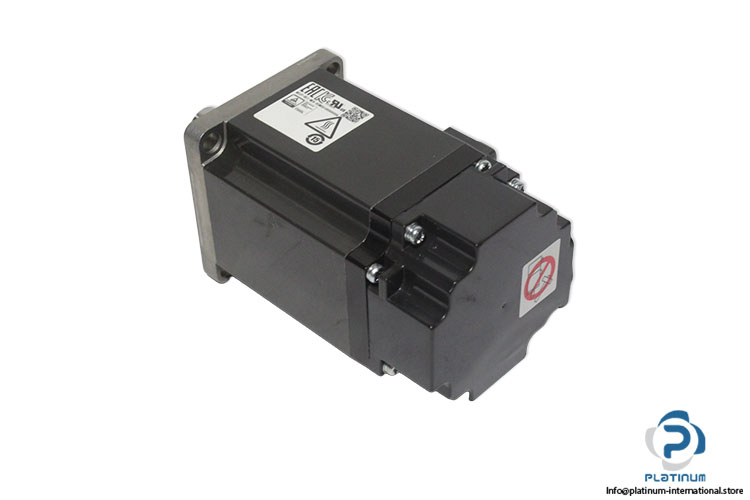

Mitsubishi HG-KR43 Servo Motor
New
In stock2 unitsReady to ship
Servo Motor MITSUBISHI AC servo motor with 400 w rated power, 3000 rpm rated speed,IP65 protection, and straight shaft design for high-precision industrial motion control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

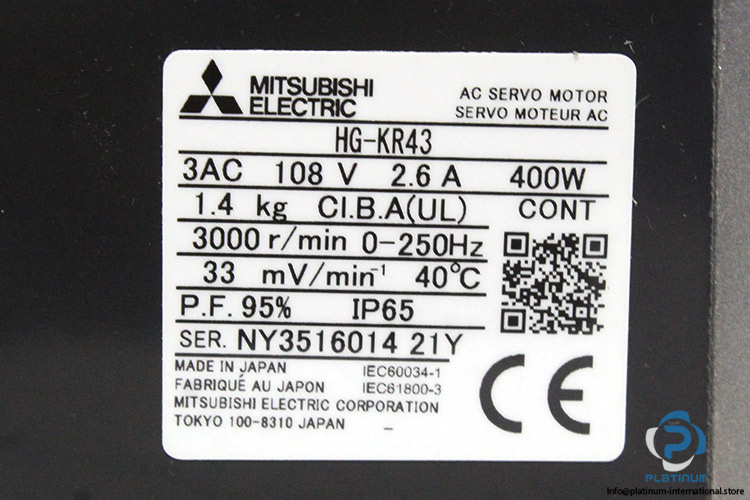

| SER.NY | 3516014 21Y |

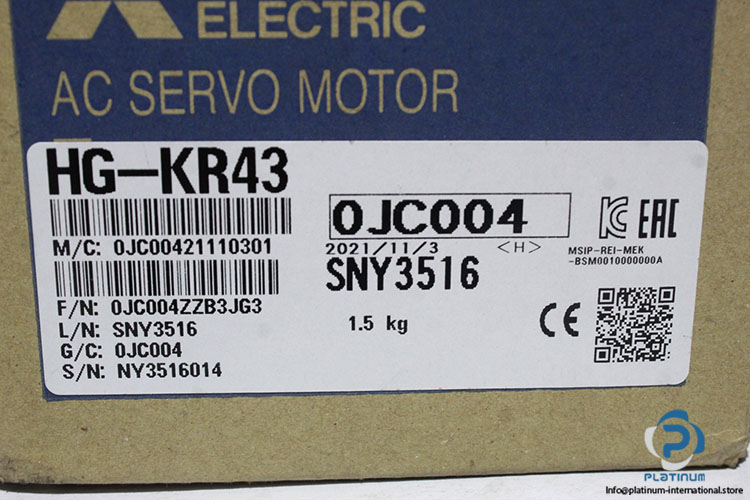

| M/C | 0JC00421110301 |
| F/N | 0JC004ZZB3JG3 |
| L/N | SNY3516 |
| G/C | 0JC004 |
| S/N | NY3516014 |
| Ref no | SNY3516/0JC004 |
| Shaft | Straight shaft |
| Rated Power [W] | 400 |
| Rated Voltage [V] | 108 |
| Rated Current [A] | 2.6 |
| Rated Speed [rpm] | 3000 |
| Protection Class | IP65 |
| Frequency[hz] | 0 – 250 |
| Torque | 1.3Nm nominal |
| Maximum torque | 4.5 Nm |
| Moment of inertia | 0.0000371kg.m2 (0.371kg.cm2) |
| Connection type | 4-pin rectangular connector |
| Mounting mode | 60x60mm flange mounting |
| Dimensions | H77.1mm x W60mm x D128.3mm |
| Net Height (mm) | 77.1 mm |
| Net Width (mm) | 60 mm |
| Net Depth (mm) | 128.3 mm |
| Ambient air temperature for,Operation | 0...+40 °C |
| Maximum radial load | 245 N |
| Maximum axial load | 98 N |
| Compliant with standard(s) | CE marking TUV Rheinland cULus UL KC EN61800-3 EN60034-1 EN62061 SILCL3 EN50581 UL1004-1 UL1004-6 CSA KC EAC |
| Resolution | 22-bit (equivalent to 4194304ppr) feedback |
| Connection | dynamic d connector |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100410 |
| Weight | 1,5 |
