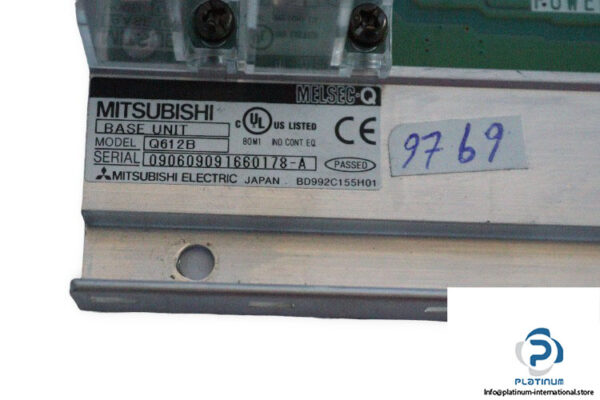

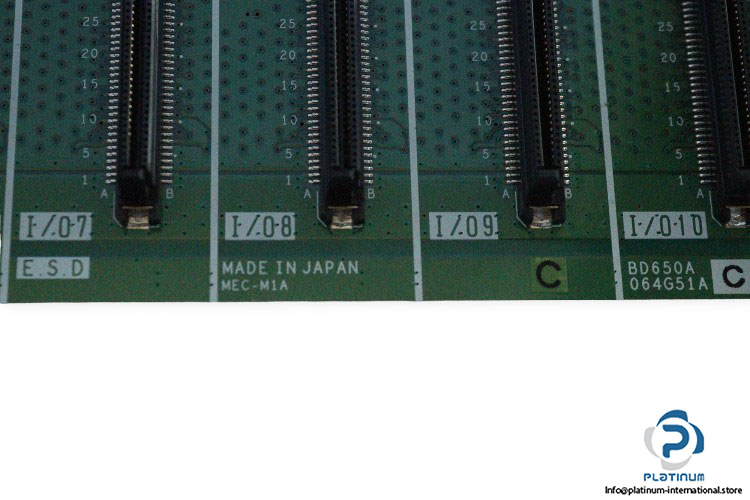

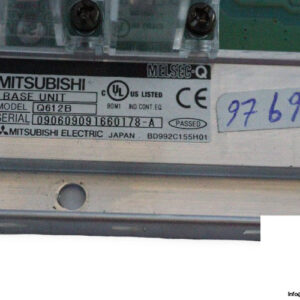

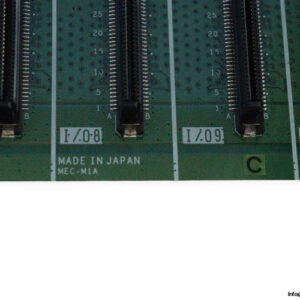

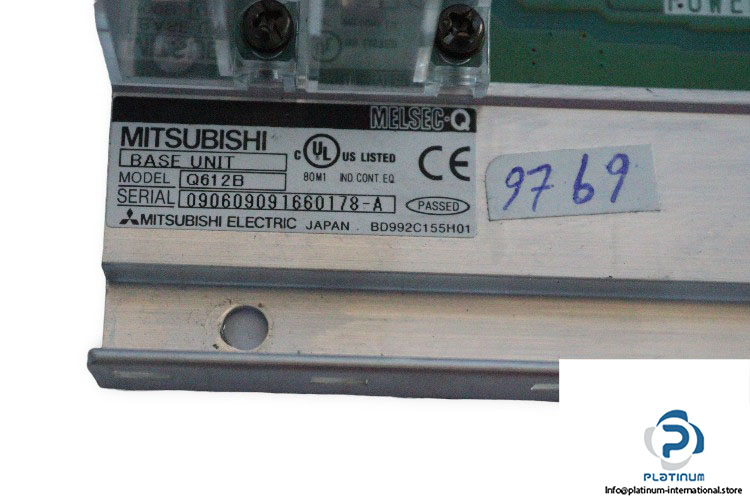

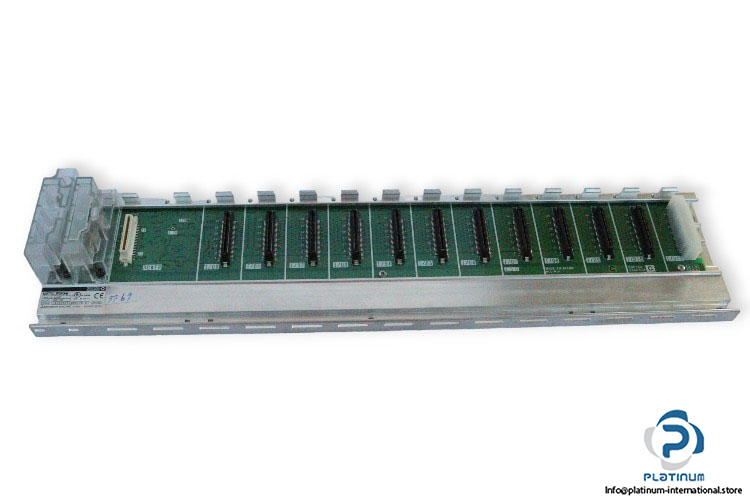

Mitsubishi Q612B Base Unit

Manufacture: Mitsubishi
Type: Base Unit
Model: Q612B
Series: MELSEC-Q

Special features:
– Q6*B extension units provide a slot for their own power supply module
– A total of max.7 extension units can be connected to a main base unit with up to 64 I/O modules for a single system
– The maximum distance from the first to the last base unit is 13.2 m
– Base units with slots for two redundant power supplies increase the availability of the system
Used:
An extension base unit with a power supply module must be used in the following cases: If the power consumption of the inserted modules exceeds the capacity of the power supply module on the base unit, If the voltage drops below 4.75 V between the base unit and the extension unit.
No. of Slots: 12
No. of Slots for Power Supply: 1
Dimensions (WxHxD): 439 x 98 x 44.1 mm
