MITUTOYO LGK-110 Slim LINEAR GAGE
New
In stock1 unitReady to ship
Slim Linear Gage
The Mitutoyo LGK110 Slim Linear Gage offers 1 µm resolution, 10 mm measuring range, and a fast response speed of 1500 mm/sec, ideal for precise measurements in industrial settings.110BallbearingDetectionEncoderGageHighIndustrialLinearMeasurementMeasuringmmPhotoelectricPositionPrecisionRangeResolutionSensortoolsµm
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

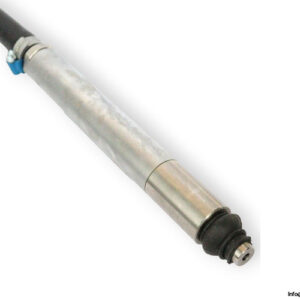

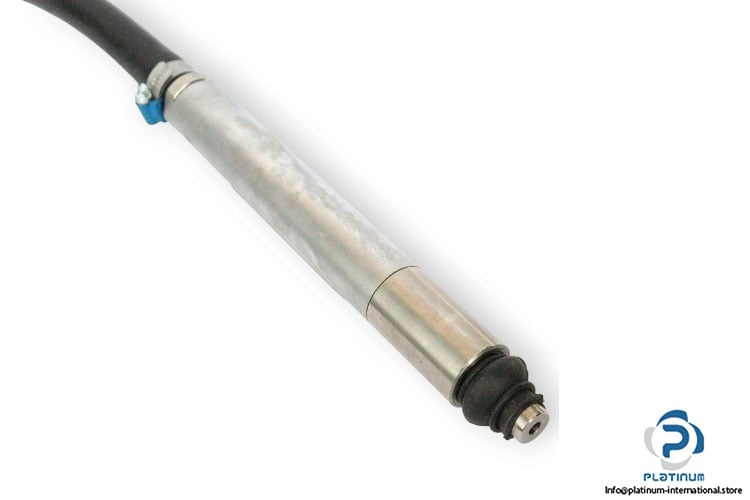

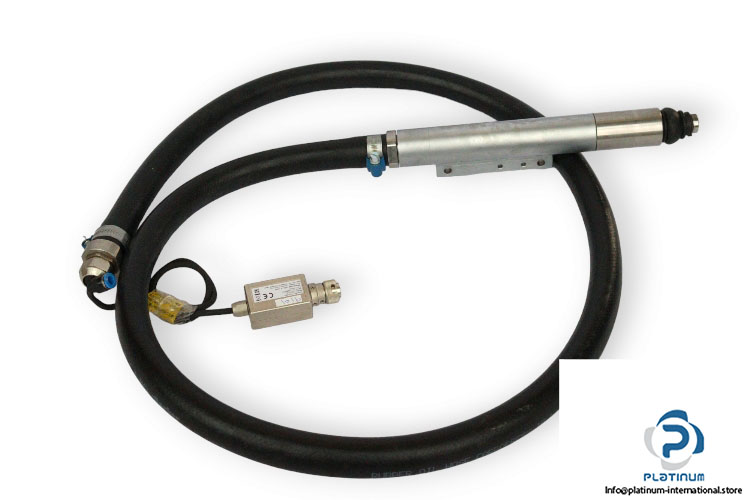

Mitutoyo LGK110 Slim Linear Gage
The Mitutoyo LGK110 Slim Linear Gage provides high precision with a 1 µm resolution and a measuring range of 10 mm. Designed for accurate position detection, it features a transmission-type photoelectric linear encoder for fast and reliable measurements in industrial applications.

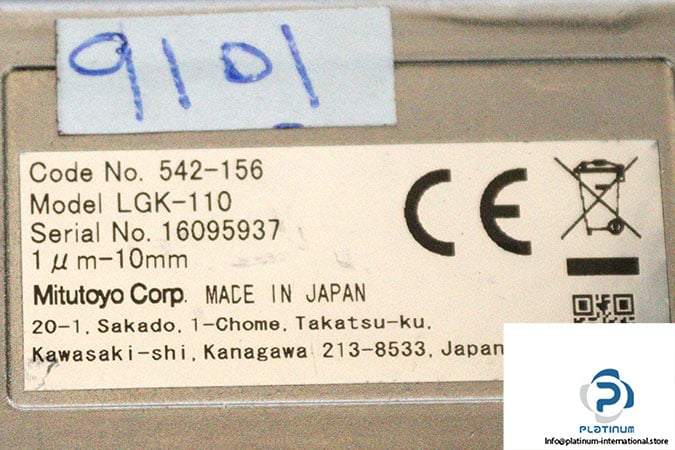

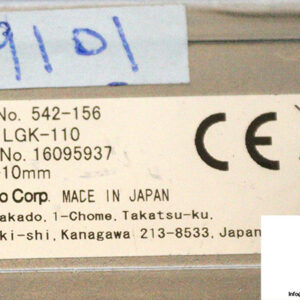

Manufacturer: Mitutoyo
Type: Slim Linear Gage
Model: LGK110
Code No: 542-156
Ref No: 16095937
Technical Data:
- Resolution: 1 µm
- Measuring Range: 10 mm
- Position-detection Sensor: Transmission-type photoelectric linear encoder
- Max. Response Speed: 1500 mm/Sec
- Signal Pitch: 4 µm
- Stem Size: ø8 mm
- Bearing Type: Linear ball bearing
- Connecting Cable Length: 2 m
- Connector Plug Used: RM12BPE-6PH (HIROSE)
- Operating Temperature: 0 / 40 °C
- Degree of Protection: IP66
- Dimensions: dia 12 x 125.5 x (M9.5 x 0.5) mm
