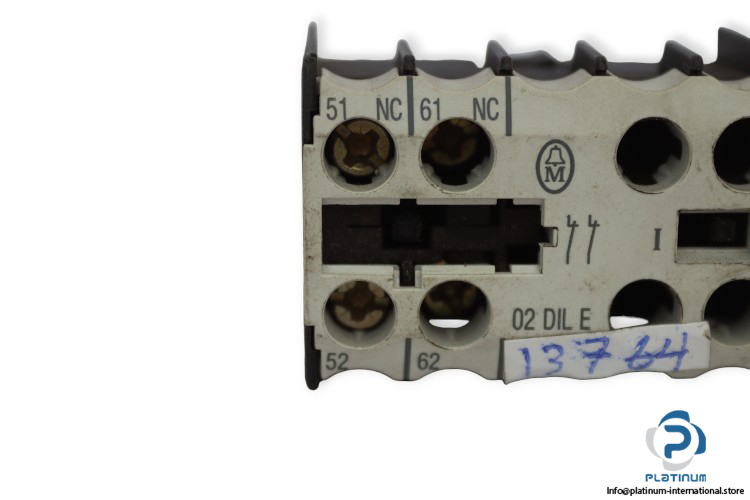

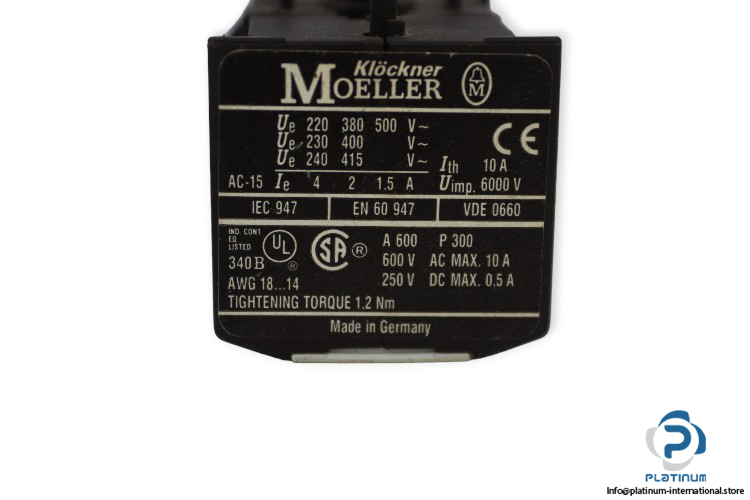

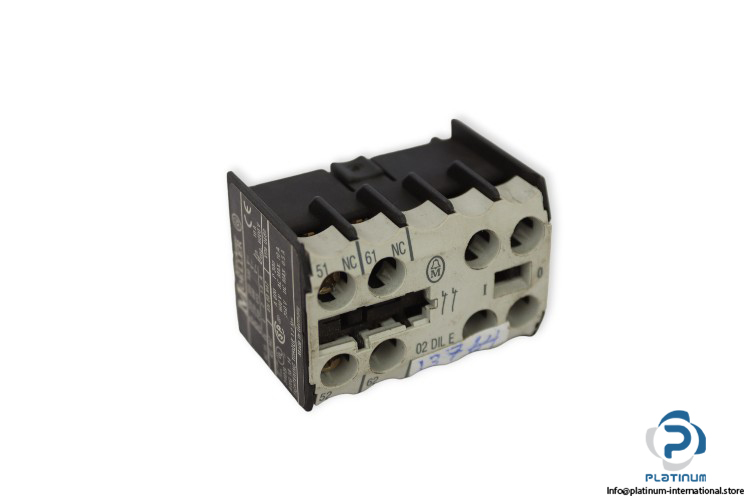

Moeller 02 DIL E Auxiliary Contact Block

Manufacturer: Klockner Moeller
Type: Auxiliary Contact Block
Model: 02DILE

Rated Operational Voltage: 600 V AC
Rated operational current (Ie):
1.5 A @ AC-15, 500 V
2 A @ AC-15, 380 V / 400 V / 415 V
4 A @ AC-15, 220 V / 230 V / 240 V
Switching capacity: 0.5 A, 250 V DC / 10 A, 600 V AC
Rated impulse withstand voltage (Uimp): 6000 V AC
Rated Thermal Current (Ith): 10 A
Contact: 2 Normally Closed (NC)
Standard: IEC 947, EN 60947,VDE 0660
Pollution degree: 3
No. of poles: 2
Torque: 1.2 Nm
Mounting method: Front fastening
Electric connection type: Screw connection
Ambient Operating Temperature: -25 … 50°C
Dimensions: 36 x 32 x 45 mm
