Moeller 04 DIL E Auxiliary Contact Block
Auxiliary Contact Block
MOELLER 04 DIL E auxiliary contact block with 4 NC contacts, AC-15 rating, 10 A thermal current, and screw terminal connection for industrial control circuits.MOELLER 04 DIL E Auxiliary Contact Block
The MOELLER 04 DIL E is a reliable auxiliary contact block designed for industrial control and switching applications. Built in compliance with international standards, it provides dependable switching performance and secure screw terminal connections for control circuits.
Manufacturer: MOELLER
Type: Auxiliary Contact Block
Model: 04 DIL E
Standards:
¢ IEC 947 / EN 60947
¢ VDE 0660

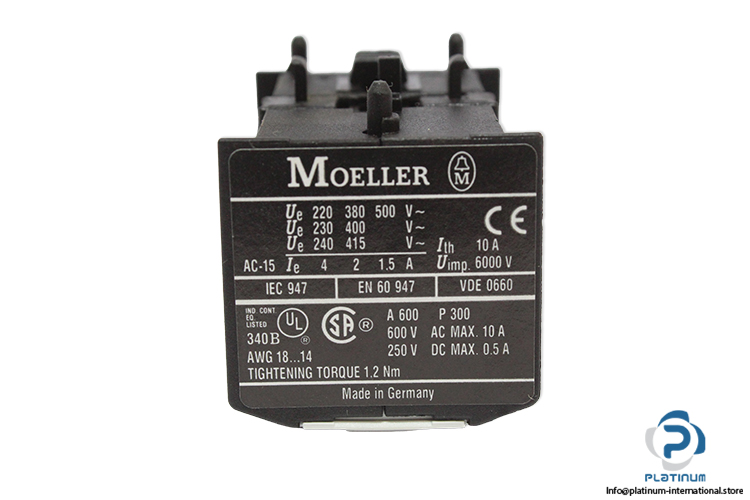

Rated Operational Voltage (Ue):
¢ 220 / 380 / 500 V AC
¢ 230 / 400 V AC
¢ 240 / 415 V AC
Utilization Category:
¢ AC-15
Rated Operational Current (Ie “ AC-15):
¢ 4 A @ 220 V AC
¢ 2 A @ 380 V AC
¢ 1.5 A @ 500 V AC
Thermal Current (Ith):
¢ 10 A
Impulse Withstand Voltage (Uimp):
¢ 6 kV (6000 V)
Contact Configuration:
UL / CSA Ratings:
Connection:

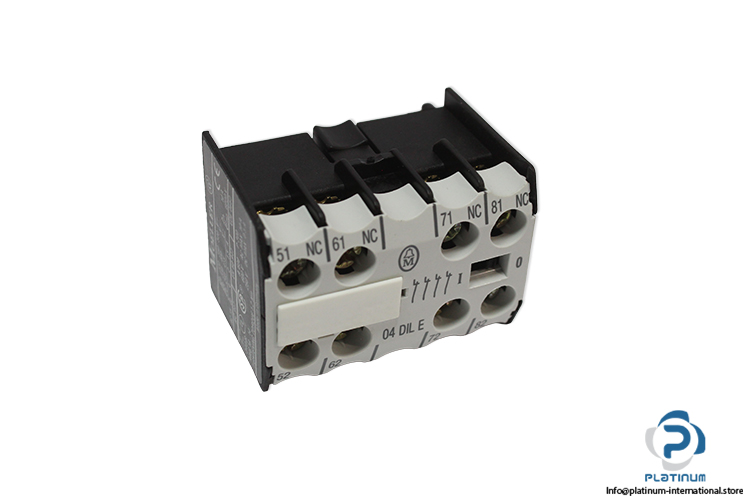

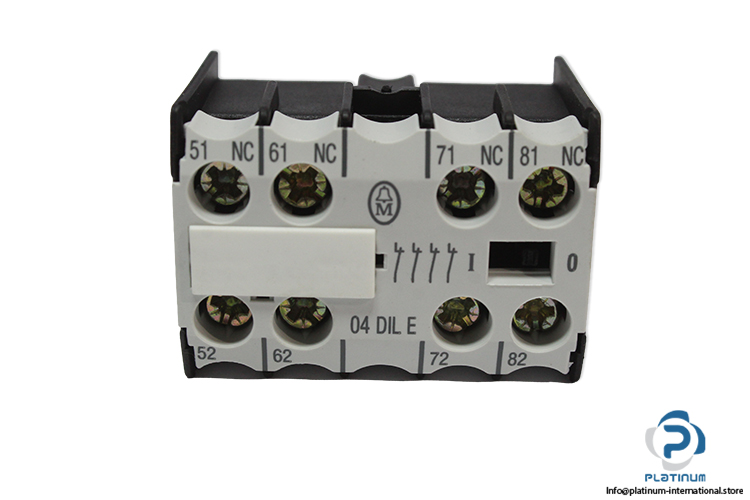

| ¢ 4 × Normally Closed (NC) Contacts ¢ Terminals | 51-52, 61-62, 71-72, 81-82 |
| ¢ AC Max | 10 A @ 600 V |
| ¢ DC Max | 0.5 A @ 250 V |
| ¢ Screw Terminals ¢ Wire Size | AWG 18 / 14 |
| ¢ Tightening Torque | 1.2 Nm |
