Moeller 31 DIL E Contactor Relay
The Moeller 31 DIL E Contactor Relay offers 3 NO and 1 NC contacts, rated up to 600 V and 4 A. Its interlocked opposing contacts ensure reliable operation for industrial applications.
Moeller 31 DIL E Contactor Relay

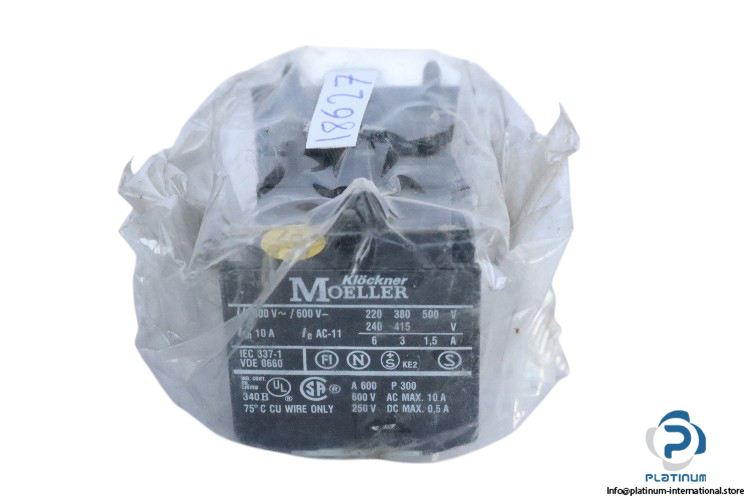

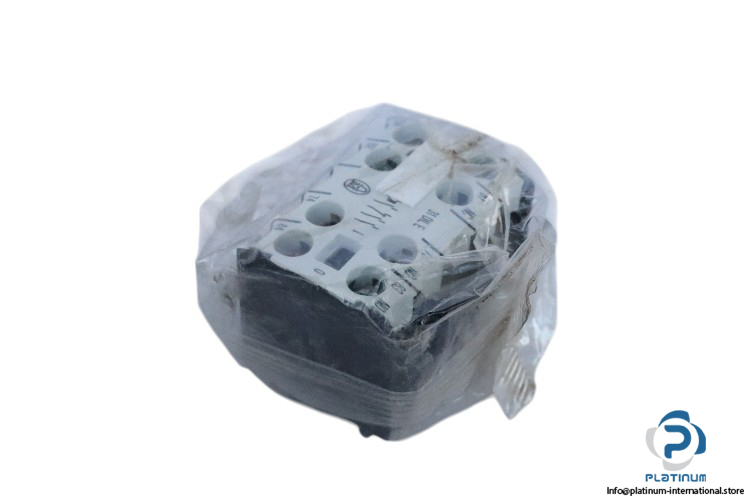

The Moeller 31 DIL E Contactor Relay is designed for industrial control applications, offering reliable switching with interlocked opposing contacts within an auxiliary contact module. This four-pole relay is equipped with 3 NO (Normally Open) contacts and 1 NC (Normally Closed) contact, making it versatile and suitable for various control systems.
Features:
- Interlocked opposing contacts within an auxiliary contact module
- Rated operational voltage max. (Ue): 600 V
- Rated insulation voltage (Ui): 690 V
- Rated operational current (Ie) at AC-15:
- 220 V, 230 V, 240 V: 4 A
- 380 V, 400 V, 415 V: 2 A
- 500 V: 1.5 A
- Rated impulse withstand voltage (Uimp): 6000 V AC

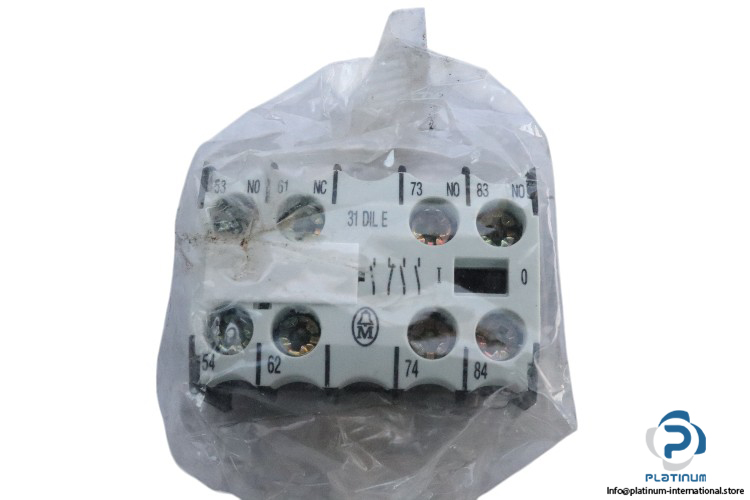

- Contact: 3 NO (Normally Open) + 1 NC (Normally Closed)
- Connection type: Screw connection
- Number of poles: Four-pole
- Ambient operating temperature: -25 to 50 °C
- Dimensions (HxWxD): 32 x 45 x 36 mm
This relay is ideal for high-voltage and current switching applications, offering reliable and secure operation in industrial environments. Its robust design and versatile contact configuration make it suitable for various industrial control tasks.
