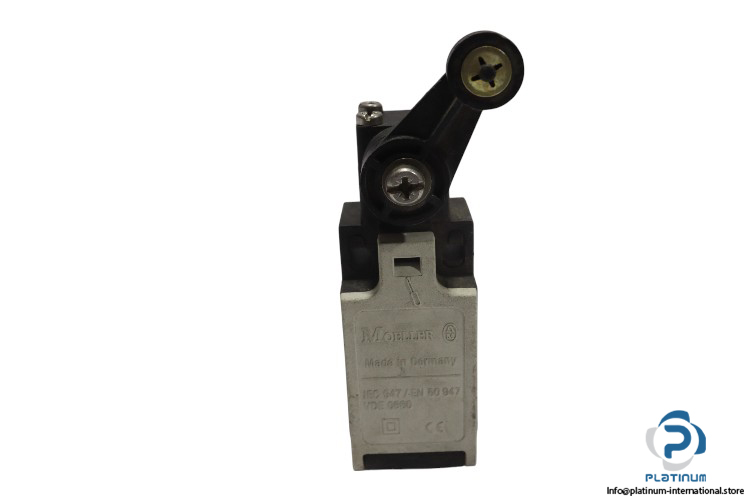

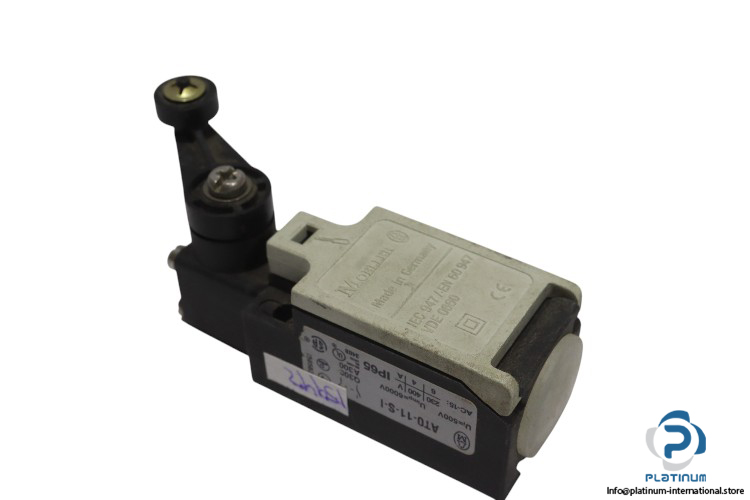

Moeller AT0-11-S-I Limit Switch

Moeller AT0-11-S-I Limit Switch

The Moeller AT0-11-S-I is a high-quality industrial limit switch designed to provide precise and reliable position detection in automated systems. Built for durability and safety, it offers a rated insulation voltage of 500V and an impulse withstand voltage of 6000V. The switch is suitable for AC-15 applications with contact ratings of 6A at 230V and 4A at 400V. Its rugged enclosure meets IP65 protection standards, making it ideal for use in harsh industrial environments where protection against dust and low-pressure water jets is required.

• Manufacturer: Moeller
• Type: Limit Switch
• Model: AT0-11-S-I

Technical Specifications:

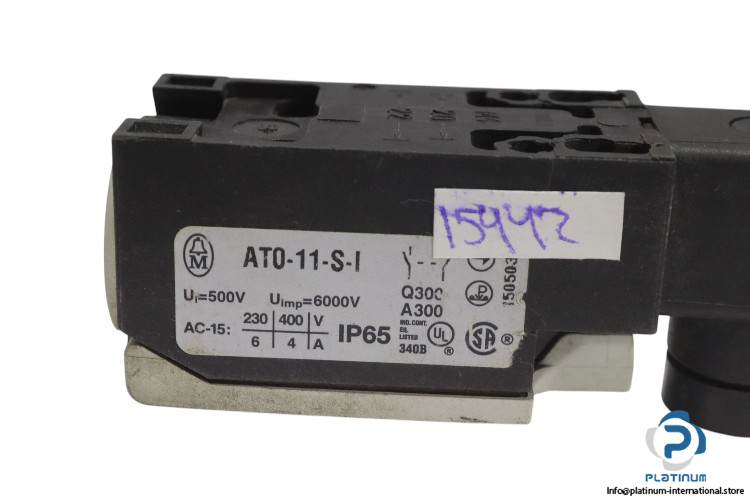

• Rated Insulation Voltage (Ui): 500V
• Rated Impulse Withstand Voltage (Uimp): 6000V
• Contact Rating (AC-15): 6A at 230V / 4A at 400V
• Degree of Protection: IP65

Applications:

• Machine safety and interlocking
• Industrial automation
• Position sensing in conveyor and process systems
• Limit control in mechanical assemblies
