Moeller DIL A-XHI22 Auxiliary Contact Module
In stock2 unitsReady to ship
Auxiliary Contact Module
A compact and reliable auxiliary contact module designed for industrial control circuits, providing multiple contact combinations, high voltage resistance, and compliance with IEC standards.60947accessoriesAuxiliaryCircuitComponentsContactContactorControlDILA-XHI22ElectricalIECIndustrialModuleMoellerSwitchgear
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

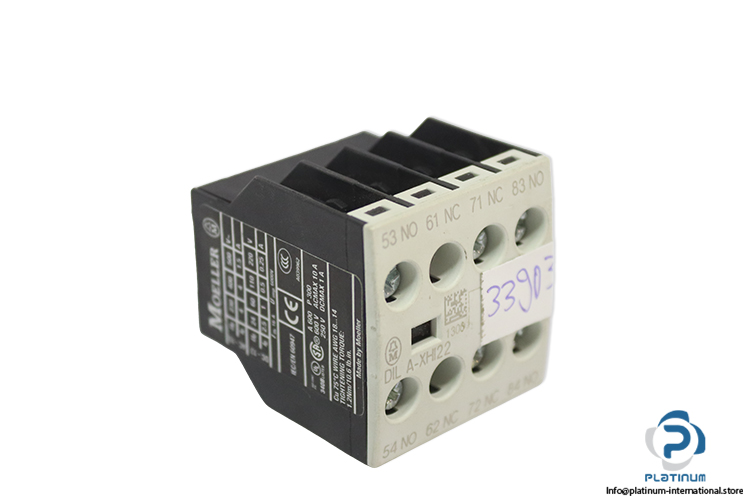

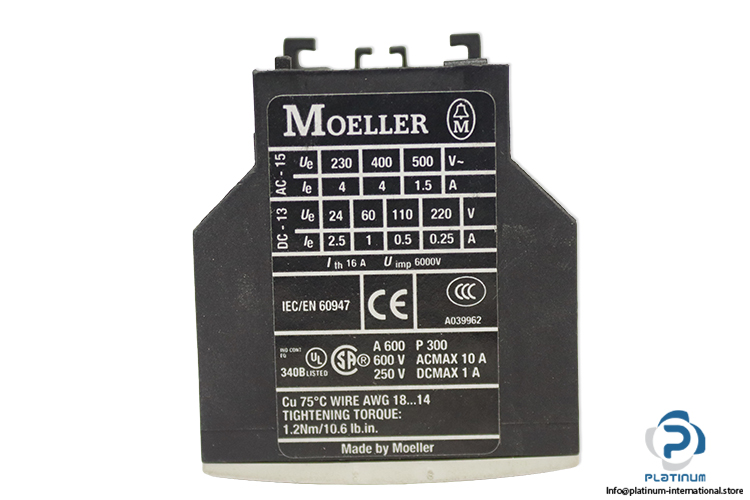

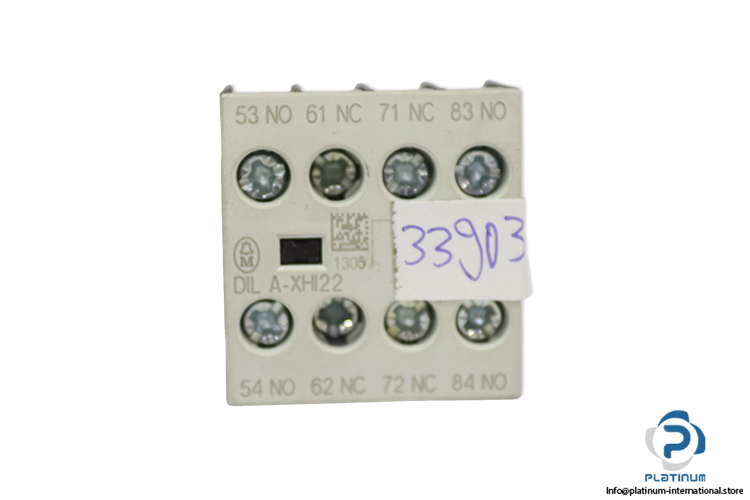

MOELLER DILA-XHI22 Auxiliary Contact Module
A reliable auxiliary contact module designed for standard industrial control and switching applications. This module provides stable electrical performance, secure screw terminal connections, and compliance with international standards, making it suitable for integration with contactors and control circuits. Manufacturer: MOELLER
Type: Auxiliary Contact Module
Model: DILA-XHI22
| Function | Standard Applications |
| Number Of Poles | 4 Pole |
| Connection Technique | Screw Terminals |
| Rated Operational Current | Conventional Free Air Thermal Current, 1 Pole |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Operational Voltage (Ue) | 500 V AC |
| Thermal Current (Ith) | 16 A At 60 °C |
| AC-15 Rating | 4 A At 220 / 230 / 240 V AC |
| AC-15 Rating | 4 A At 380 / 400 / 415 V AC |
| Contacts Configuration | 2 Normally Open (N/O) + 2 Normally Closed (N/C) |
| Ambient Temperature | -25 °C To +60 °C |
| Dimensions | 45 × 117 × 68 mm |
| Standards | IEC / EN 60947 |
