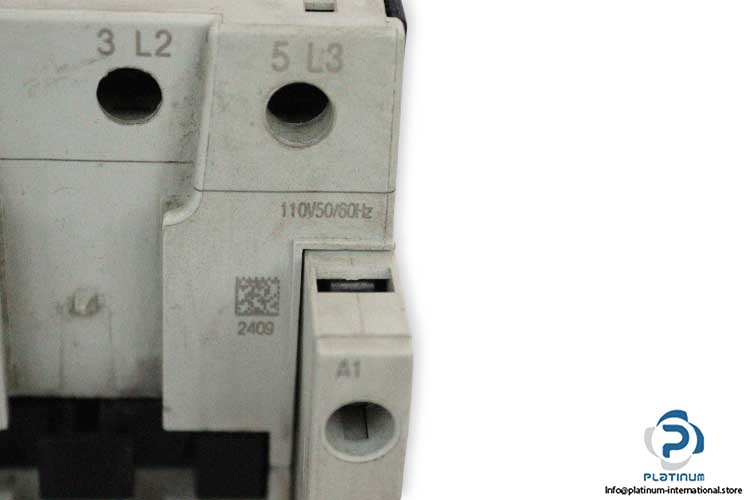

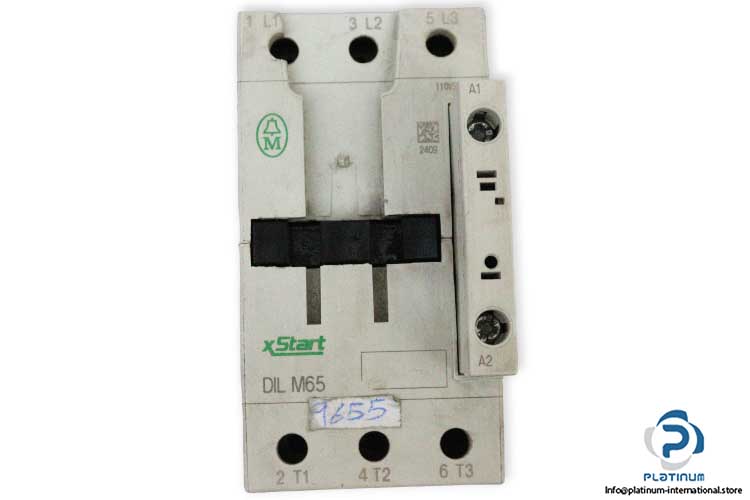

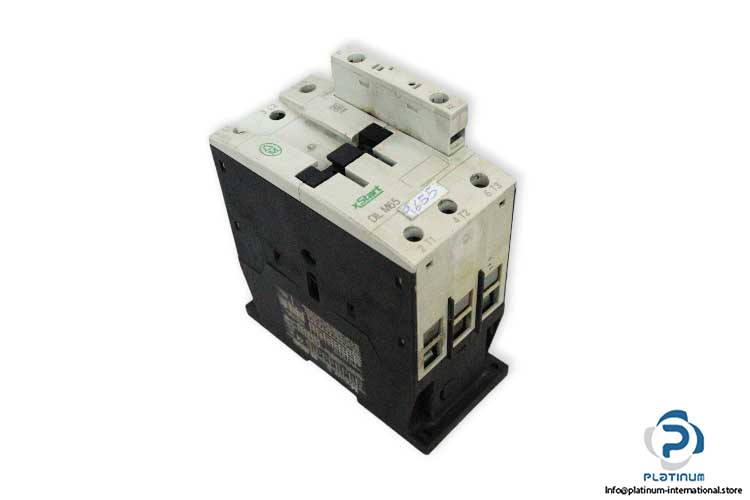

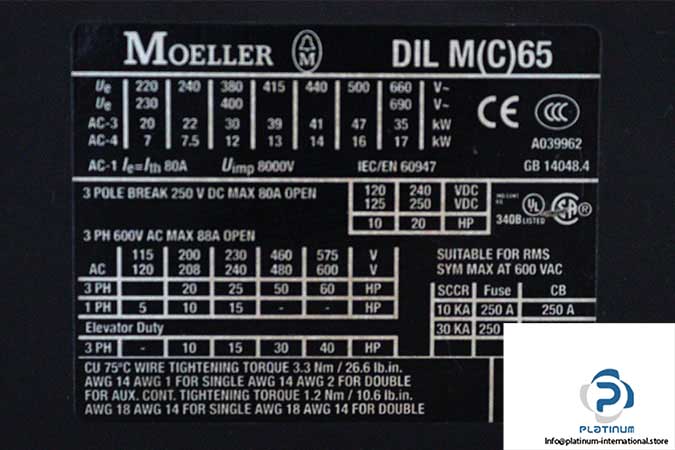

Moeller DIL M65 Contactor

Manufacture: Moeller
Type: Full voltage non-reversing contactor
Model: DIL M65

Application: Motors
Coil voltage: 110 V AC,50/60 Hz
Rated impulse withstand voltage Uimp: 8000 V AC
Power consumption: 30 kW
Thermal Current Ith: 80 A
Degree of protection: IP00
Frame size: FS3
Pollution degree: 3
Terminals: Screw terminals
Number of normally open contacts as main contact: 3 NO
Screw size: M6, Terminal screw, Main cables
Ambient operating temperature: -25 … 60°C
Dimensions: 132 x 115 x 55 mm
