Moeller DILER-22-G Contactor Relay
Klockner Moeller / Eaton Contactor Relay DIL ER-22-G with 24 V DC coil voltage, rated operational current of 3 A at 400 V AC, and thermal current of 10 A. Designed for reliable industrial control with IP20 protection and a compact size of 54 x 58 x 45 mm.

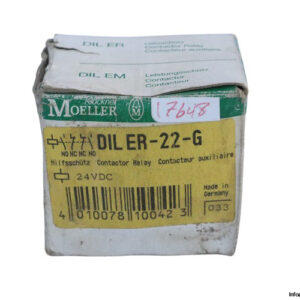

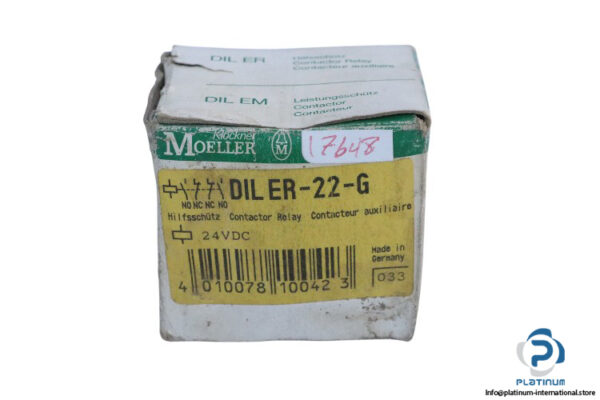

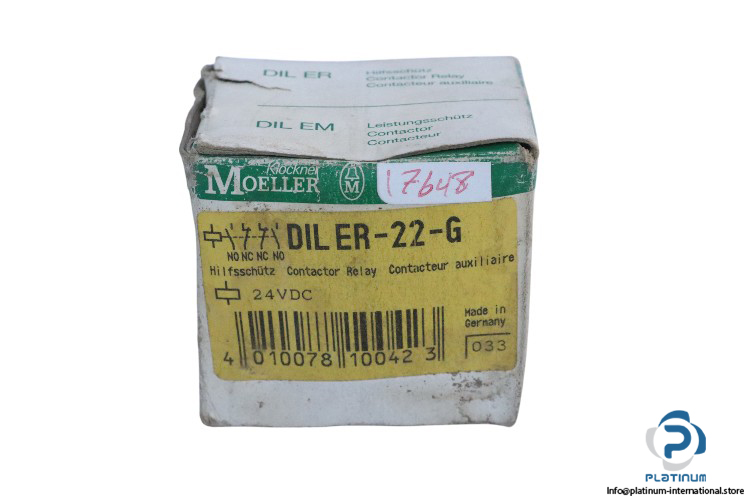

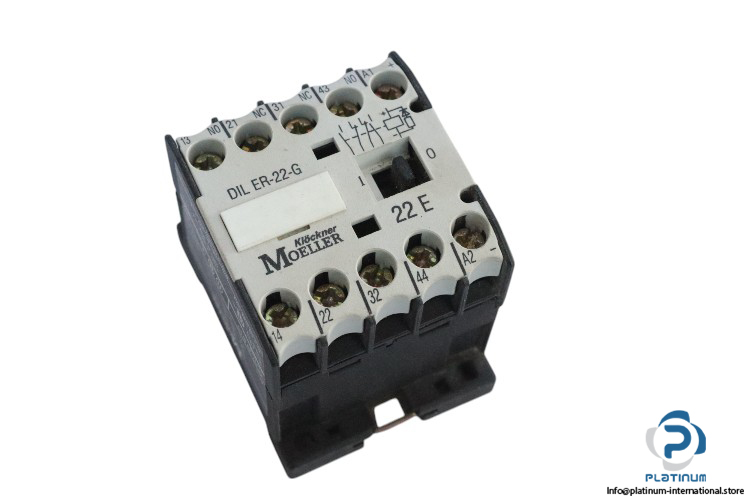

Klockner Moeller / Eaton Contactor Relay DIL ER-22-G
Klockner Moeller / Eaton Contactor Relay DIL ER-22-G is a reliable and versatile contactor relay designed for various industrial control and switching applications. This model features a compact design with a high level of protection and is perfect for use in environments requiring efficient and durable performance. Below are the key technical specifications:
- Manufacturer: Klockner Moeller / Eaton
- Type: Contactor Relay
- Model: DIL ER-22-G
- EAN No.: 4010078100423
- Part No.: 033

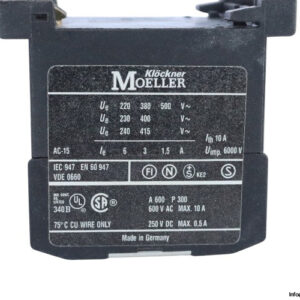

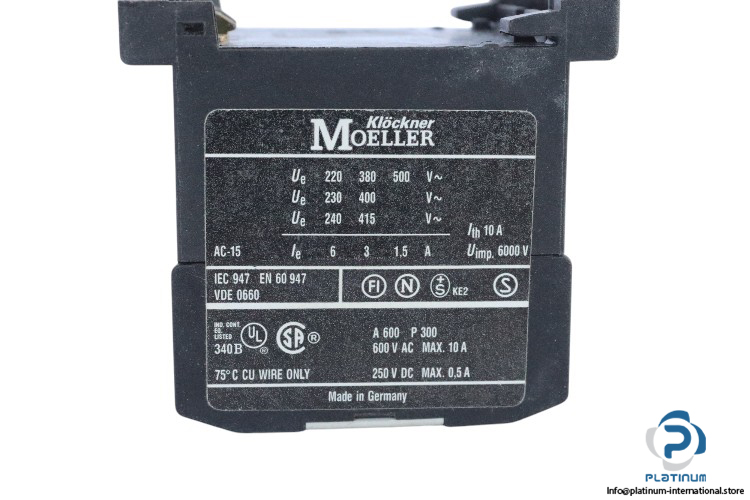

Technical Data:
- Coil Voltage: 24 V DC
- Power Consumption: 2.3 W
- Rated Operational Current (Ie) AC-15: 3 A at 400 V AC
- Rated Impulse Withstand Voltage (Uimp): 6000 V AC
- Thermal Current (Ith): 10 A
- Contact: 2NO, 2NC
- Pollution Degree: 3
- Standard: IEC 947, EN 60947, VDE 0660
- Degree of Protection: IP20
- Ambient Operating Temperature: -25 to 50 degrees Celsius
- Dimensions: 54 x 58 x 45 mm
