Moeller DILM25-10 Contactor
New
In stock2 unitsReady to ship

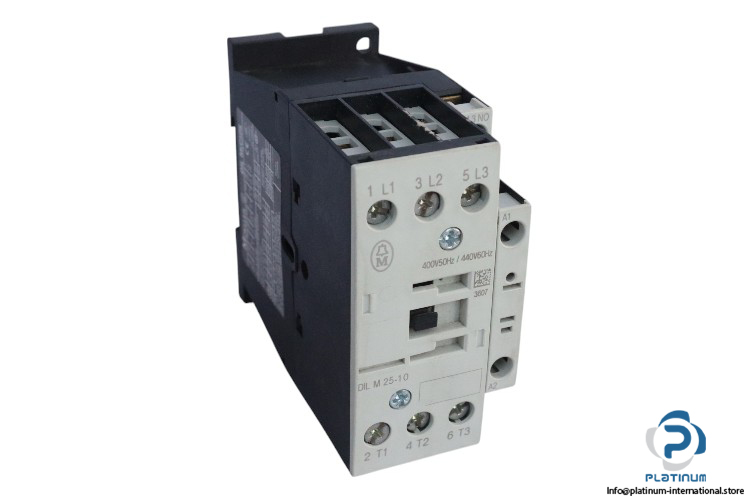

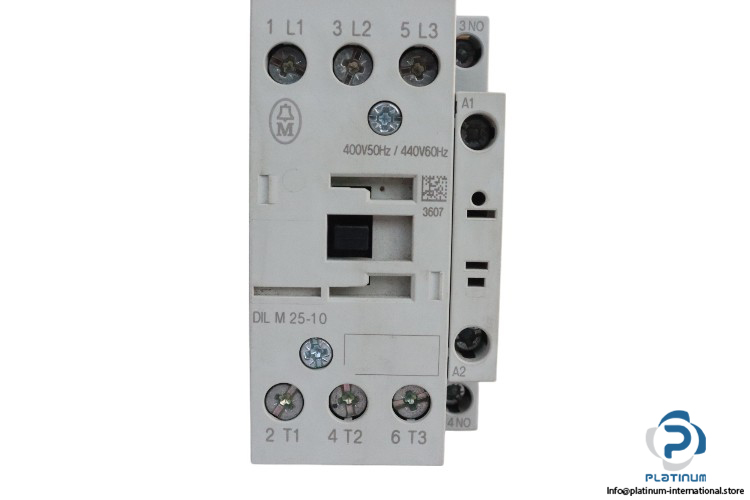

MOELLER Contactor DILM25-10
Reliable motor contactor for 230/240 V, 50-60 Hz, IP00, FS2 frame size, and IE3 motor compatibility.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Contactor MOELLER DILM25-10
The MOELLER DILM25-10 Contactor is a robust solution for controlling motors, including those with efficiency class IE3. Operating at a rated voltage of 230 V or 240 V and a frequency of 50“60 Hz, this contactor ensures reliable performance in industrial applications. With an IP00 protection rating and frame size FS2, it is designed for secure and efficient operation.
- Manufacturer: CONTACTOR
- Type: MOELLER
- Model: DILM25-10
- Application: Contactors for Motors, including IE3 motors
- Rated Voltage: 230 V, 240 V
- Frequency: 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp): 8000 V AC
- Resistance per Pole: 2.7 M„¦
- Connection: Screw terminals
- Tightening Torque:
- Main Cables: 3.2 Nm
- Control Circuit Cables: 1.2 Nm
- Pollution Degree: 3
- Degree of Protection: IP00
- Frame Size: FS2
- Stripping Length (Main Cable): 10 mm
- Screw Size:
- Main Cables: M5 (Terminal screw)
- Control Circuit Cables: M3.5 (Terminal screw)
- Ambient Temperature: 25 to 60 °C
