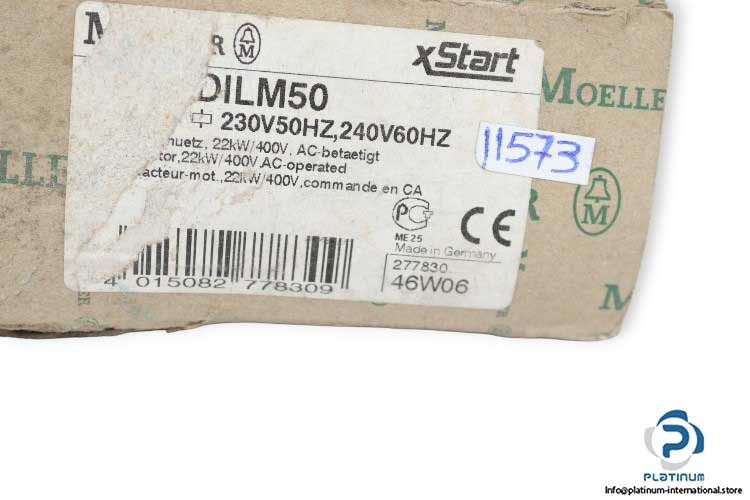

Moeller DILM50 Contactor

Manufacturer: Moeller
Type: Contactor
Model: DILM50

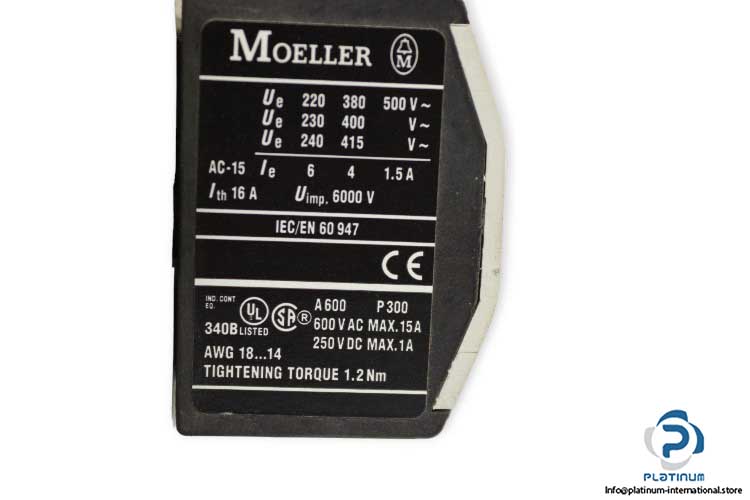

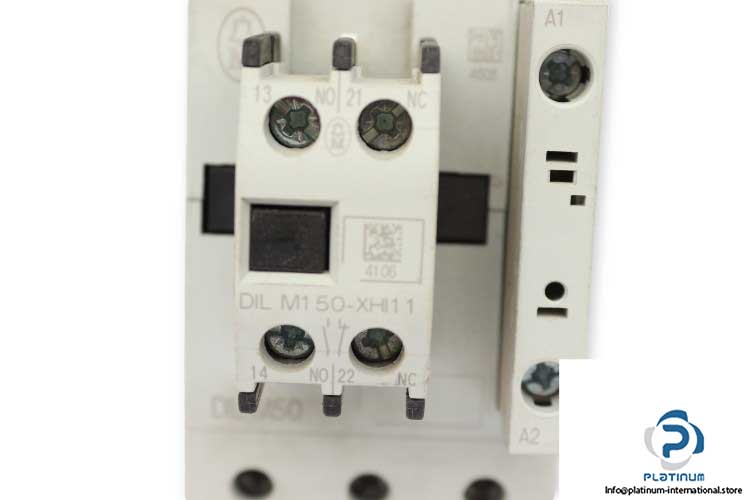

Part No.: DIL M150-XHI 1 1
Art. No.: 277830

Coil voltage: 230 V AC@50 Hz,240 V AC@60 Hz
Rated Operational Current Ie (AC-3): 50 A
Rated Current le: 6 A@230 V AC,4 A@400 V AC,1.5 A@500 V AC
Rated impulse withstand voltage (Uimp): 6000 V AC
Thermal current (Ith): 16 A
Standard: IEC/EN 60947
General use: 600 V AC,1.5 A/250 V DC,1 A
Torque: 1.2 Nm
No. of Contact as a main contact: 1 Normally open contact, 1 Normally closed contact
Rated power: 22 kW@400 V
