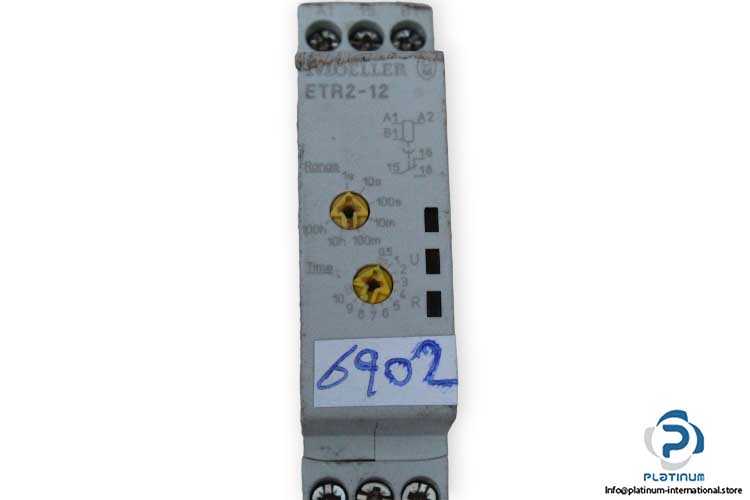

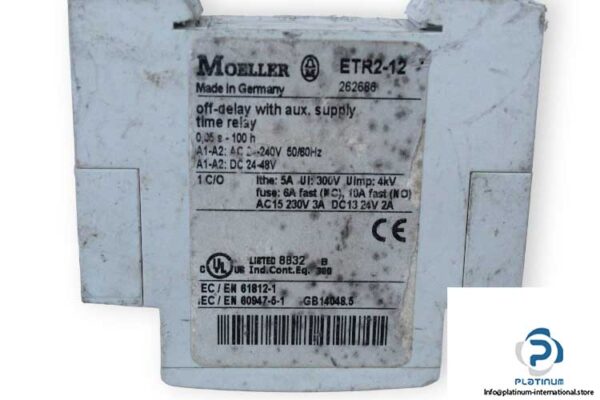

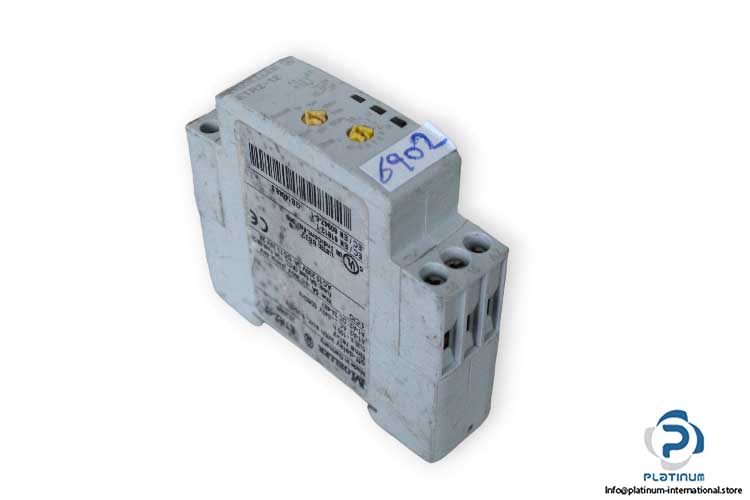

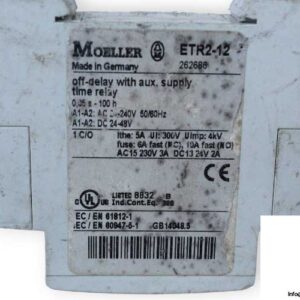

Moeller ETR2-12 Time Relay
Manufacturer: Moeller
Type: Time Relay
Model: ETR2-12
Part No: 262686
Operating Voltage: 24 … 240 V AC/ 24 … 48 V DC
Time Range: 0.05 s … 100 h
Contact Configuration: 1 Changeover
Contact Voltage: 230 V AC/ 24 V DC
Contact Current: 3 A (AC), 2 A (DC)
Insulation Voltage: 300 V
Thermal Current: 5 A
Impulse withstand Voltage: 4 kV
Operating Temperature: -25 … 60 °C
Degree of protection: IP20
Dimensions: 63 X 70 X 17.5 mm
