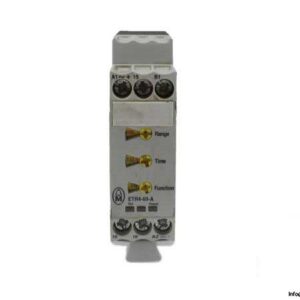

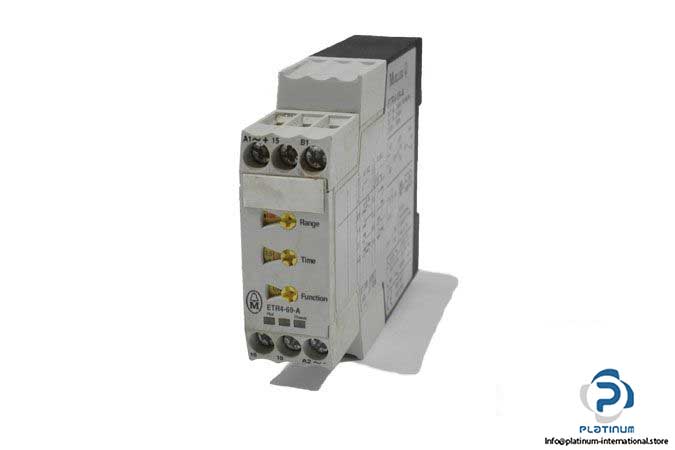

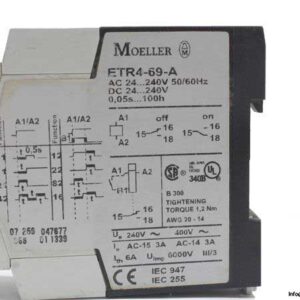

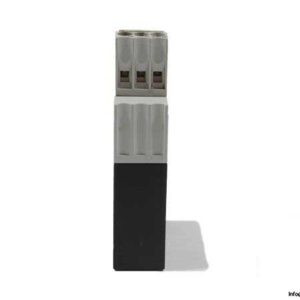

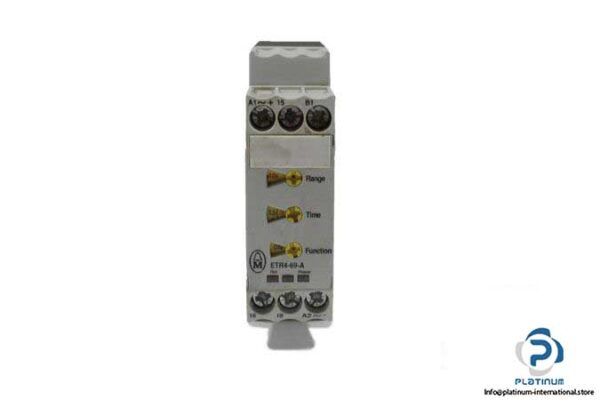

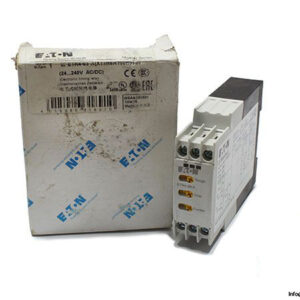

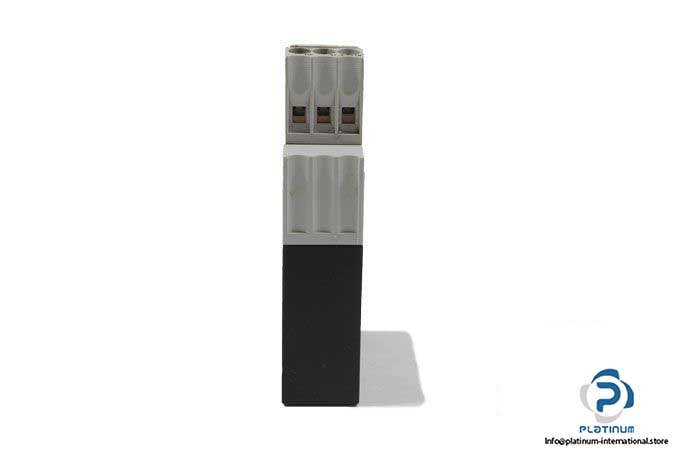

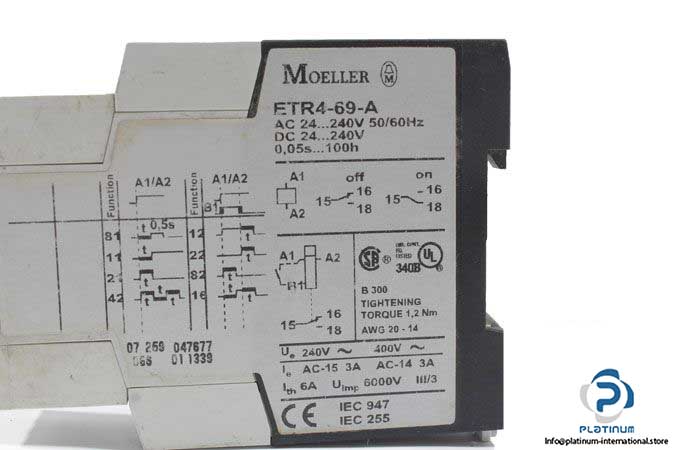

Moeller ETR4-69-A Timer Relay

Manufacturer: MOELLER EATON

Type: Timer Relay

Model: ETR4-69-A

Alternative Model: XTTR6A100H69B

Function:

• Multi-functional
• On-delayed
• Off-delayed
• Fleeting contact on energization
• Fleeting contact on de-energization
• Flashing, pulse initiating
• On- and Off-delayed
• Pulse forming
• Pulse generating

Voltage range: 24 … 240 V AC/DC

Frequency: 50 … 60 Hz

Current: 3 A

Electric Connection: Screw Connection

Number Contacts: 1 of Changeover

Time Range: 0.05 s … 100 h

Degree of Protection: IP20

Ambient Temperature: -45 … 85 °C

Dimensions: 22.5 x 103 x 82.5 mm

Weight: 0.1 kg
