Moeller HI11-P1/P3 Auxiliary Contact Block
Used
In stock1 unitReady to ship
Auxiliary Contact Block
MOELLER rotary disconnect auxiliary contact block with 1 NO and 1 NC contact, rated at 600 V AC and 10 A, designed for industrial control and signaling applications.1NC1NOaccessoryAuxiliaryBlockContactControlDisconnectHI11-P1/P3IndustriallowMoellerRotarySwitchvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

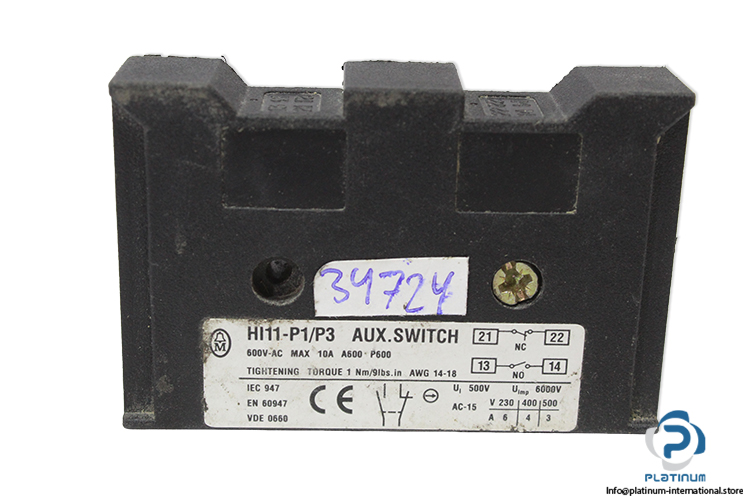

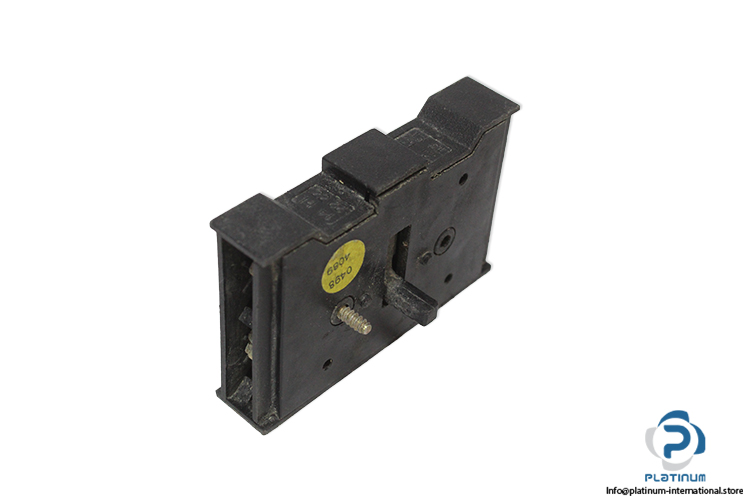

MOELLER HI11-P1/P3 Rotary Disconnect Auxiliary Contact Block
The MOELLER HI11-P1/P3 auxiliary contact block is designed for use with rotary disconnect switches, providing reliable signaling and control functions in industrial electrical systems. It supports both normally open and normally closed contacts, ensuring flexible integration into control and monitoring circuits.
Manufacturer: MOELLER
Type: Rotary Disconnect Auxiliary Contact Block
Model: HI11-P1/P3
| Series | P1 |
| Rated Operational Voltage | 600 V AC |
| Rated Operational Current | 10 A |
| Frequency | 50 “ 60 Hz |
| Rated Insulation Voltage | 500 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Number of Poles | 2-Pole |
| Contact Configuration | 1 NO + 1 NC |
| Dimensions | 83 x 15 x 41 mm |
