Moeller M22-IY1 Surface Mounting Enclosure
New
In stock2 unitsReady to ship
Moeller Surface Mounting Enclosure M22-IY1
Yellow plastic enclosure with IP67/IP69K protection, multiple knockouts, and 22.5 mm opening diameter. Dimensions: 56 x 72 x 80 mm.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Moeller Surface Mounting Enclosure M22-IY1

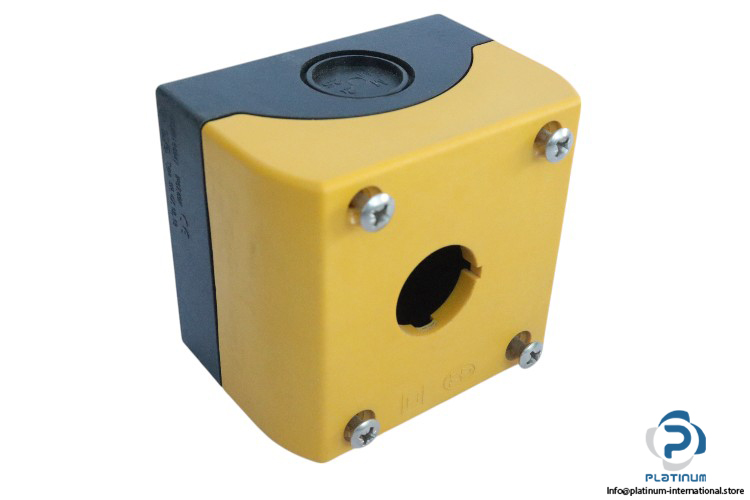

The Moeller M22-IY1 Surface Mounting Enclosure is a durable and versatile solution for industrial applications. Featuring a yellow plastic housing with high-grade steel screws, it ensures reliability in harsh environments. With multiple knockouts and a degree of protection rated at IP67/IP69K, this enclosure is designed for flexibility and robust performance.
- Manufacturer: Moeller
- Type: Surface Mounting Enclosure
- Model: M22-IY1
- Part No.: 216536
- Enclosure Color: Yellow
- Enclosure Material: Plastic
- Fitted With: High-grade steel screws
- Knockouts:
- 2 x M20/25 (Cable entry knockout at the side, 1 x each side)
- 1 x M20 (Cable entry knockout at the top)
- 2 x M16 (Cable entry knockouts at the rear)
- Degree of Protection: IP67/IP69K
- Opening Diameter: 22.5 mm
- Ambient Temperature: -25 to 70 °C
- Dimensions (H X W X D): 56 x 72 x 80 mm
