Moeller M22-KC01 Contact Module
Used
In stock1 unitReady to ship
Pushbutton Contact Module
The Moeller M22KC01 pushbutton contact module offers reliable performance with a rated insulation voltage of 500 V and a robust IP20 rating. Ideal for AC-15 and DC-13 circuits, it provides smooth operation across varying voltage levels.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

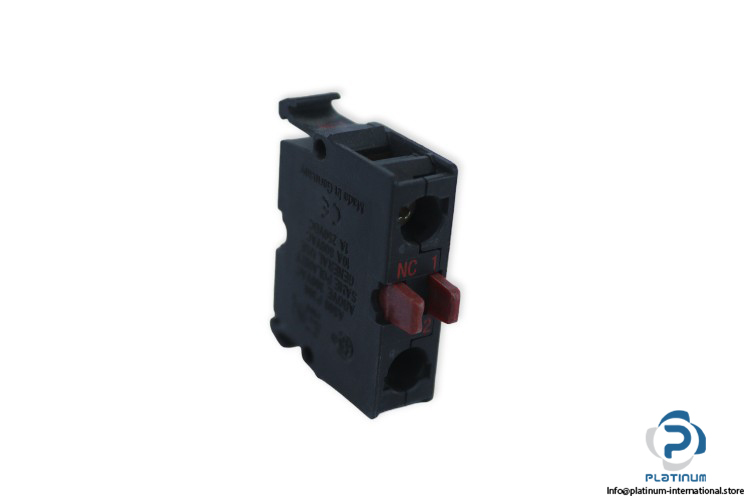

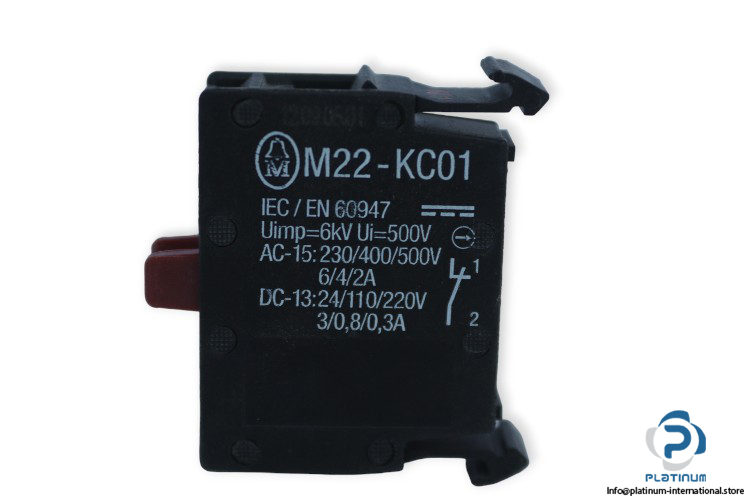

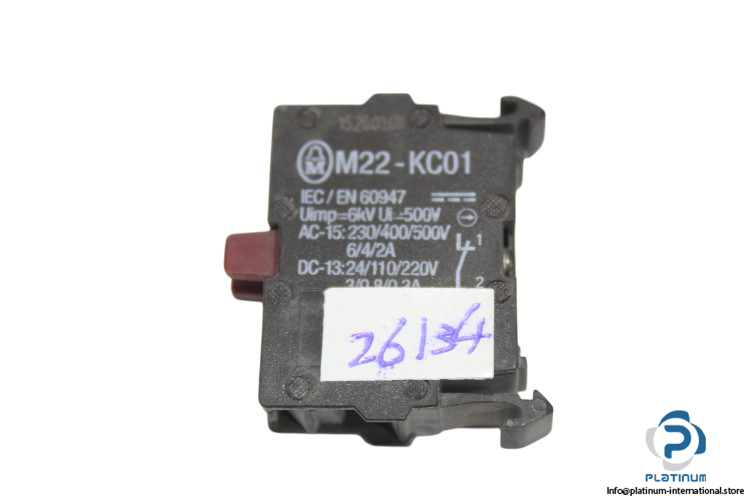

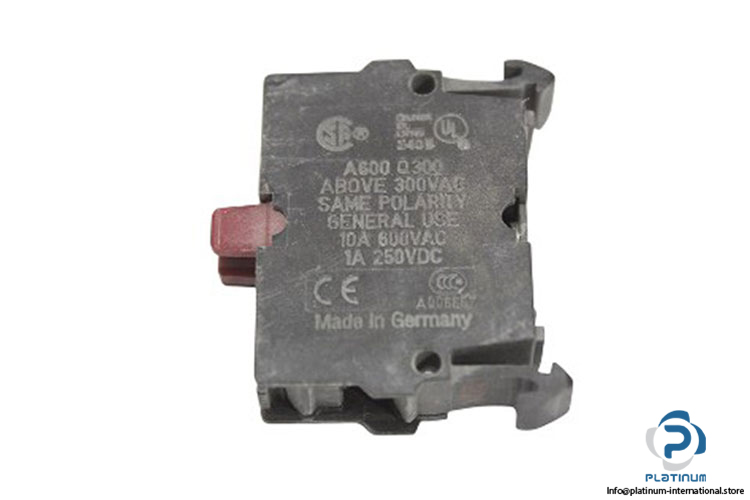

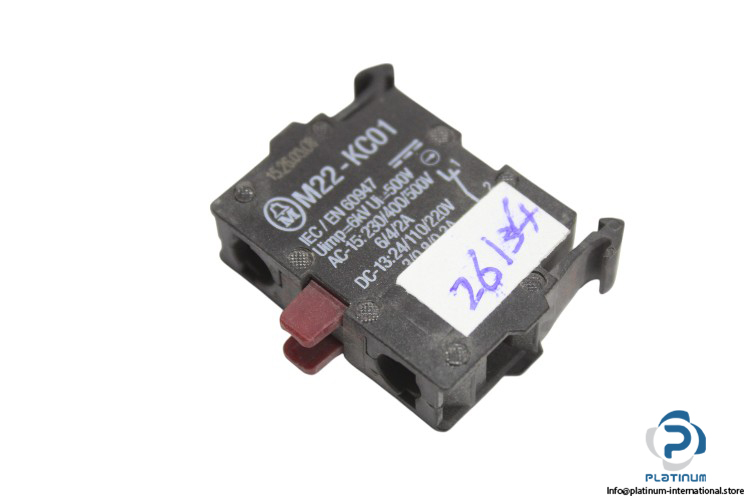

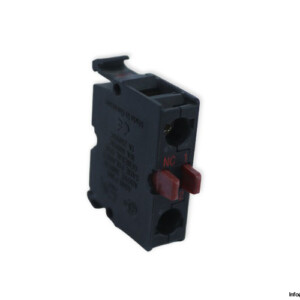

Moeller M22KC01 “ Pushbutton Contact Module
The Moeller M22KC01 pushbutton contact module is engineered for reliable performance in industrial applications. Designed for easy integration, it features screw connections and a robust IP20 rating, making it a durable choice for diverse environments.
Manufacturer: Moeller
Type: Pushbutton Contact Module
Model: M22KC01
Part No.: 15.26.00.00
Product Tradename: M22
Rated Operational Current (Ie) at AC-15:
Rated Operational Current (Ie) at DC-13:
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| At 230 V | 6 A |
| At 400 V | 4 A |
| At 500 V | 2 A |
| At 24 V | 3 A |
| At 110 V | 0.8 A |
| At 220 V | 0.3 A |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Contact | 1 Normally closed |
| Electric Connection Type | Screw connection |
| Pollution Degree | 3 |
| Operating Torque | 0.8 N·m |
| Standard | IEC/EN 60947 |
| Degree of Protection | IP20 |
| Ambient Operating Temperature | -25 to 70°C |
| Dimensions | 38 x 10 x 32 mm |
