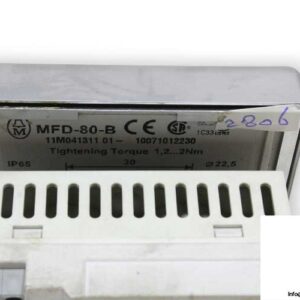

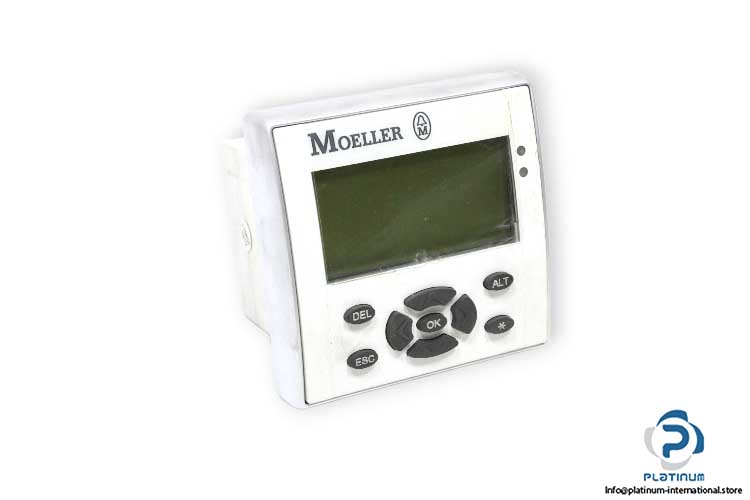

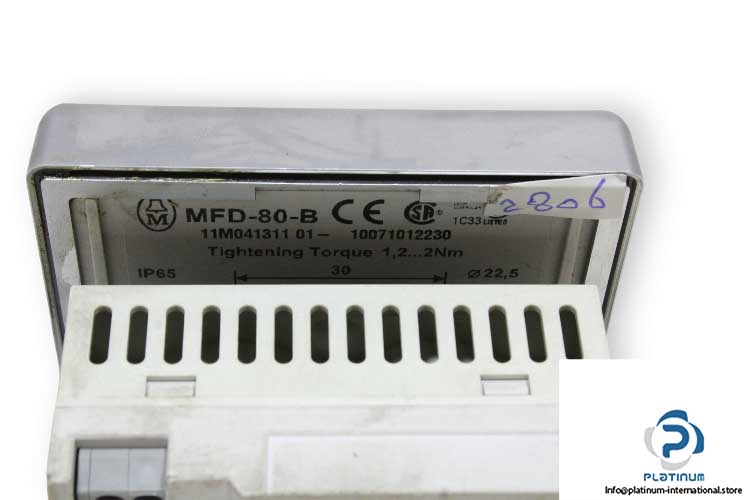

Moeller MFD-80-B Multi-Function Display

Manufacture: Moeller
Type: Multi-Function Display
Model: MFD80B
Part No.: 11M041311 01-10071012230

Features:
*Operator interface module
*Graphical display 132 x 64 pixels
*Switch able backlight
*Freely definable status LEDs red + green
*Individual laser inscription via MFD combination*
*Removable Titan front frame
*NEMA 3R, 12; IP65
*Tightening Torque: 1.2 … 2Nm
*Illuminated keypad with:
4 cursor buttons
4 function buttons
1 mode button
Dimensions: 86.5 x 86.5 x 42 mm
Consist of:

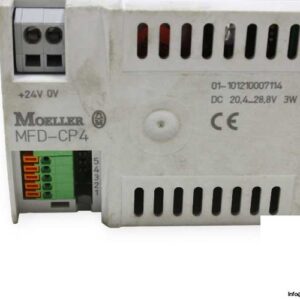

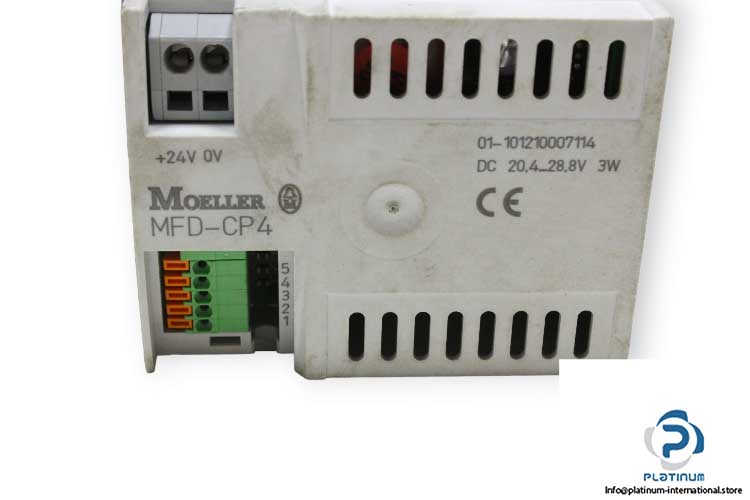

MOELLER MFD-CP4 COMMUNICATION MODULE
Manufacture: Moeller
Type: Communication Module
Model: MFD-CP4
Part No.: 01-101210007114
Voltage: 24 V DC (20.4 … 28.8 V DC)
Power: 3 W
