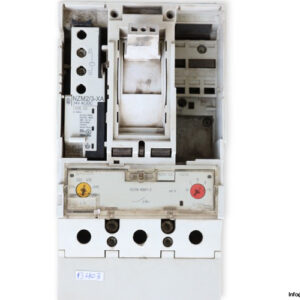

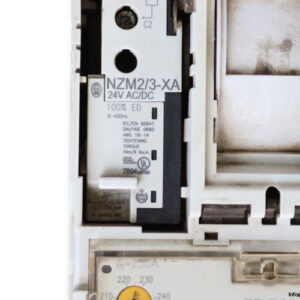

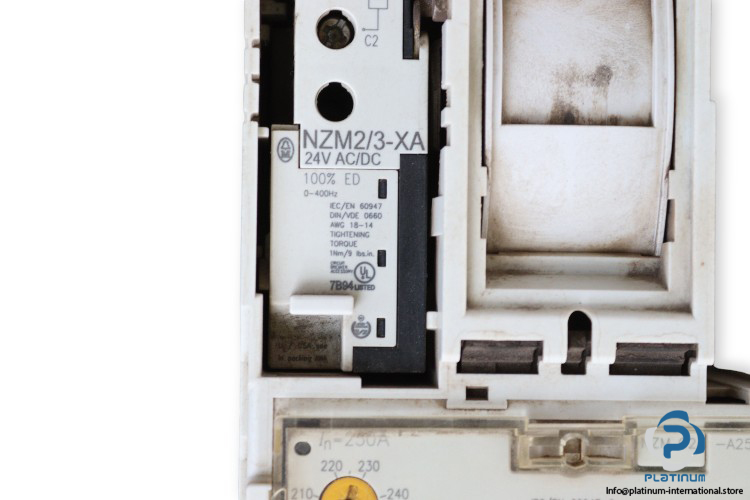

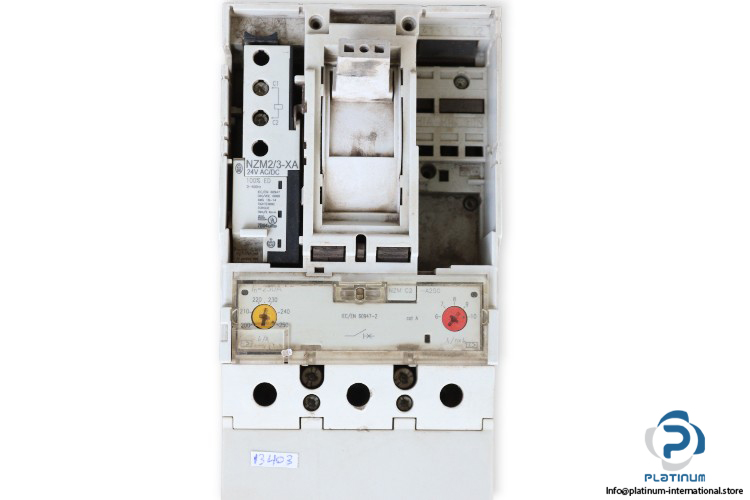

Moeller NZM2/3-XA24AC/DC Shunt Release

Eaton Moeller NZM2/3-XA24AC/DC Shunt Release

The Eaton Moeller NZM2/3-XA24AC/DC is a compact and efficient shunt release accessory designed for use with NZM2 and NZM3 circuit breakers. Operating at a rated control voltage of 24 V AC/DC, this device ensures fast disconnection of the breaker with a typical opening delay of just 20 ms. It supports bolt-type connections and integrates seamlessly into electrical panels for enhanced circuit protection. With a power consumption of 2.5 VA/W and a rugged construction, the NZM2/3-XA24AC/DC is ideal for industrial applications requiring remote trip functionality without auxiliary contacts.

• Manufacturer: Eaton Moeller
• Type: Shunt Release
• Model: NZM2/3-XA24AC/DC

Technical Specifications:

• Product Range: Accessories
• Rated Control Voltage (Us): 24 V AC/DC
• Frequency: 50/60 Hz or 200/400 V DC
• Maximum Opening Delay: 20 ms
• Connection Type: Bolt connection
• Auxiliary Contacts: Without
• Power Consumption: 2.5 VA/W
• Dimensions (H x W x D): 90 x 30 x 42 mm

Applications:

• Remote tripping of circuit breakers
• Motor control centers and switchgear
• Industrial automation systems
• Electrical distribution panels
