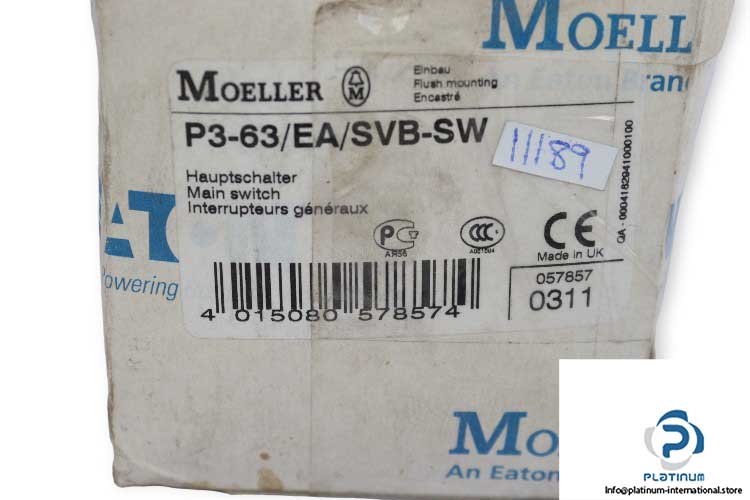

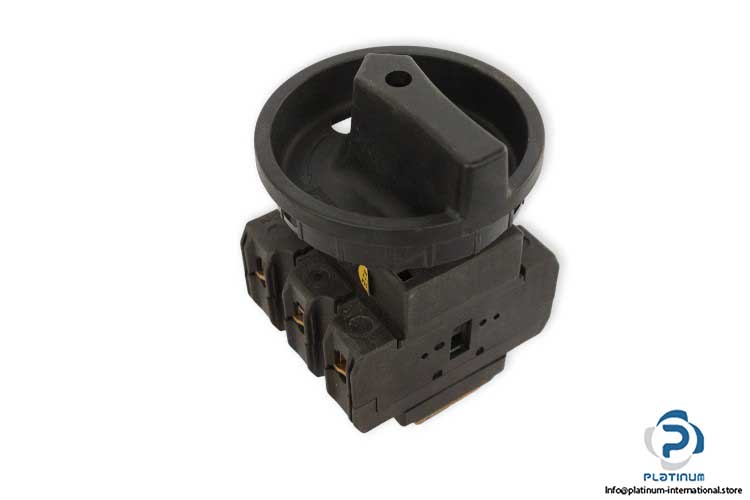

Moeller P3-63/EA/SVB-SW Main Switch

Manufacture: Moeller
Type: Main switch
Model: P363/EA/SVBSW
Part No.: 057857

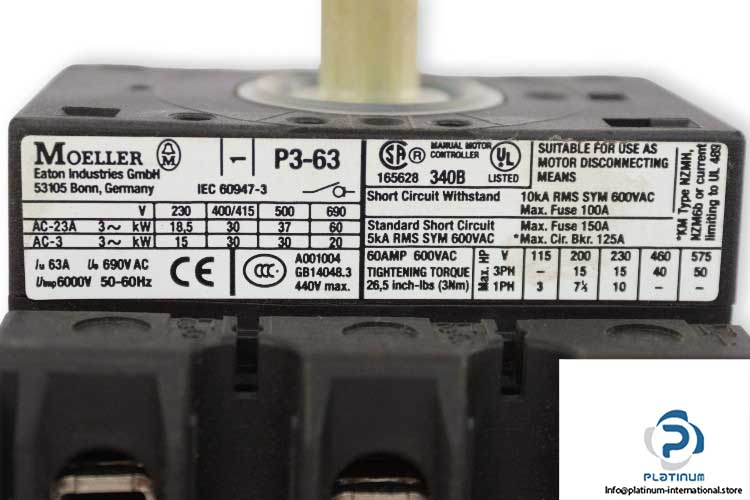

Rated impulse withstands voltage (Uimp): 6000 V AC
Rated operating voltage Ue: 690 V AC
Frequency: 50 … 60 Hz
Conditioned rated short-circuit current Iq: 100 Ka
Rated short-time withstand current lcw: 1.26 kA
Rated breaking capacity: 600 A at 400/415 V
Rated operational current (Ie): 55 A at AC-3, 380 V, 400 V, 415 V
Rated operational current (Ie): 63 A at AC-23A, 400 V, 415 V
Rated operational current (Ie): 50 A at DC-23A, 24 V
Rated operational power: 30 kW at AC-3, 400/415 V
Rated operational power: 30 kW at AC-23A, 400/415 V
Rated uninterrupted current (Iu): 63 A
Switching capacity (auxiliary contacts, general use): 10 A
No. of switches: 1
Pollution degree: 3
Mounting method: Flush mounting
No. of poles: 3
Type of electrical connection of main circuit: Screw connection
Degree of protection (front side): IP65
Ambient operating temperature: -25 … 50°C
Tightening torque: 26.5 lb-in
Standard: IEC 60947-3
Screw size: M5, Terminal screw
Dimensions: 128 x 102 x 87 mm
