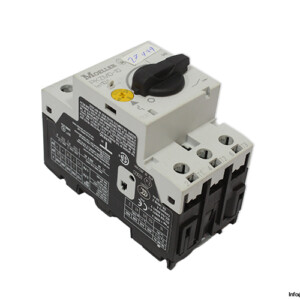

Moeller PKZM0-10 SER.02 Motor Protective Circuit Breaker
New
In stock4 unitsReady to ship
Motor Protective Circuit Breaker
Moeller PKZM0-10 thermomagnetic motor protective circuit breaker rated 10 A with 690 V AC operational voltage, screw terminals, and reliable overload and short-circuit protection.10690aBreakerCircuitIndustrialMoellermotorPKZM0-10ProtectioProtectionProtectivescrewStarterSwitchterminalThermomagneticV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Moeller PKZM010 Motor Protective Circuit Breaker
The Moeller PKZM0-10 motor protective circuit breaker is designed for reliable motor protection in industrial electrical systems. It provides thermomagnetic protection against overload and short circuit conditions, ensuring safe and efficient motor operation.
Manufacturer: Moeller
Type: Motor Protective Circuit Breaker
Model: PKZM0-10
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Operational Current (Ie) | 10 A |
| Rated Frequency | 50/60 Hz |
| Connection Technique | Screw Terminals |
| Control Element Type | Turn Button |
| Switch Off Technique | Thermomagnetic |
| Operating Temperature | -25 / 55 °C |
| Protection Class | IP00, IP20 |
| Dimensions | 93 X 45 X 76 mm |
| Motor Power Rating 220/230/240 V AC | 2.2 kW |
| 380/400/415 V AC | 4 kW |
| 440 V AC | 4 kW |
| 500 V AC | 4 kW |
| 660/690 V AC | 7.5 kW |
