Moeller PKZM0-2,5 Circuit-Breaker

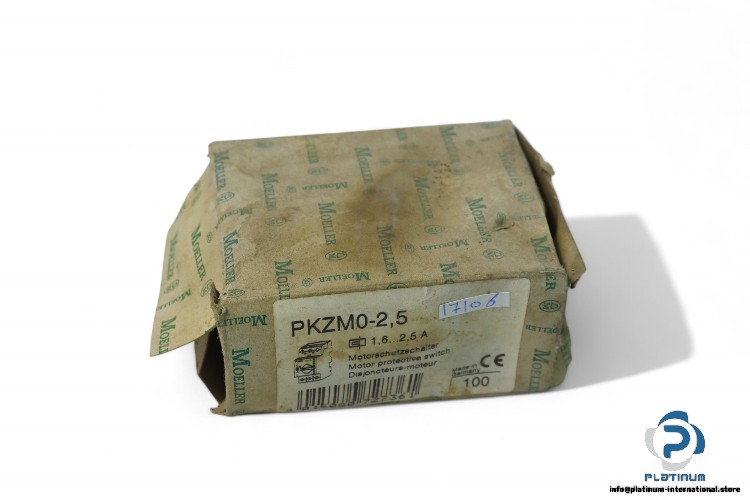

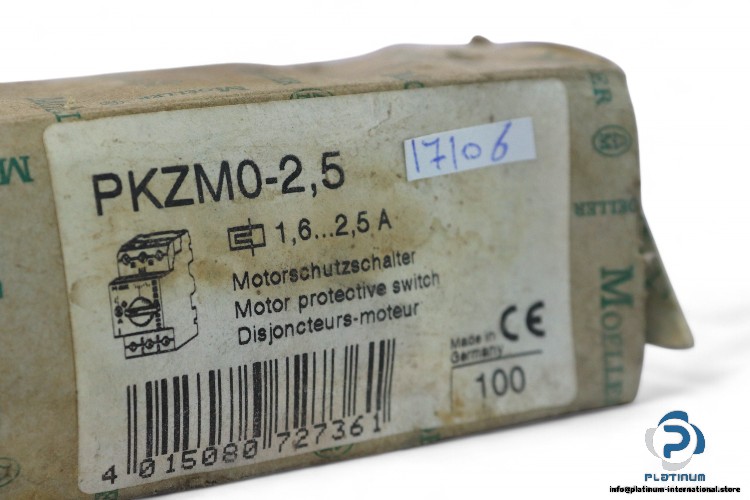

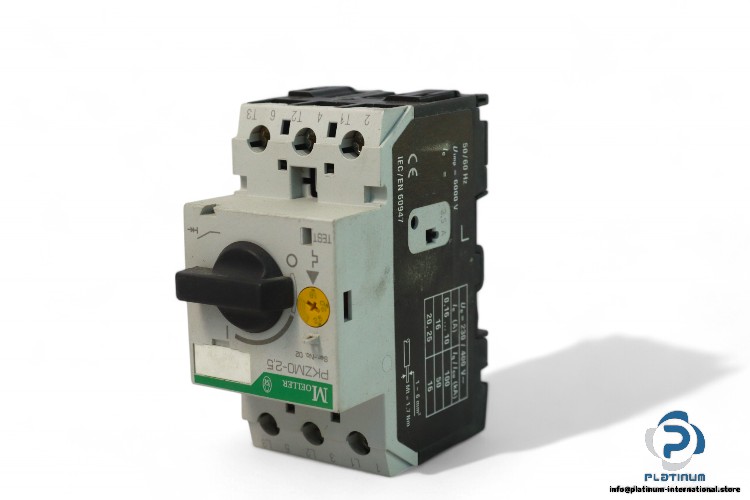

EATON MOELLER Motor-Protective Circuit-Breaker PKZM0-2,5

The EATON MOELLER Motor-Protective Circuit-Breaker PKZM0-2,5 is a reliable and efficient solution for motor protection in industrial and commercial electrical systems. With a three-pole design and a wide operating voltage range, this circuit breaker ensures optimal protection and performance.

Technical Specifications:

• Model: PKZM0-2,5
• Number of Poles: Three-pole
• Connection: Screw terminals
• Operating Voltage: 230 – 400 V

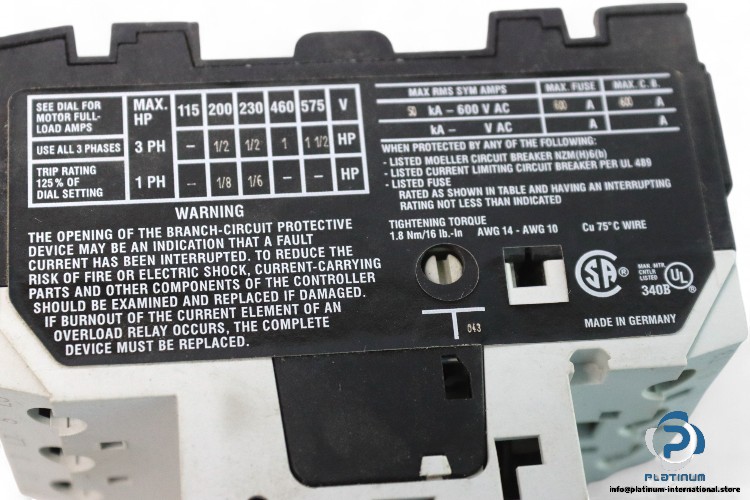

• Tightening Torque:
  • 1.7 Nm, Screw terminals (Main cable)
  • 1 Nm, Screw terminals (Control circuit)
• Rated Operational Current (Ie): 2.5 A
• Degree of Protection: IP20
• Rated Operational Power:
  • 0.75 kW at AC-3, 380/400 V, 50 Hz
  • 1.1 kW at AC-3, 440 V, 50 Hz

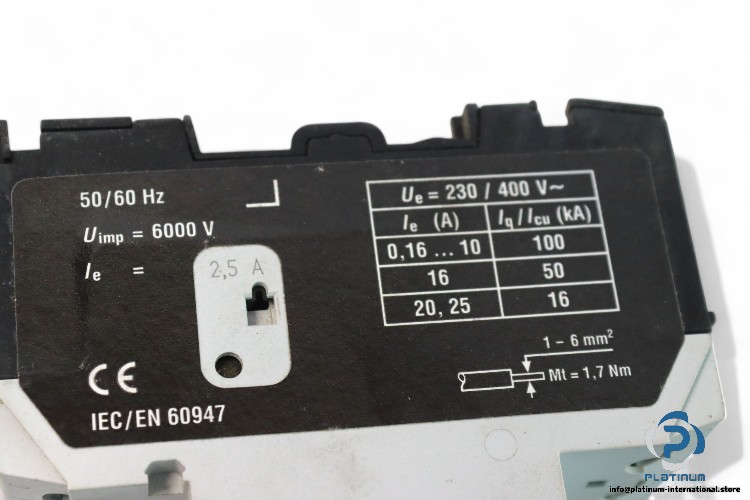

• Rated Impulse Withstand Voltage (Uimp): 6000 V AC
• Operating Temperature: -25 / 55 °C
• Dimensions: 93 x 45 x 76 mm
• Category: Circuit Breakers

The EATON MOELLER PKZM0-2,5 circuit breaker provides superior protection for motors and control circuits, helping to prevent electrical faults and ensure safe operation. Trust Platinum International for premium industrial electrical protection solutions.
