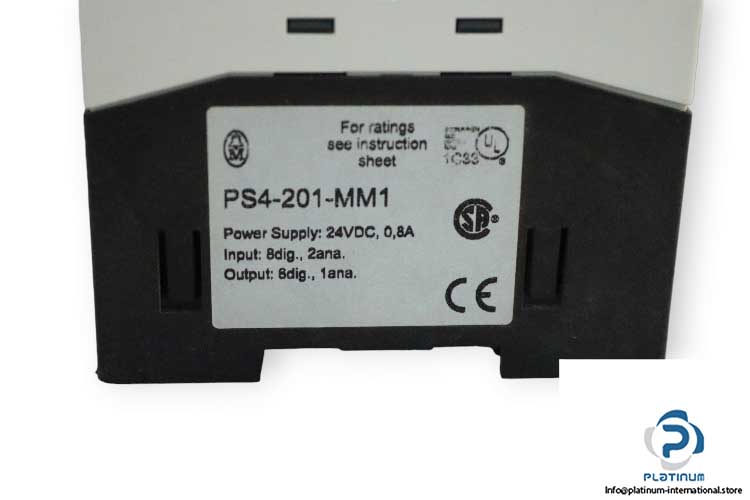

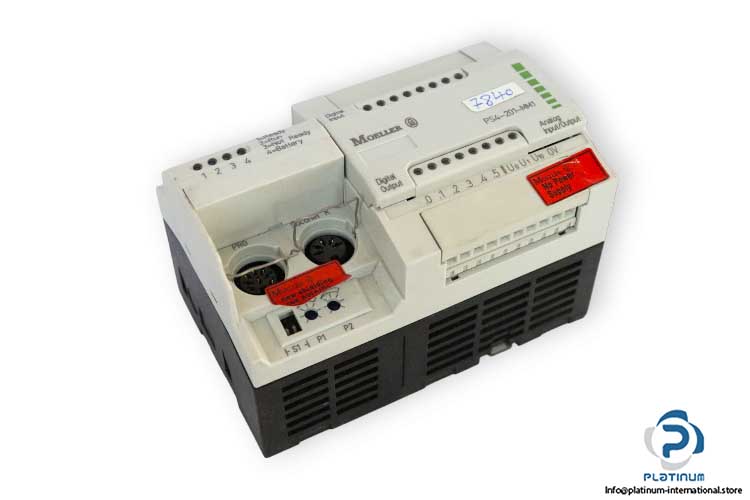

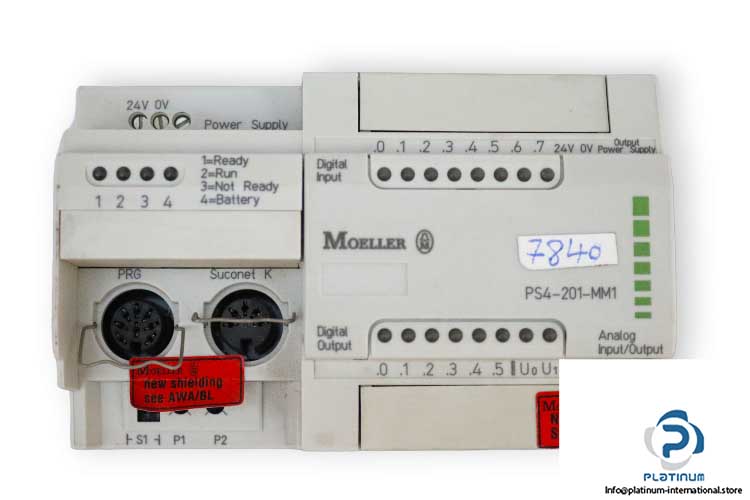

Moeller PS4-201-MM1 Compact Programmable Logic Controller

Manufacture: Moeller
Type: Compact Programmable Logic Controller
Model: PS4201MM1

Supply voltage: 24 V DC
Current: 0.8 A
Rated insulation voltage Ui: 600 V AC
No. of Digital inputs (DI): 8
No. of Digital outputs (DO): 6
No. of analog input (AI): 2
No. of analog output (AO): 1
Operating mode: Master/slave
Terminals: Plug-in screw terminals
Degree of protection: IP 20
Network interface: RS 485
Data cable length: 600 m/300 m
Transfer rate: 187.5 kBit/s to 375 kBit/s
Ambient temperature: 0 … 55 °C
Dimensions: 87 x 134.5 x 87.5 mm
