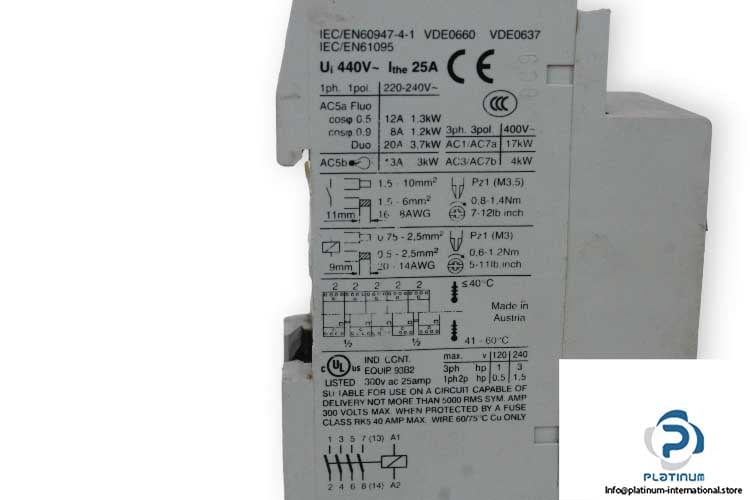

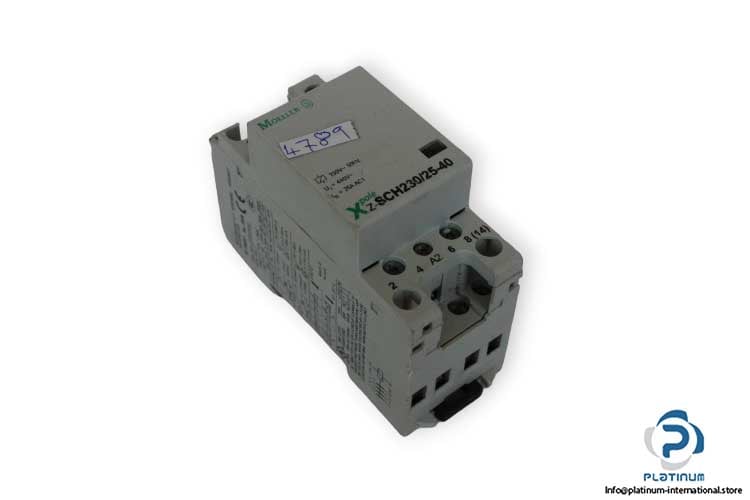

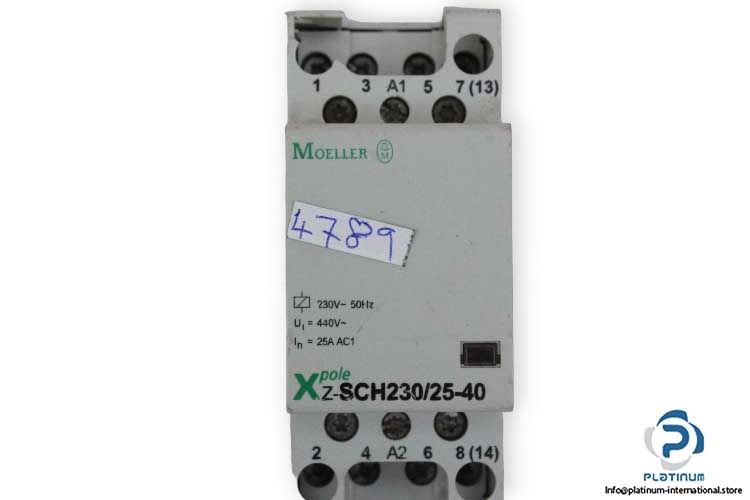

Moeller Z-SCH230/25-40 Installation Contactor

Manufacturer: MOELLER
Type: Installation contactor
Model: Z-SCH230/25-40

Supply voltage: 230 VAC
Frequency: 50 hz
Number of contacts (normally open contacts): 4
Number of modular spacings: 2
Rated operating voltage (Ue) – max: 440 V
Rated operating voltage (Ue) – min: 440 V
Rated operational current for specified heat dissipation (In): 25 A
Built-in depth: 60 mm
Degree of protection: IP40
Equipment heat dissipation, current-dependent: 10 W
Frequency rating: 50 Hz
Temperature Range: -40 … 60°C
Dimensions: 85 x 60 x 35 mm
