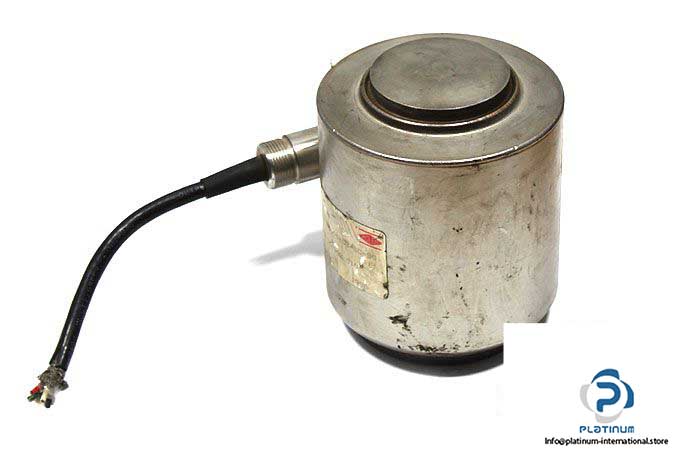

MOLEN CSB-M-40t-C3-SC-SS MAX 40000 KG COMPRESSION LOAD CELL

Manufacturer: MOLENSCHOT

Type: Compression Load Cell

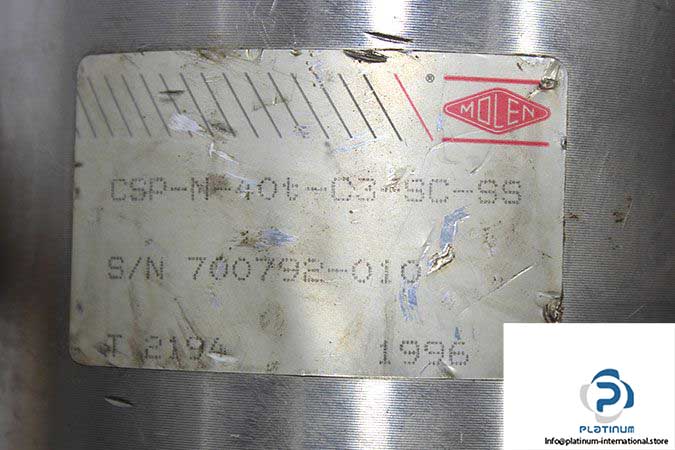

Model: CSB-M-40t-C3-SC-SS

Maximum weight limit (E max): 40000 kg (40 t)

Rated Output: 2 ±mV/V

Excitation Voltage: 5…20 V

Maximum Excitation Voltage: 25 V

Input Resistance: 450±4.5 Ω

Output Resistance: 40±4. Ω

Operating Temperature: -40…80 °C

Class: C3

Protection Class: IP66/68

Weight: 5.040 kg
