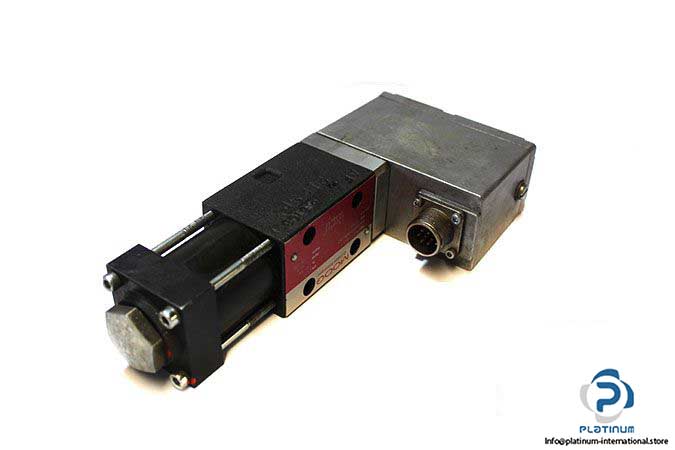

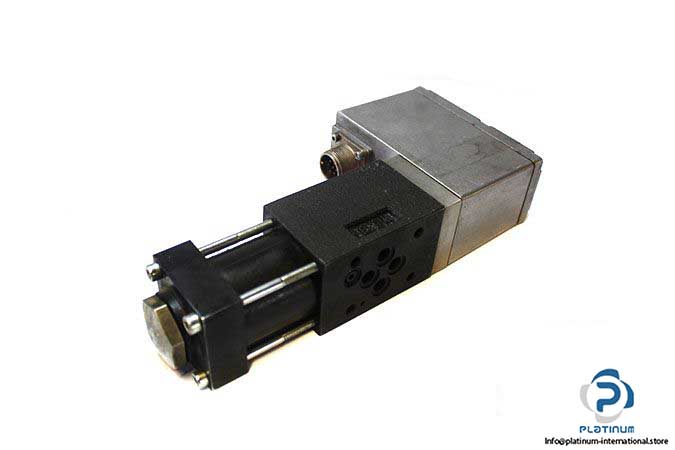

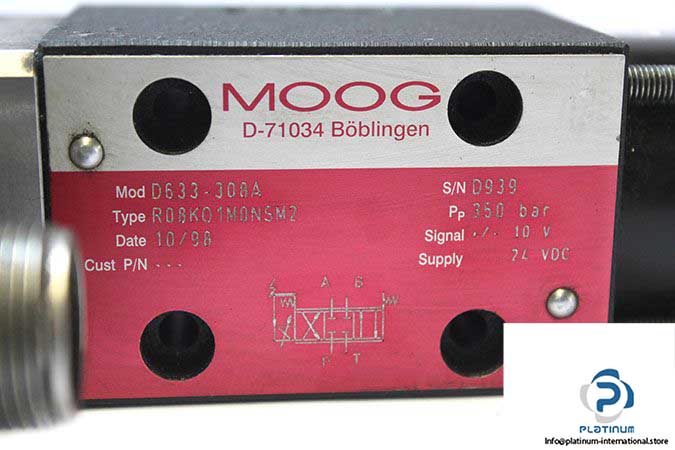

Moog D633-308A Direct Drive Analog Control Servo Valve

Manufacturer: MOOG

Type: Direct Drive Analog Control Servo Valve

Model: D633-308A

Type Designation: R08KO1M0NSM2

Size: 03

Ambient Temperature Range: -20……+60 ^oC

Max. Operating Pressure Port P, A, B: 350 bar

Max. Operating Pressure Port T Without Y: 50 bar

Max. Operating Pressure Port T With Y: 350 bar

Maximum Flow: 75 l/min

Temperature Range: -20……+80 ^oC

Supply Voltage: 24V DC

Signal: +/- 10 V

Weight: 2.60 kg
