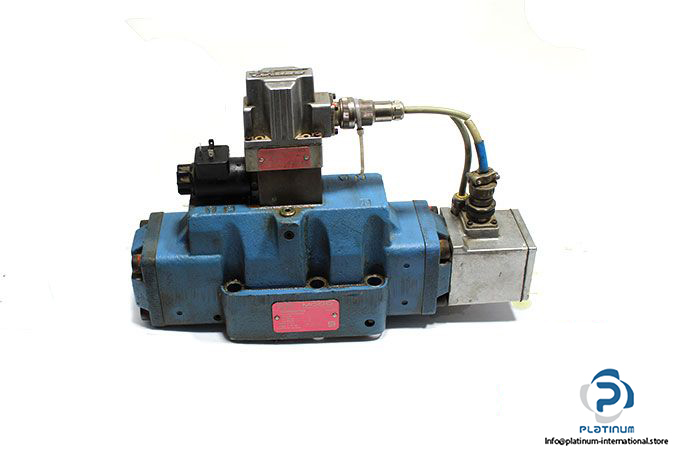

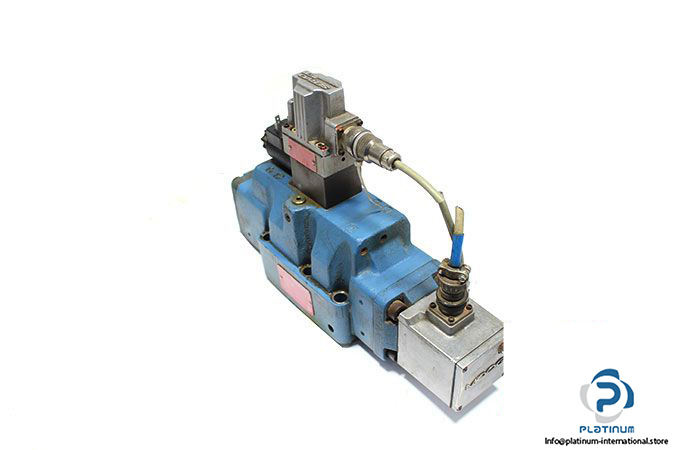

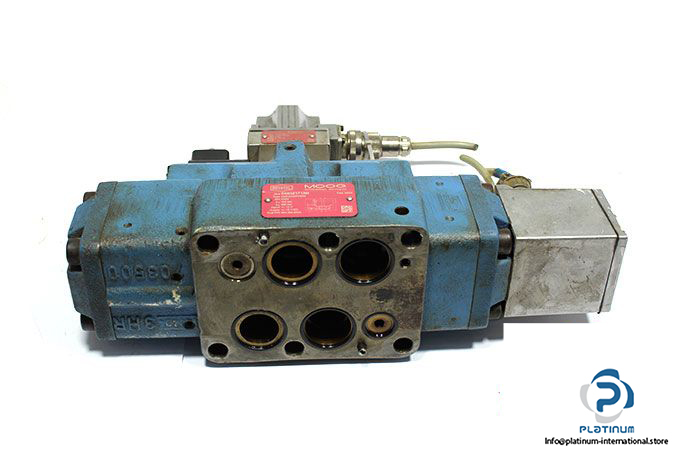

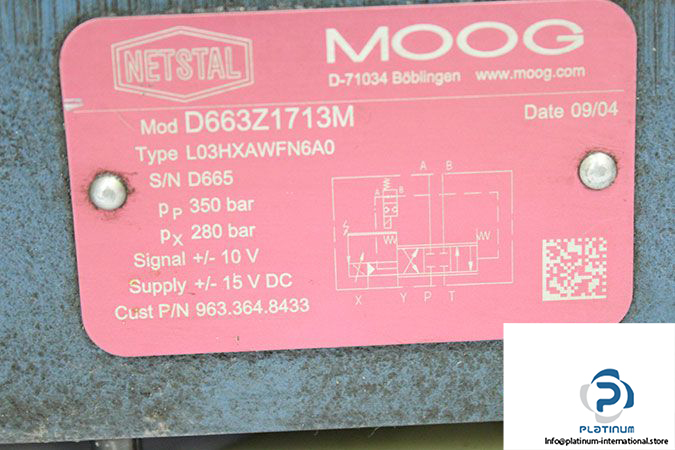

Moog D663Z1713M Servo-Proportional Control Valve

Manufacturer: MOOG

Type: Servo-Proportional Control Valve

Model: D663Z1713M

Alternative Model: L03HXAWFN6A0

Flow Rate: 350 l/m

Operating Pressure: 350 bar

Response Time: 37.0 ms

Signal: ±10 V

Voltage Supply: ±15 VDC

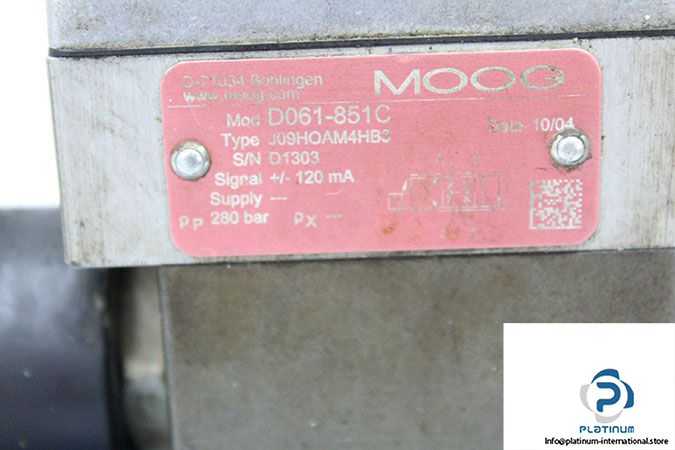

Attachment: MOOG D061-851C PILOT SINGLE STAGE SERVO VALVE

Manufacturer: MOOG

Type: Pilot Single stage servo valve

Model: D061-851C

Alternative Model: J09HOAM4HB3

Pilot Connections: X and Y

Pilot Pressure: 280 bar

Signal: ±120 Ma

Attachment: MOOG B97012-24 TOW WAY VALVE

Operating Pressure: 350 bar

Weight: 18.24 kg
