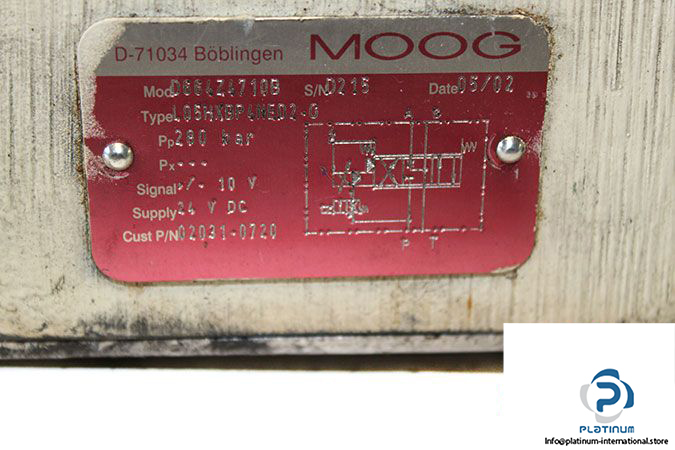

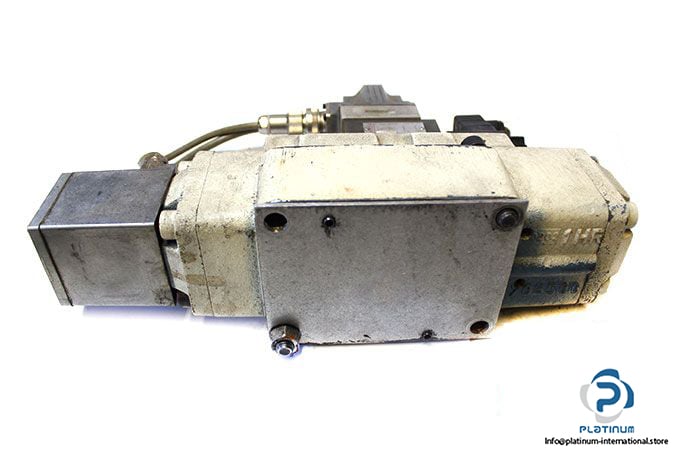

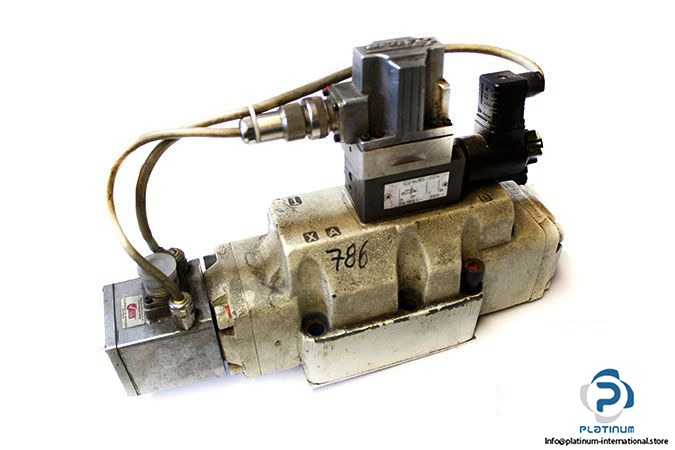

Moog D664Z4710B Servo Proportional Control Valve

Manufacturer: MOOG

Type: Servo Proportional Control Valve

Model: D664Z4710B

Type Designation: L05HXBP4NED2-G

Max. Operating Pressure Port P, A, B: 350 bar

Max. Operating Pressure Port T With Y Internal: 140 bar

Max. Operating Pressure Port T With Y External: 350 bar

Pilot Stage Regular Version: 280 bar

Flow Rate: 550 l/min

Response Time: 48 ms

Signal: 10 V

Supply: 24 V DC

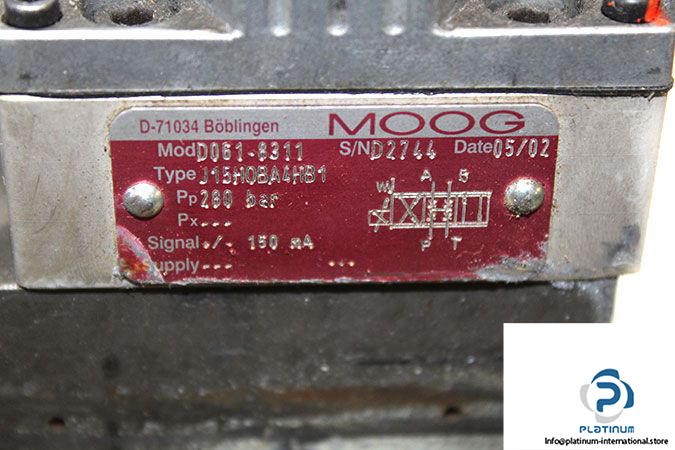

Attachment: MOOG D061-8311 PILOT STAGE SERVO VALVE

Manufacturer: MOOG

Type: Pilot stage servo valve

Model: D061-8311

Type Designation: J15H0BA4HHB1

Pilot Connections: X and Y

Pilot Pressure: 200 bar

Signal: ±150 Ma

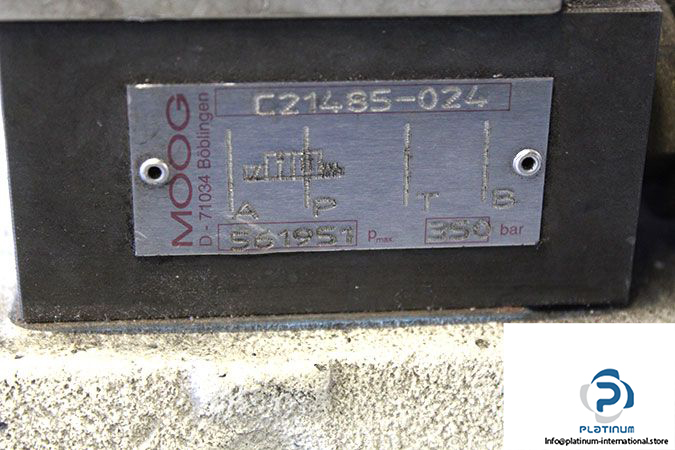

Attachment: MOOG C21485-024 TOW WAY VALVE

Manufacturer: MOOG

Model: C21485-024

Operating Pressure: 350 bar

Weight: 20.3 kg
