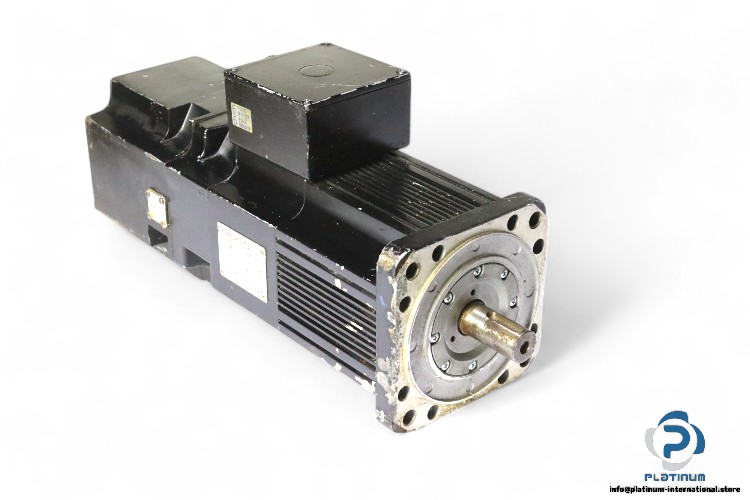

Moog FAS T-2-M2-045-26-06-00 Brushless Servomotor

MOOG FAS T-2-M2-045-26-06-00 BRUSHLESS SERVOMOTOR

The MOOG FAS T-2-M2-045-26-06-00 Brushless ServoMotor is designed for high-performance precision applications. With a rated torque of 7.5 Nm and a peak torque of 25 Nm, this motor offers reliable operation at speeds of up to 4500 RPM. It is ideal for applications requiring efficient power and high reliability in demanding environments.

Manufacturer: MOOG

Type: Brushless ServoMotor

Model: FAS T-2-M2-045-26-06-00

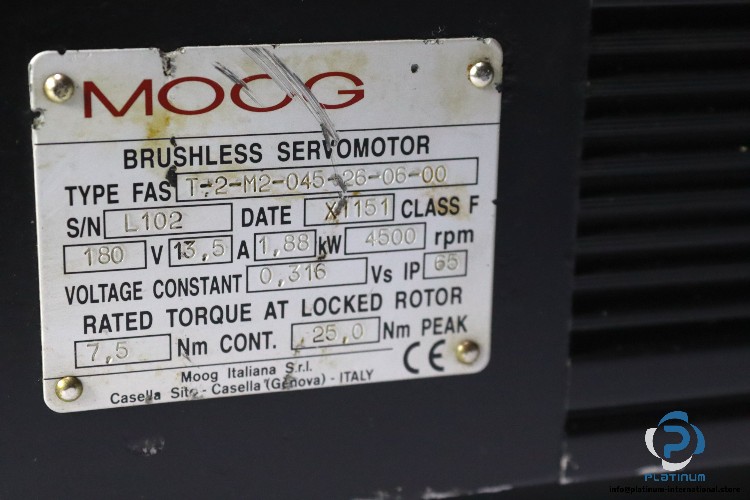

Technical Specifications

• Rated Voltage: 180 V
• Rated Speed: 4500 RPM
• Rated Torque: 7.5 Nm
• Peak Torque: 25 Nm
• Rated Power: 1.88 kW
• Rated Current: 13.5 A
• Voltage Constant: 0.316 vs
• Insulation Class: F
• Protection Class: IP65
