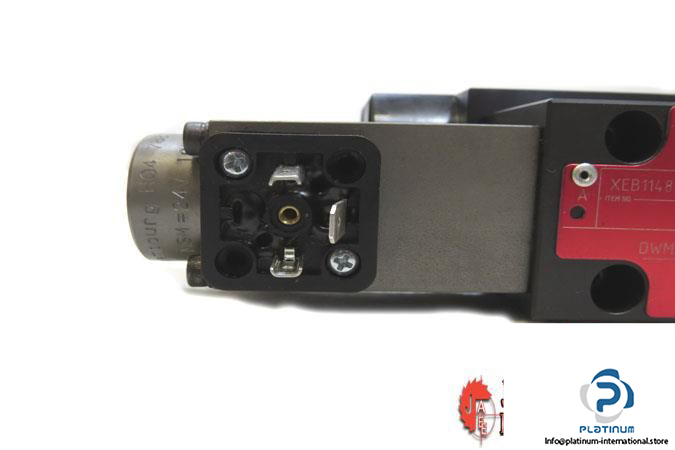

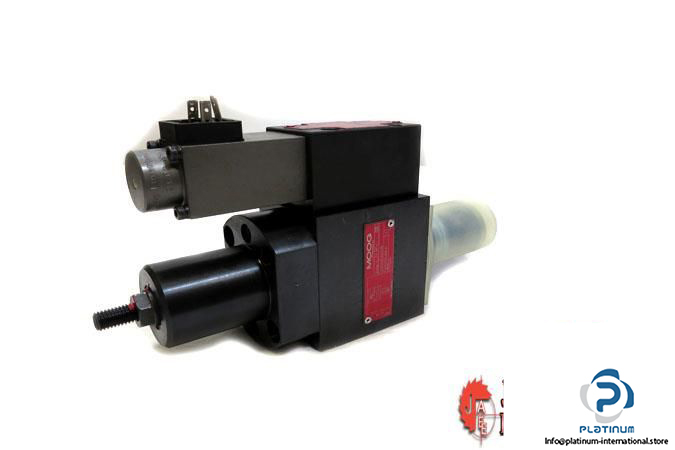

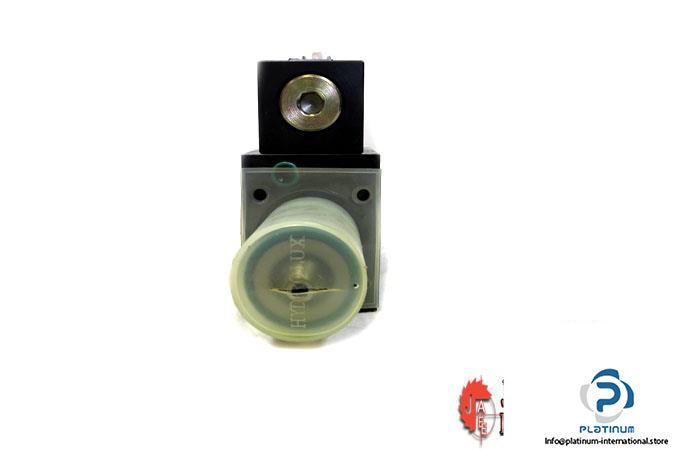

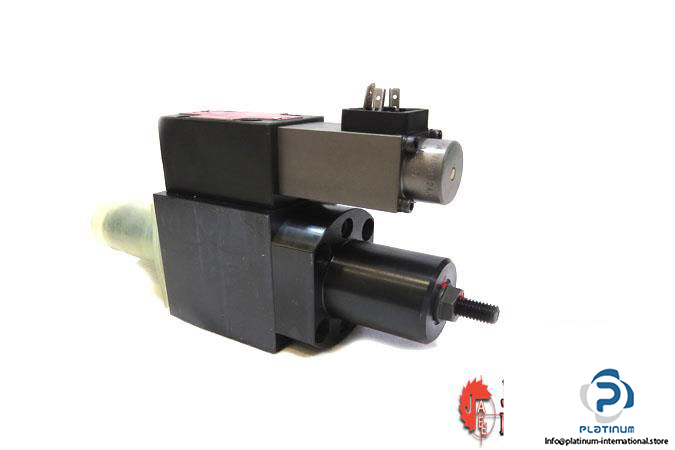

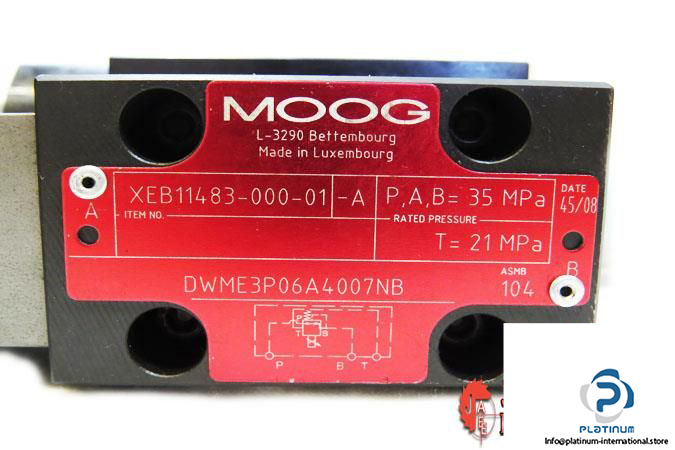

Moog XEB11483-000-01 Proportional Throttle Cartridge Valve

Manufacturer: MOOG

Type: Proportional Throttle Cartridge Valve

Model: XEB11483-000-01

Working pressure: 350 bar

Return Pressure: 210 bar

Temperature: -10 … 80 °C

Maximum flow at p=10 bar at cone 30: 250(l/min)

Voltage: 24 VDC

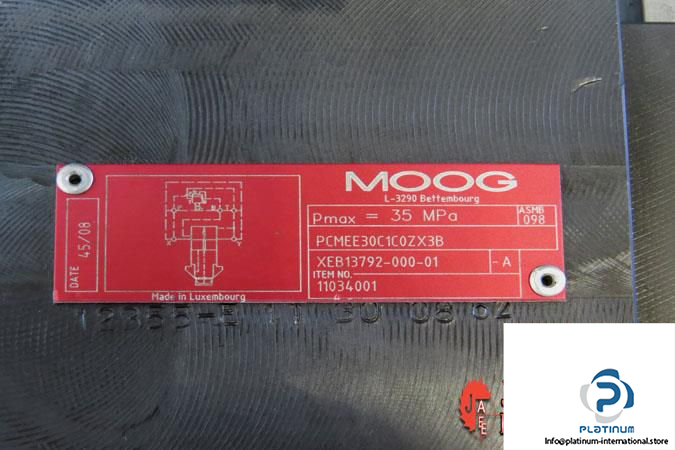

Attachment: MOOG XEB13792-000-01 High Flow Cartridge Valve

Type of Operating: Hexagonal Screw

Working Pressure: 350 bar

Temperature Range: -25 …. 80 °C

Internal Cartridge Diameter: 22 mm

Outside Cartridge Diameter: 40 mm

Viscosity Range:  2.8 …. 380 mm² • s^-1

Weight: 5.74 kg
