Motive 71B-4 Electric Motor
Used
In stock1 unitReady to ship
799,99$

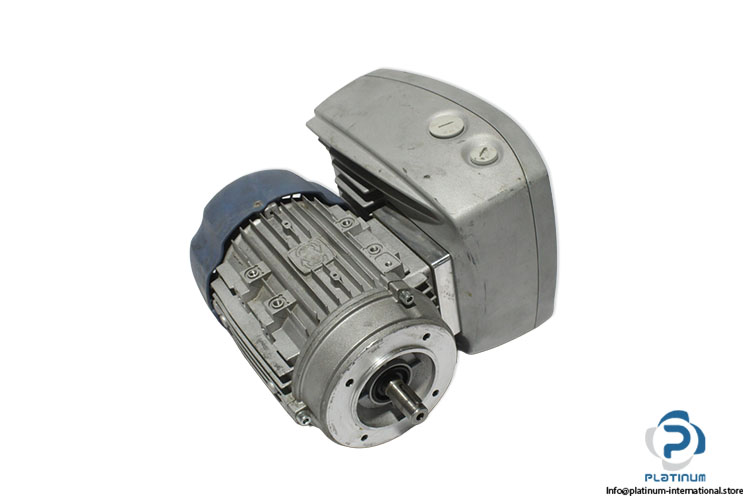

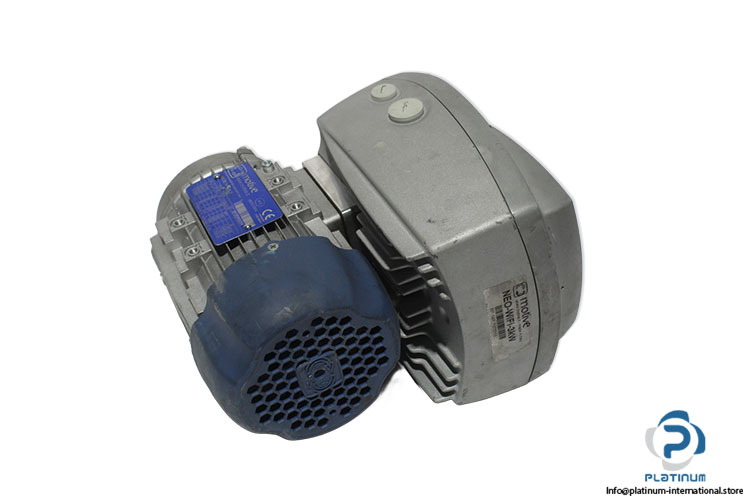

Electric Motor The MOTIVE 71B-4 is a high-efficiency three-phase electric motor supplied with the NEO-WI-FI-3 variable speed drive, providing reliable performance and precise speed control for industrial automation and power transmission applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

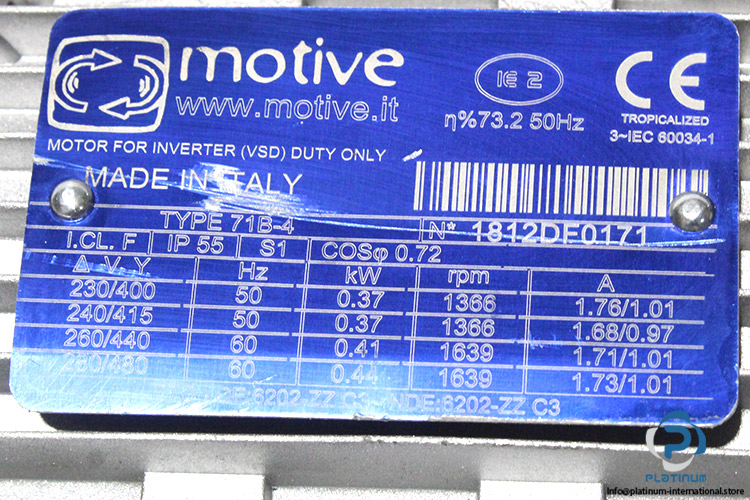

| Part No. | 1812DF0171 |
| Rated Power | 0.37-0.44 kW |
| Rated Voltage (50 Hz) | 230/400 / 240/415 V |
| Rated Speed | 1366 / 1639rpm |
| Frequency | 50 / 60 Hz |
| Power Factor | 0.72 |
| Protection Class (IP) | 55 |
| Insulation Class | F |
| Standard | IEC 60034-1 |
| Efficiency Class | IE2 (73.2% efficiency) |

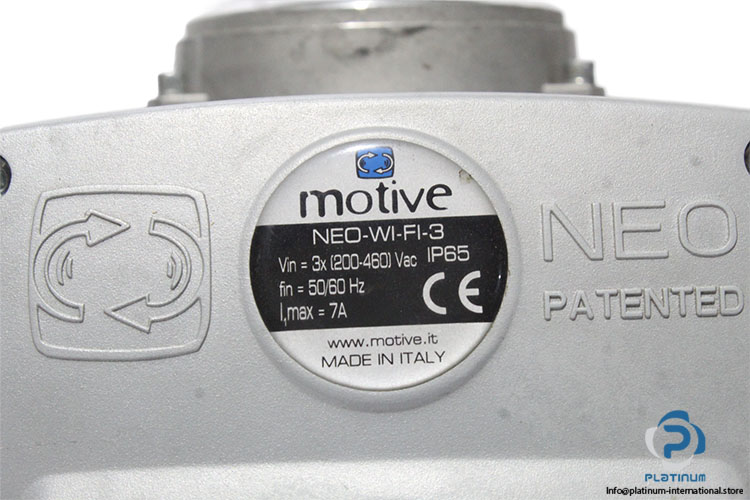

| Attached with | Motive NEO-WI-FI-3 variable speed drive (inverter) |

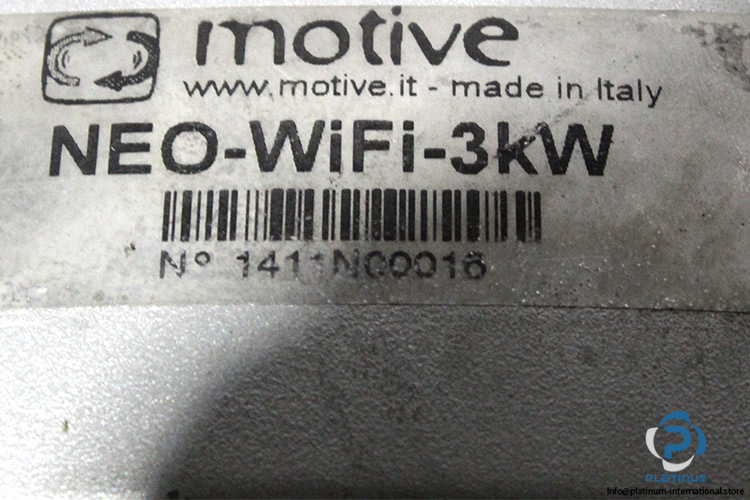

| Part No,inverter | 1411N00016 |
| Input Voltage | 3-phase, 3× (200-460) Vac |
| Input Frequency | 50/60 Hz |
| Maximum Current (I1max) | 7 A |
| Ingress Protection | IP65 (dust-tight and water-jet proof) |
| Certification | CE certified |
| Stock key | jo-004 |
| Condition | Used |
| SKU | 1100510 |
| Weight | 8,55 |
