Moxa EDS-608 With 2MSC/2TX 8-PORT Compact Modular Managed Ethernet Switch
New
In stock1 unitReady to ship
799,99$
Managed Ethernet Switch
The MOXA EDS-608 is an 8-port modular managed Ethernet switch with dual power inputs and IP30 protection. It supports flexible 10/100BaseT(X) and 100BaseFX configurations and includes a 2MSC/2TX Fast Ethernet module for enhanced connectivity.10/100BaseT(X)100BaseFX2MSC/2TX8-PortAutomationEDS-608EquipmentEthernetFastIndustrialIP30ManagedModularModuleMoxaNetworkSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

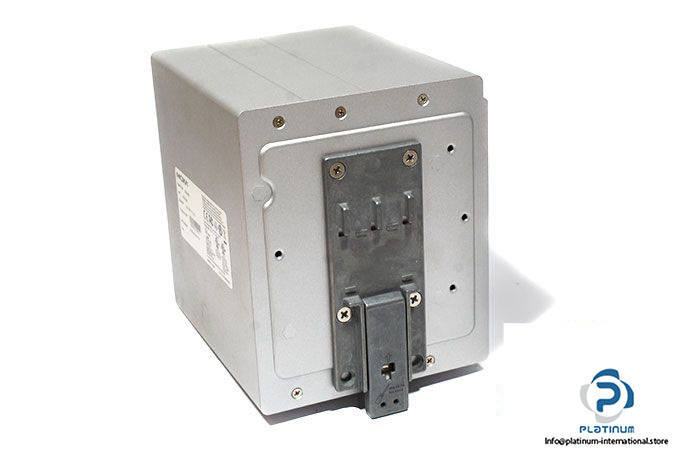

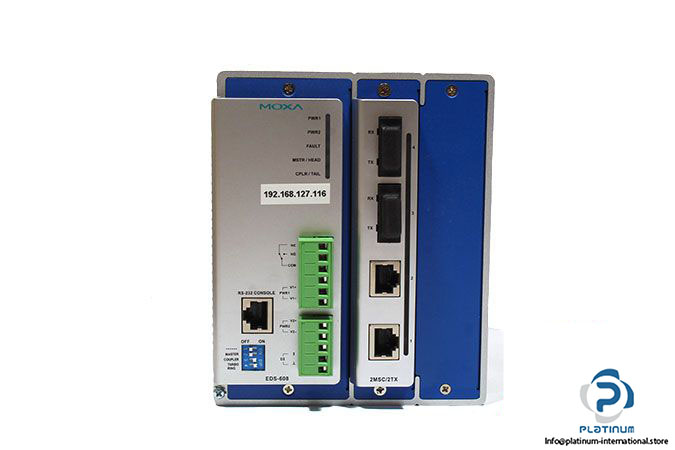

MOXA EDS-608 8-Port Compact Modular Managed Ethernet Switch
The MOXA EDS-608 is a compact, modular, and managed industrial Ethernet switch designed for reliable network performance in automation and control systems. With 8 ports and two modular slots for various 4-port interface modules, it provides flexible configuration options for both copper and fiber connections. Built with industrial-grade reliability, redundant power inputs, and IP30 protection, it ensures continuous operation even in demanding environments.
Manufacturer: MOXA
Type: 8-Port Compact Modular Managed Ethernet Switch
Model: EDS-608

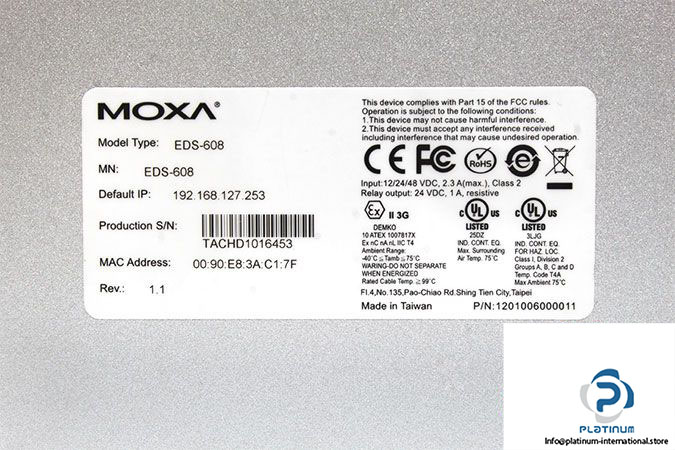

P/N: 1201006000011
Attached Module
| Connection | 1 Removable 6-Contact Terminal Block(s) |
| Input Voltage | 12/24/48 VDC, Redundant Dual Inputs |
| Layer | 2 |
| Total No. of Ports | 8 |
| Module Slots | 2 Slots for Any Combination of 4-Port Interface Modules |
| Supported Modules | Up to 8 10/100 Base T(X) and/or 100 Base FX Ports |

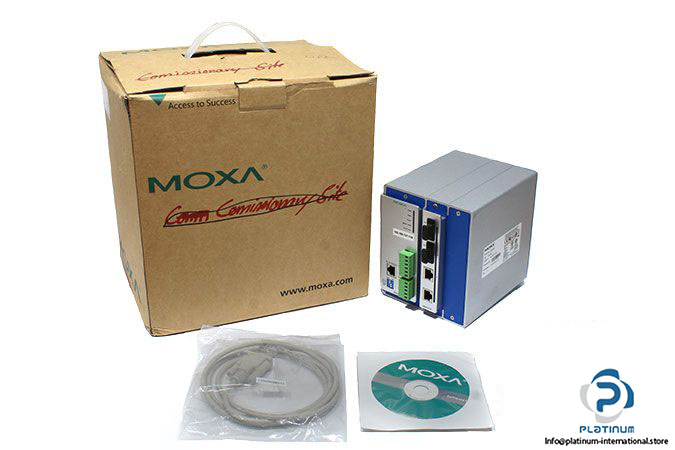

| Device | 1 × EDS-608 Series Switch |
| IP Rating | IP30 |
| Dimensions | 125 × 151 × 167.2 mm |
| Operating Temperature | 0 / 60°C |
| Attachment | MOXA 2MSC/2TX Fast Ethernet Interface Module |
| Interface Type | Fast Ethernet Module with 2 × 10/100BaseT(X) Ports (RJ45) |
| Fiber Connection | 2 × 100BaseFX Multi-Mode Ports (SC Connectors) |
| Operating Temperature | ˆ’40 / 75°C |
