MTL MTL 4031 Vibration Transducer Interface
Used
In stock1 unitReady to ship
133,33$
VIBRATION TRANSDUCER INTERFACE
Eaton MTL4031 vibration transducer interface for hazardous area sensors. Provides accurate signal transfer, 20“35 V DC supply, with high reliability for rotating machinery monitoring.AccuracyAreadcEatonHazardousHighIndustrialInterfaceMachinerymonitoringMTLMTL4031PoweredRotatingSensorSignalTransducerTransferVVibration
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

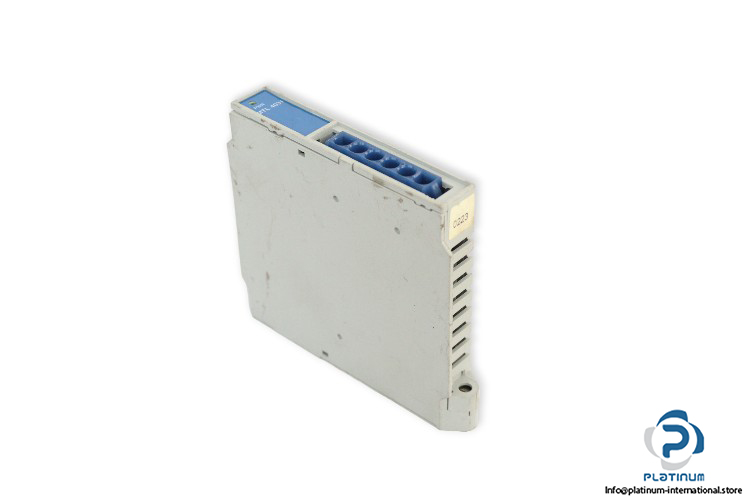

EATON MTL4031 VIBRATION TRANSDUCER INTERFACE
The Eaton MTL4031 Vibration Transducer Interface is designed for reliable signal transfer from vibration sensors mounted in hazardous areas. It provides safe and accurate connection into monitoring equipment for rotating machinery, ensuring precise measurement and protection in demanding industrial environments.
Manufacturer: Eaton MTL
Type: Vibration Transducer Interface
Model: MTL4031
For: Use with vibration sensors mounted in a hazardous area and connected into monitoring equipment for rotating machinery
No. Of Channels: 1
Supply Voltage Range Us: 20 / 35 V DC
AC Transfer Accuracy at 20°C:
| Signal Source | Zone 0, IIC, T4“6 hazardous area (if suitably certified); Div. 1, Group A hazardous location |
| Signal Range | Minimum -20 V, Maximum -0.5 V (for DC transfer error < ±100 mV) |
| Signal Input Impedance (terminals 5 and 6) | 10 kΩ - 1%, +2% |
| Signal Output Impedance (terminals 7 and 8) | <20 Ω |
| DC Transfer Accuracy at 20°C | < ±100 mV |
| 0Hz / 1 kHz | ±1% |
| 1 kHz / 10 kHz | “5% to +1% |
| 10 kHz / 20 kHz | “10% to +1% |
| Temperature Coefficient | 50 ppm/°C (10 to 65°C), 100 ppm/°C (“20 to 10°C) |
| Voltage Bandwidth | “3 dB at 43 kHz (typical) |
| Phase Delay | <14 µs (equivalent to 1° at 200 Hz, 3° at 600 Hz, 5° at 1 kHz, 50° at 10 kHz, 100° at 20 kHz) |

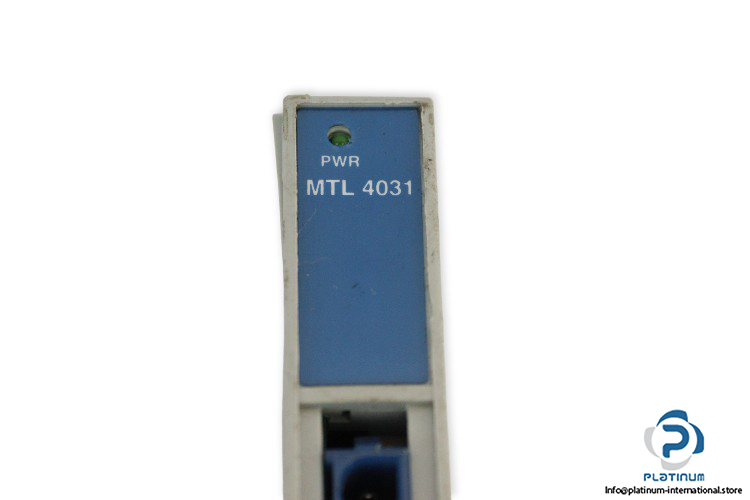

| LED Indicator | Green (power indication) |
| Power Requirement, Vs (with 22 mA transducer load) | 80 mA at 24 V DC, 88 mA at 20 V DC, 63 mA at 35 V DC |
| Power Dissipation | <1.7 W |
| Isolation Voltage | 250 V AC between input, power, and output circuits |
| Safety Description | Terminals 2“6: 26.6 V, 94 mA, 0.66 Ω; Terminals 5“6: non-energy-storing apparatus ‰¤1.2 V, ‰¤0.1 A, ‰¤20 µJ, ‰¤25 mW |
| Temperature | Max. 60°C |
