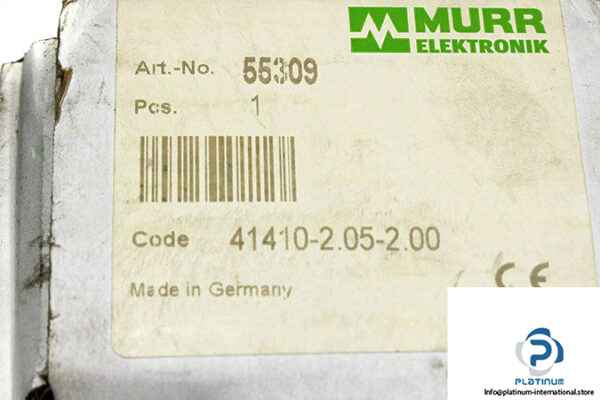

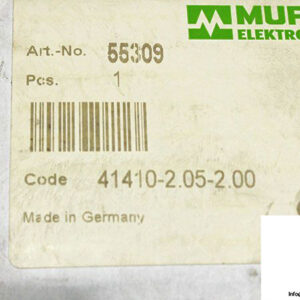

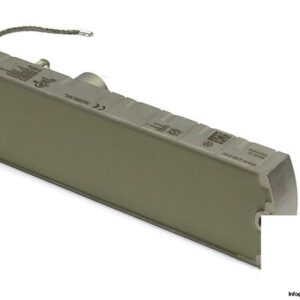

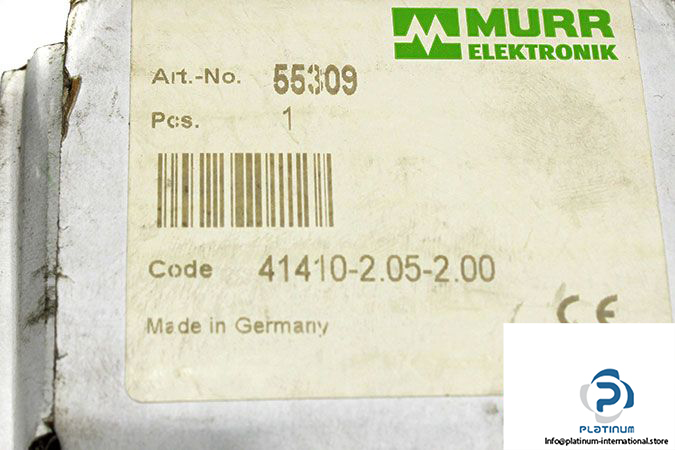

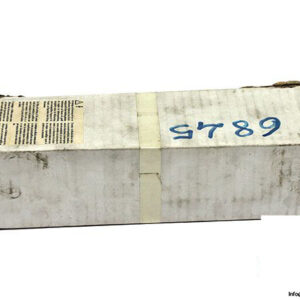

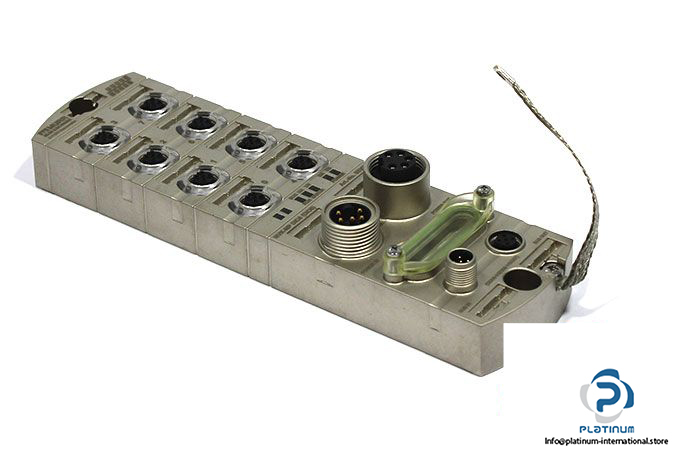

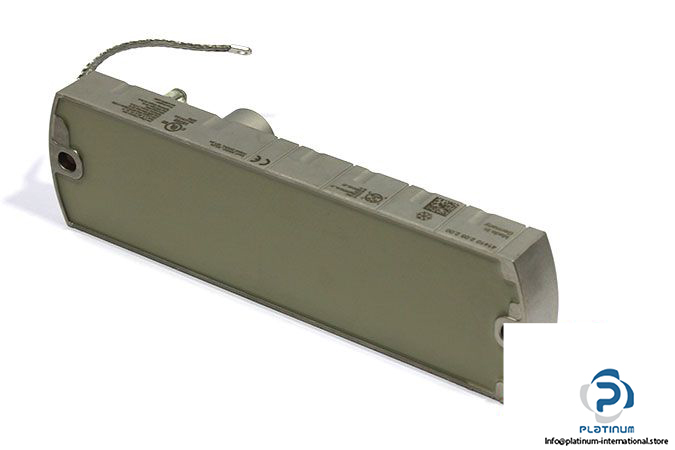

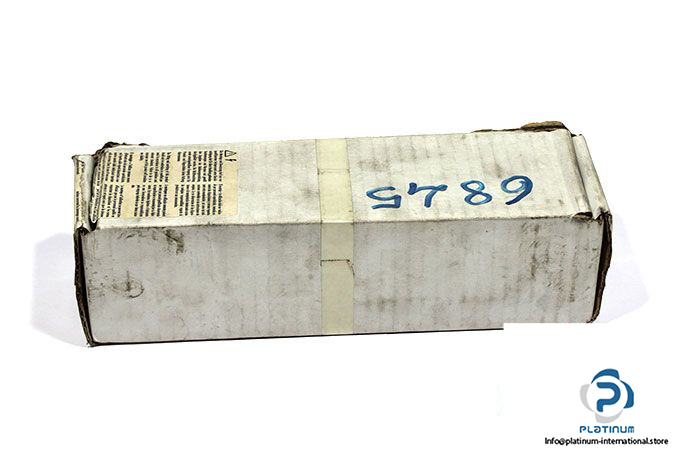

Murr 55309 MVK I/O Compact Module

Manufacturer: Murr

Type: MVK I/O Compact Module

Model: 55309

Code: 41410 2.05 2.00

Input Sensor Supply US: 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected

Input Type: for 3-wire sensors or mechanical switches, PNP

Output Actuator Supply UA: 24 V DC (EN 61131-2), max. 9 A

Output Switching Current Per Output: max. 1.6 A

Output Lamp Load: 10 W

Mounting Method: 2-Hole Screw Mounting

Fieldbus: PROFIBUS 12 Mbit/s; M12, B-coded

Sensor-System/Actuator Supply: 7/8″, 5-pole, 2× max. 9 A

I/O Ports: M12, 5-pole, A-coded

Temperature Range: -25…55 °C

Protection Class: IP67

Dimensions: 42 x 63 x 225 mm

Weight: 0.94 kg
