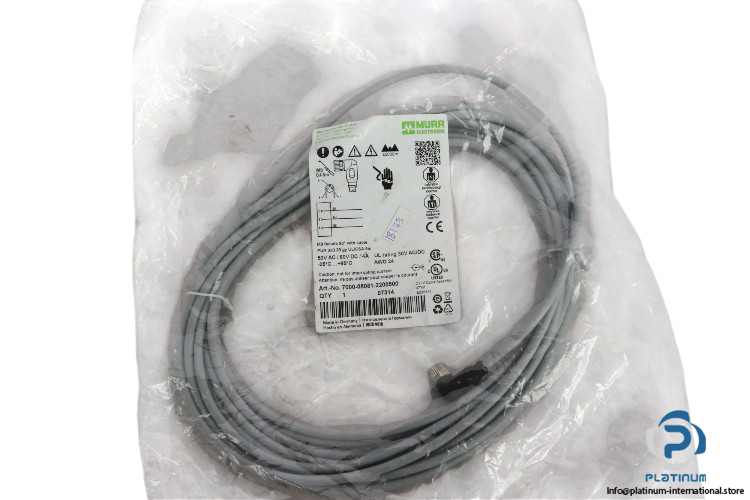

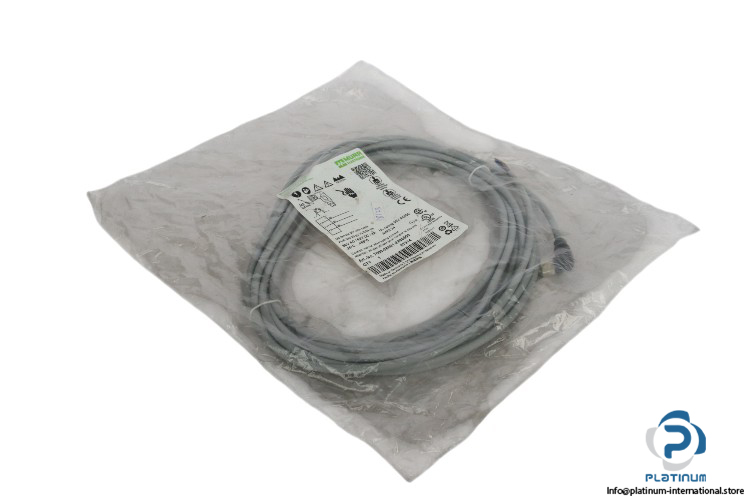

Murr 7000-08081-2200500 Connection Cable
Murr 7000080812200500 Connection Cable “ 5m, M8, 3-Pole, PUR Durable connection cable with **M8 x 1 thread**, **gold-plated contacts**, **5m length**, and **IP65/IP66K/IP67 protection**, designed for **industrial automation and sensor-actuator systems**.
Murr 7000080812200500 Connection Cable “ 5m, M8, 3-Pole, PUR
The Murr 7000080812200500 is a **high-quality connection cable**, engineered for **industrial automation and sensor-actuator applications**. With a **5m cable length**, **angled M8 threaded connection**, and **IP65/IP66K/IP67 protection**, this cable ensures **reliable electrical connections in harsh environments**.
Key Product Details:
Manufacturer: Murr
Type: Connection Cable
Art. No.: 7000080812200500
Order Code: 07314
Built for **rugged industrial environments**, the Murr 7000080812200500 connection cable provides **secure electrical connections, durability, and excellent resistance to dust and water**, making it **ideal for automation, sensors, actuators, and control systems**.
| Cable Length | 5 m |
| Operating Voltage AC Max. | 50 V |
| Operating Voltage DC Max. | 60 V |
| Current Operating Per Contact Max. | 4 A |
| Tightening Torque | 0.4 Nm |
| Mounting Method | Inserted, Screwed |
| Coating Contact | Gold Plated |
| Suitable for Corrugated Tube | 6.5 mm |
| Cable Outlet | Angled |
| Material Contact | Copper Alloy |
| Material | PUR (Polyurethane) |
| Number of Poles | 3 |
| Stripping Length | 20 mm |
| Mounting Set | M8 x 1 |
| Thread | M8 x 1 |
| Operating Temperature | -30 to 85 °C |
| Degree of Protection | IP65, IP66K, IP67 |
