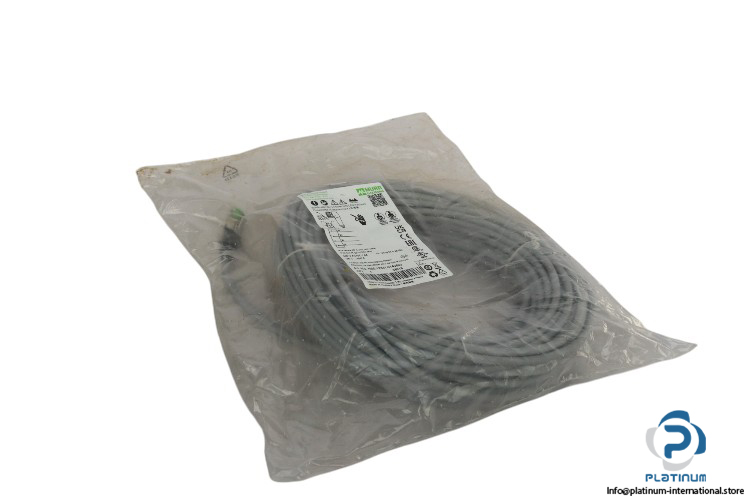

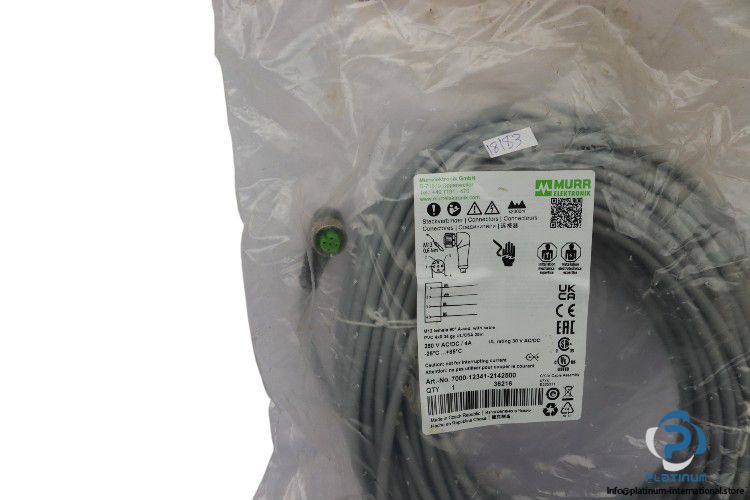

Murr 7000-12341-2142500 Sensor Cable
Sensor Cable
The MURR 7000-12341-2142500 Sensor Cable offers reliable electrical connections with 250 V AC/DC max voltage, 4 A current per contact, and IP65/IP66K/IP67 protection. Designed with gold-plated contacts and an angled cable outlet, it operates within a temperature range of -30°C to 85°C.MURR 7000-12341-2142500 Sensor Cable
The MURR 7000-12341-2142500 Sensor Cable is a high-performance cable designed to provide secure and reliable electrical connections in industrial automation systems. It supports a maximum operating voltage of 250 V AC/250 V DC and can handle up to 4 A per contact, making it suitable for a wide range of industrial applications that require efficient power and signal transmission.
Featuring a gold-plated contact coating, the cable ensures excellent electrical conductivity, providing optimal performance and durability. The M12 connector with an M12 x 1 thread offers a secure and robust connection. The cable is easy to install with an angled cable outlet, and the mounting method allows it to be inserted or screwed into place, ensuring flexibility and secure fitting.
The MURR sensor cable is built to withstand harsh environments, offering protection with an IP65, IP66K, and IP67 rating, making it resistant to dust, water, and other environmental elements. With a wide operating temperature range of -30°C to 85°C, it performs reliably in extreme conditions, ensuring that your automation system operates smoothly even in challenging environments.
Manufacturer: MURR
Type: Sensor Cable
Model: 7000-12341-2142500
The MURR 7000-12341-2142500 Sensor Cable offers robust and durable performance in a wide range of industrial applications, ensuring reliable power and signal transmission under challenging conditions.
| Operating Voltage Max. | 250 V AC / 250 V DC |
| Current Operating Per Contact Max. | 4 A |
| Stripping Length (Jacket) | 20 mm |
| Tightening Torque | 0.6 Nm |
| Mounting Method | Inserted, screwed |
| Coating Contact | Gold plated |
| Family Construction Form | M12 |
| Thread | M12 x 1 |
| Pollution Degree | 3 |
| Rated Surge Voltage | 2.5 kV |
| Suitable for Corrugated Tube (Internal Ø) | 10 mm |
| Cable Outlet | Angled |
| Material Contact | Copper alloy |
| Material | PUR |
| Number of Poles | 4 |
| Degree of Protection | IP65, IP66K, IP67 |
| Operating Temperature | -30 to 85 °C |
