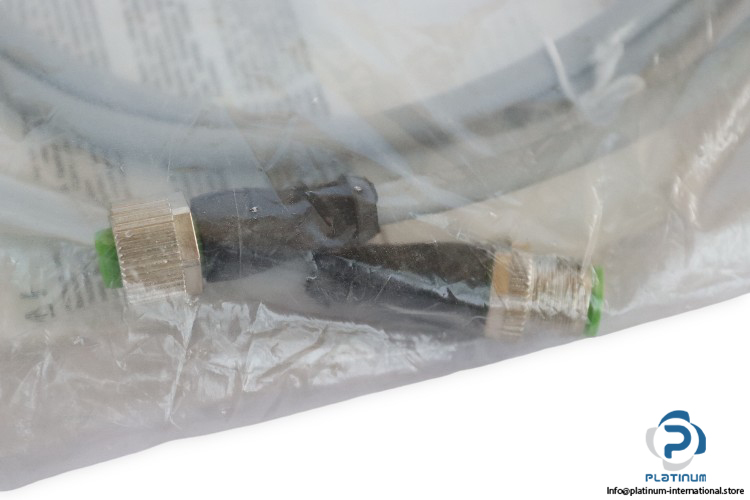

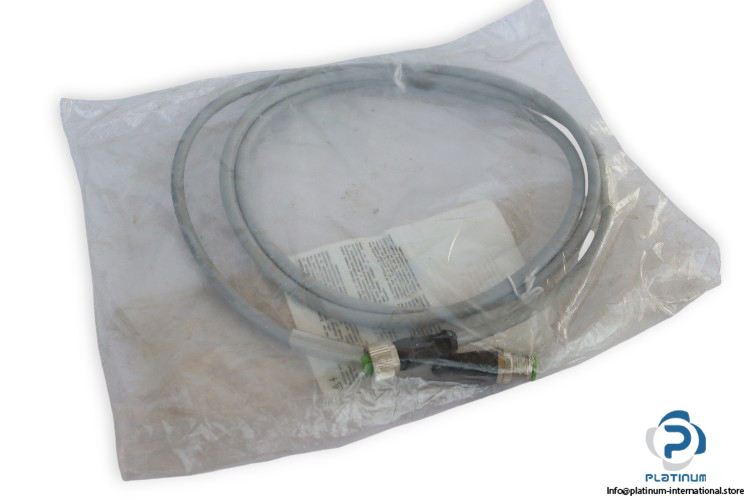

Murr 7000-40041-2250150 Connection Cable

Manufacturer: MURR
Type: CONNECTION CABLE
Model:  MSBL0-A-U225_1.5

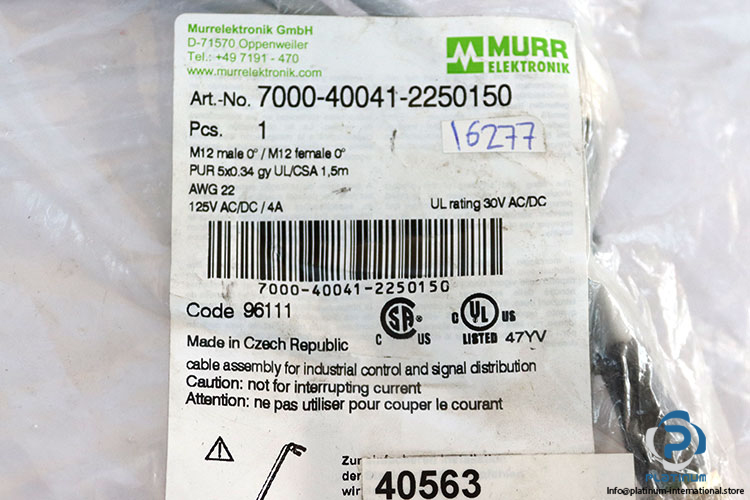

Part no.: 7000-40041-2250150

Cable length: 1,5 m

Side 1 & side 2:
Tightening torque: 0,6 Nm
Mounting method: inserted, screwed
Family construction form: M12
internal Diameter: 10 mm
Cable outlet: straight
No. of poles: 5
Degree of protection: IP65, IP66K, IP67
Material: PUR
Operating voltage max.: 125V AC, 125V DC
Current operating per contact max.: 4 A
Pollution Degree: 3
Rated surge voltage: 1,5 Kv
Material screw connection: Zinc die-casting
Operating temperature: -30 … 85 —¦C

Cable:
Material wire: Cu wire, bare
Nominal voltage UL: 300 V AC
