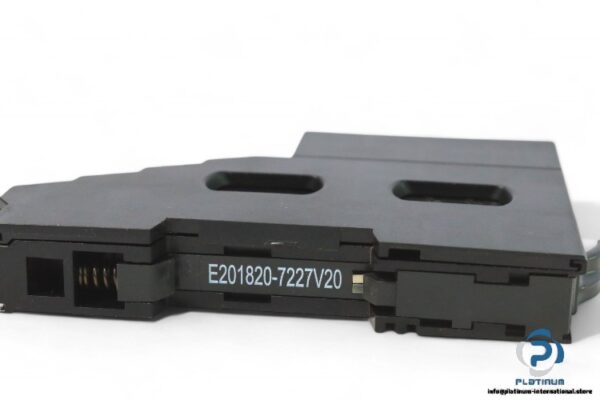

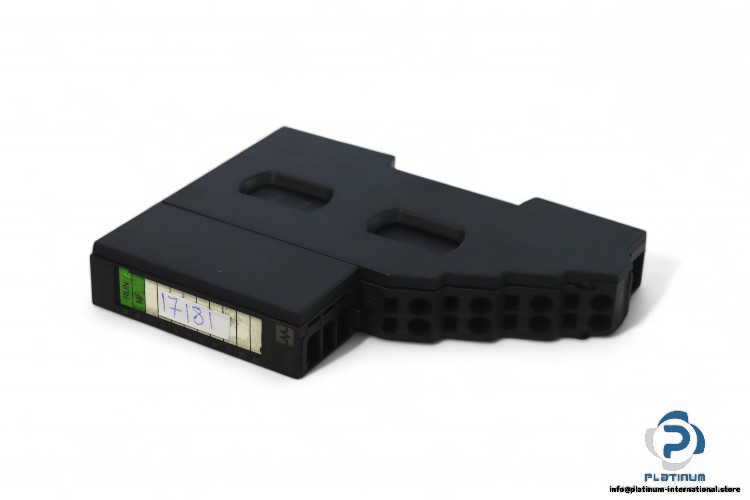

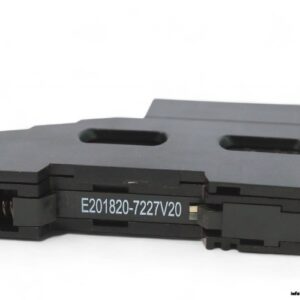

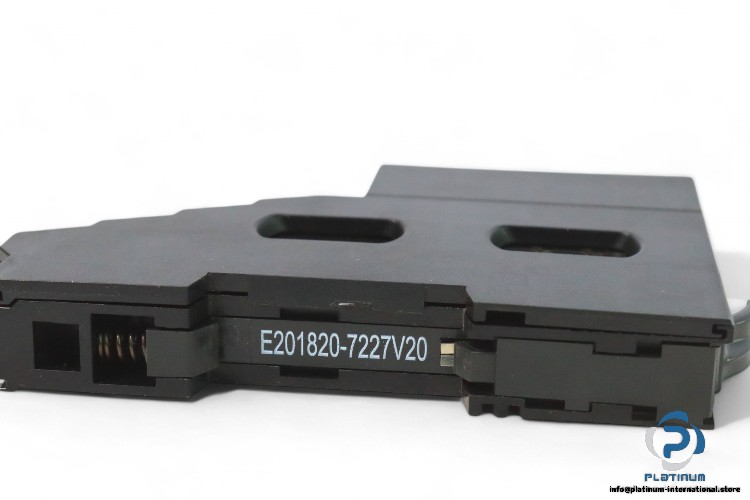

Murr DO8XDC24V Output Relay
Murr OUTPUT RELAY DO8XDC24V “ A reliable 8-pole relay with 24 V DC supply, 0.5 A output per pin, and 4 A total output. Compact black plastic housing and IP20 protection for use in industrial control and automation systems.
OUTPUT RELAY DO8XDC24V by Murr
The Murr OUTPUT RELAY DO8XDC24V (Model: Cube20S DO8 8x24VDC 0,5A) is a highly reliable safety relay designed for a range of industrial applications. With 8 poles and female connectors, it provides efficient switching for low-voltage systems. Featuring a black plastic housing, this relay is built for durability and is ideal for use in control circuits, automation, and safety systems.
Key features include:
- Supply Voltage: 24 V DC
- Current Consumption Max: 65 mA
- Output Current per Pin Max: 0.5 A
- Lamp Load: 5 W
- Total Current Outputs Max: 4 A
- Number of Poles: 8 (female connectors)
- Protection Class: IP20 (for internal use)
- Housing Color: Black
- Housing Material: Plastic
- Ambient Temperature: 0 / 60 °C
- Dimensions: 109 x 12.9 x 76.5 mm
With its compact size and excellent electrical load capabilities, this Murr OUTPUT RELAY is an essential component for industrial control panels, providing reliable performance in safety systems and low-voltage operations.
