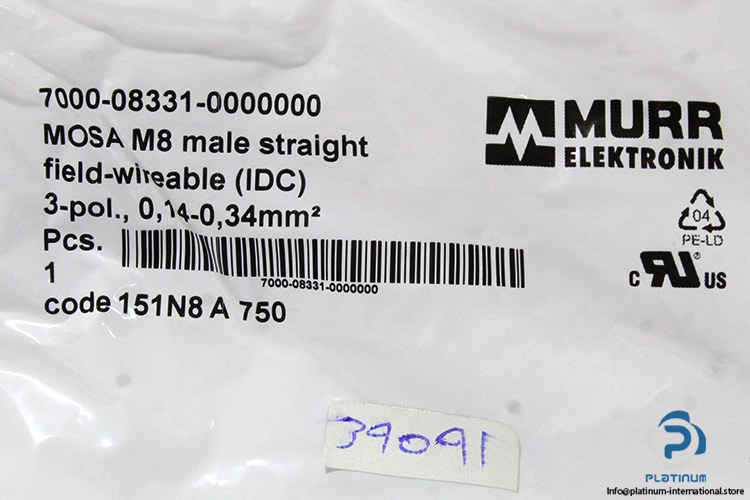

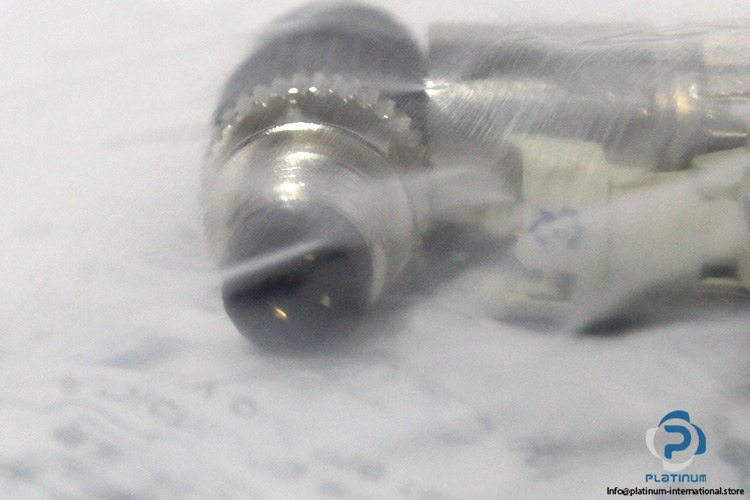

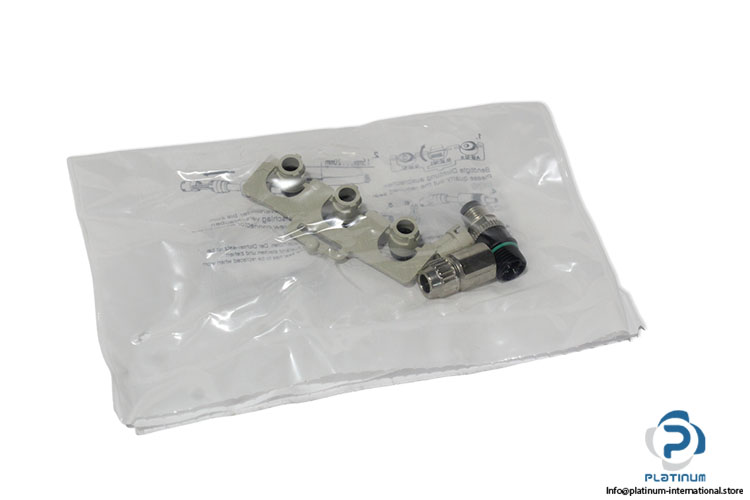

Murr Elektronik 7000-8331-0000000 A-Coded Connector
New
In stock1740 unitsReady to ship
A-Coded Connector MURR ELEKTRONIK M8 A-coded 3-pole male connector with field-wireable connection, 32 V AC/DC operating voltage, and up to 4 A per contact for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| code | 151N8 A 750 |
| Operating voltage | 32V AC/DC |
| Current operating per contact | max. 4 A |
| Connection cross section | 0,14 to 0,34 mm² |
| Family construction form- Side 1 | M8 |
| No. of poles - Side 1 | 3 |
| Coding- Side 1 | A |
| Gender- Side 1 | male |
| Threaded hole- Side 1 | M8 x 1 |
| Tightening torque- Side 1 | 0,4 Nm |
| Width across flats- Side 1 | SW9 |
| Cable outlet- Side 1 | straight |
| Mounting method- Side 2 | Field-wireable |
| Height | 40,8 mm |
| Width | 11,5 mm |
| Depth | 11,5 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range | 2,5 to 5,1 mm |
| Operating temperature | -25 to 85 °C |
| Condition | New |
| SKU | 1093677 |
| Weight | 0,01 |
