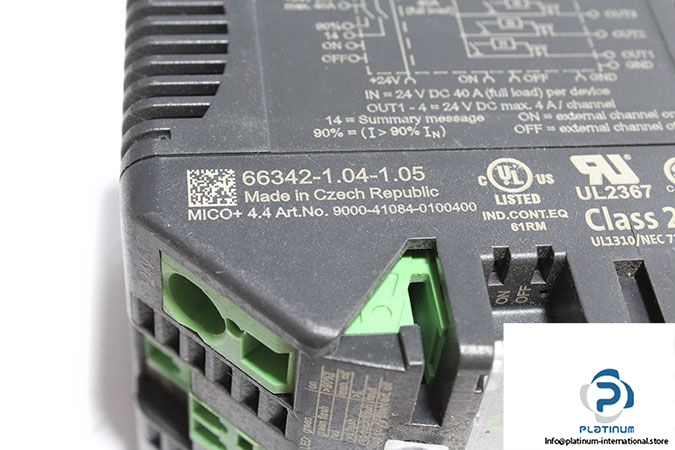

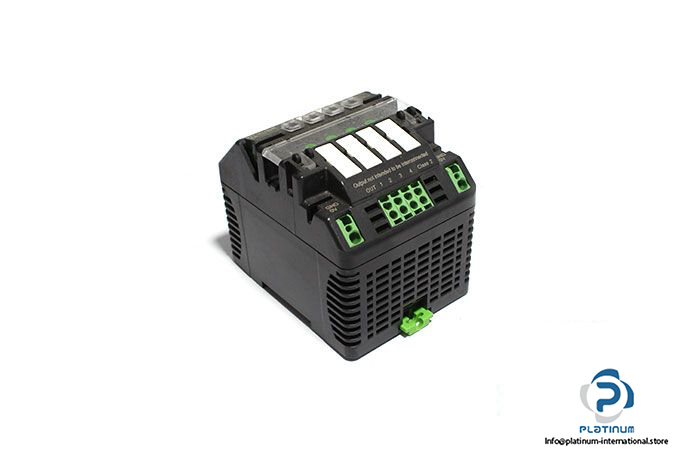

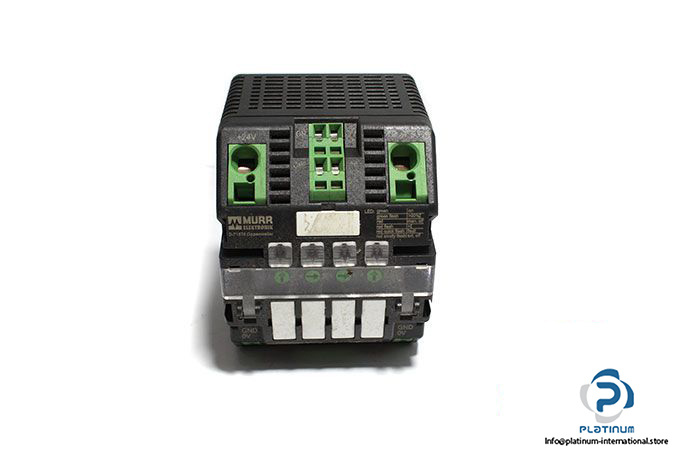

Murr Elektronik Mico+ 4.4 Electronic Circuit Protection, 4 Channels

Manufacturer: MURR ELEKTRONIK

Type: Electronic Circuit Protection, 4 Channels

Model: MICO+ 4.4

Article No.: 9000-41084-0100400

Operating Voltage: 24 V DC (18…30 V DC)

Current Adjustment: 1, 2, 3, 4 A

Control Inputs:

Input Voltage (ON): 10…30 V DC

Impulse Length (ON): min. 20 ms

Control Outputs:

Group Alarm Output: max. 20 mA; high: all channels ON; low: not all channels ON

Output Terminals: per output 2× 1.5 mm²

Dimensions: 90 X 70 X 80 mm

Temperature Range: 0 … +55 °C

Weight: 0.2 Kg
